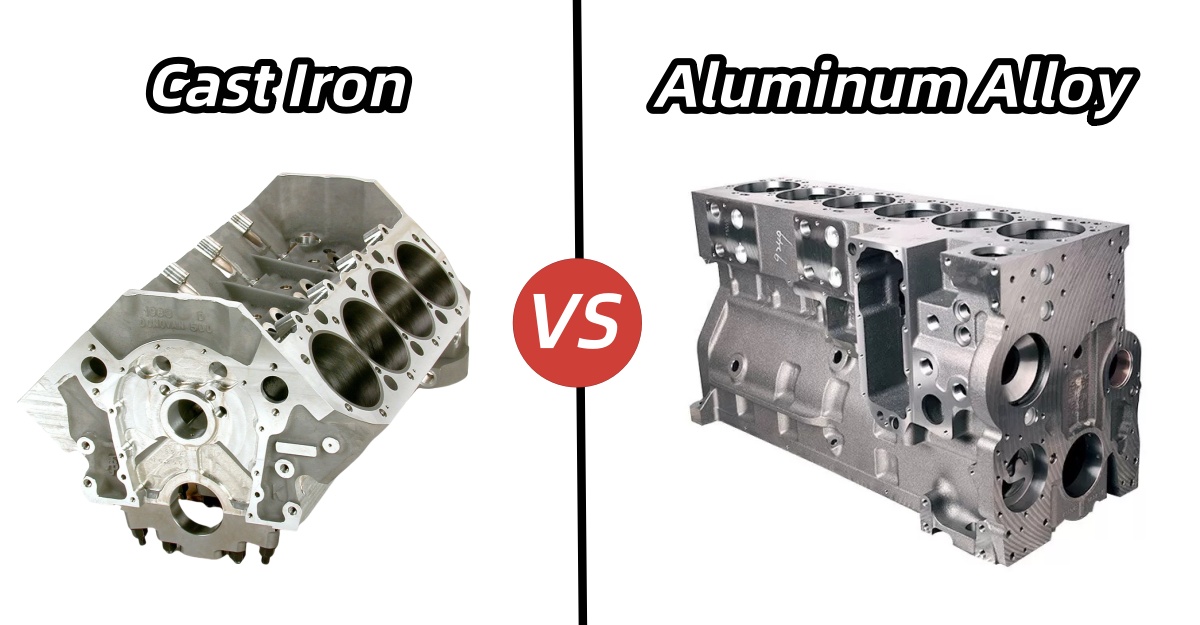

Which Material Prevails? Cast Iron vs Aluminum Alloy in Cummins Engine Blocks

Executive Summary

Cummins Inc. faces critical material engineering decisions when designing engine blocks. While cast iron (predominantly gray iron and CGI) dominates heavy-duty applications, aluminum alloys have gained traction in light/mid-range segments. This analysis examines the thermodynamic, structural, and economic implications of both materials in modern diesel engine design.

1. Cast Iron Engine Blocks: The Foundation of Heavy-Duty Reliability

Core Advantages

• Structural Integrity:
  Gray iron (GJL250+) offers unmatched compressive strength (>800 MPa) and damping capacity, essential for engines exceeding 400 hp and 2,000 N·m torque (e.g., Cummins X15 series).

• Thermal Stability:
  Low thermal expansion coefficient (11–14 μm/m·°C) minimizes piston-to-bore clearance changes during transient operations, reducing blow-by and oil consumption.

• Wear Resistance:
  Natural lubricity of graphite flakes reduces scuffing risk with minimal surface treatments.

Critical Limitations

• Mass Penalty:
  Density of 7.1 g/cm³ increases vehicle curb weight by 150–300 kg, impacting fuel efficiency by 5–7% in Class 8 trucks.

• Thermal Inertia:
  Low thermal conductivity (46 W/m·K) delays warm-up, increasing cold-start emissions (HC/CO up 15–20% in FTP cycles).

2. Aluminum Alloy Blocks: Lightweighting Revolution

Performance Benefits

• Mass Optimization:
  A319/A356 alloys (2.7 g/cm³) enable 25–40% weight savings vs. iron. In Cummins B6.7 engines, this reduces mass by 68 kg, improving payload capacity.

• Enhanced Thermal Efficiency:
  High thermal conductivity (96–130 W/m·K) accelerates coolant heat rejection, permitting higher BMEP (up to 25 bar) without pre-ignition.

• Manufacturing Flexibility:
  Superior castability allows complex water jackets and integrated features, reducing part count.

Technical Barriers

• Material Reinforcement Requirements:
  Must use one of:

• Pressed-in ductile iron liners (adds 0.8–1.2 kg/cylinder)

• Nikasil electroplated bores ($300–500/engine cost premium)

• Hyperutectic Al-Si alloys (e.g., A390 with 17% Si)

• Fatigue Vulnerability:
  80–100 MPa lower high-cycle fatigue strength vs. iron necessitates reinforced bulkheads and main caps.

• Corrosion Management:
  Electrochemical reactions with biodiesel (RME) require nano-ceramic coatings or ion-implantation.

3. Advanced Materials: Bridging the Gap

Compacted Graphite Iron (CGI)

• Hybrid Solution:
  Tensile strength of 450 MPa (vs. 250 for gray iron) with 10% weight reduction. Used in Cummins’ 6.7L Turbo Diesel.

• Manufacturing Challenge:
  Requires controlled sulfur/magnesium treatment and thermal management during casting.

Material Property Benchmark

4. Application-Specific Design Philosophy at Cummins

• Cast Iron Applications:

• Mining/Off-highway engines (QSK60)

• 10L displacement platforms

• Engines with peak cylinder pressure >200 ba

• Aluminum Alloy Applications:

• On-highway mid-range (L9, B6.7)

• Natural gas engines (L9N)

• Hybrid-electric powertrains

• CGI Applications:
  High-output 4–7L engines requiring 180–210 bar peak pressure

5. Total Cost of Ownership (TCO) Analysis

6. Future Material Roadmap

• Nano-reinforced Aluminum:
  SiC/TiB₂ composites targeting 350 MPa UTS for linerless blocks

• Additive Manufacturing:
  Locally reinforced critical zones (e.g., main journals) with steel alloys

• Corrosion Mitigation:
  Plasma electrolytic oxidation (PEO) creating 150–200 μm Al₂O₃ layers

Conclusion

Cummins'material strategy reflects application-driven pragmatism:

• Cast iron remains irreplaceable for ultra-high mechanical loads where engine mass is secondary to longevity.

• Aluminum alloys dominate where regulatory pressure (CO₂/tons-mile) mandates lightweighting.

• CGI emerges as the compromise solution for performance-centric platforms.

The evolution toward 55% thermal efficiency (DOE SuperTruck III goals) will accelerate aluminum and composite adoption, though cast iron maintains strategic importance in Cummins’ industrial portfolio.

*References: Cummins Material Specifications (MS-7000), SAE Technical Paper 2021-01-0654, ASM Handbook Vol. 2B, Journal of Materials Processing Tech (2023)*
