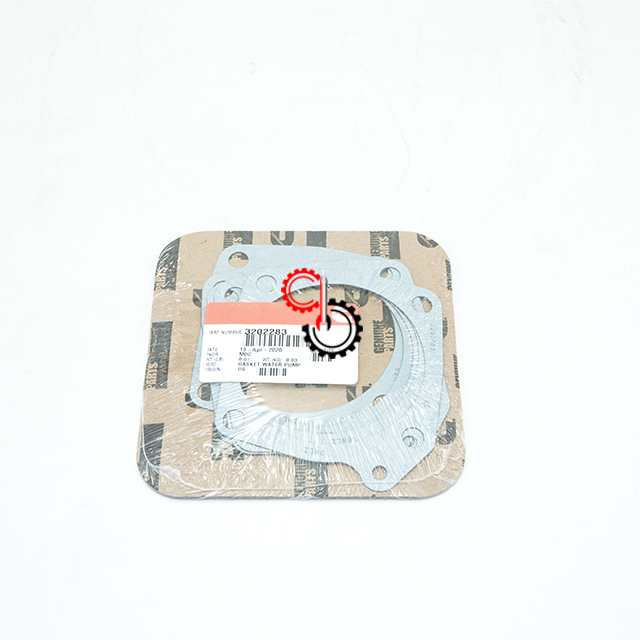

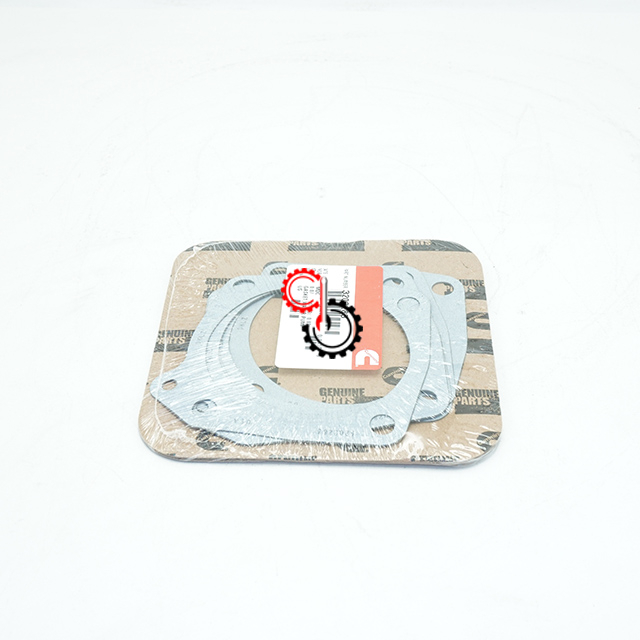

K19 QSK Cummins Water Pump Gasket 3202283

  • 3202283

  • Cummins

Supersession Part Number:
3202283
205233
Size:
13cm*12cm*1cm
weigt:
0.02kg
Availability:
Quantity:
Inquire Add to Basket

PDF Export

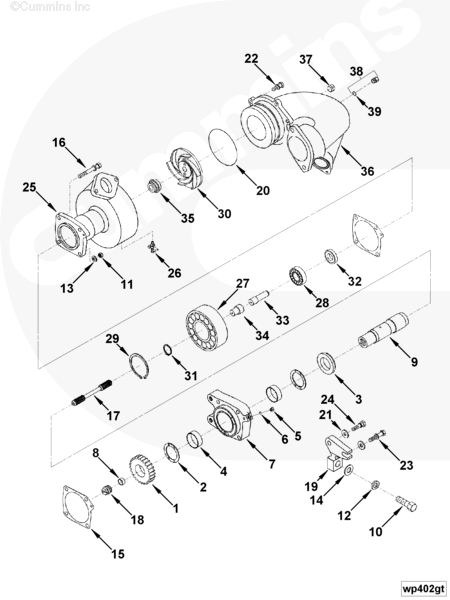

Electronic   Parts Catalog - Option details
motor K19, KTA19   G CMEICS K123, KTA19GC, KTA19GC CM558, QSK19 CM2150   MCRS, QSK19 CM2350 K105, QSK19 CM500, QSK19 CM850   MCRS, QSK19G

3202283

Cart Ref No Part Number Part   Description


WP4021-06 water   pump

3410054 Water   Pump Shaft 1
1 4953334 Water   Pump Gear 1
2 3026556 Thrust   Bearing 2
3 3034721 Shaft   Retainer 1

3086177 Water   Pump Support 1
4 205156 Bushings 2
5 3056003 Threaded   Plug 1
6 3056415 O-Ring   Seal 1
7 4922207 Water   Pump Support 1

3026564 Water   Pump Shaft 1
8 205498 Solid   Plug 1
9 3025887 Water   Pump Shaft 1

3088377 Water   Mounting Pump 1
10 S   103 A Hexagon   Head Cap Screw 1
11 S   205 Regular   Hexagon Nut 1
12 S   603 Lock   Washer 1
13 S   604 Lock   Washer 1
14 S   658 Plain   Washer 1
15 3202283 Water   Pump Gasket 1
16 3012476 Captive   Washer Cap Screw 3
17 3202007 Water   Pump Shaft 1
15 3202283 Water   Pump Gasket 1
18 3200968 Threaded   Plug 1

3967920 Pump   , Water Top Level Assembly 1
19 3036096 Water   Pump Brace 1
20 145623 O-Ring   Seal 1
21 3005594 Plain   Washer 2
22 3010596 Captive   Washer Cap Screw 3
23 3012472 Captive   Washer Cap Screw 1
24 3012474 Captive   Washer Cap Screw 1

4081095 water   pump 1
25 4081087 Water   Pump Body 1
26 S   962 E Draincock 1
27 S   16002 Ball   Bearing 1
28 S   16069 Ball   Bearing 1
29 70183 Retaining   Ring 1
30 205243 Water   Pump Impeller 1
31 205258 Retaining   Ring 1
32 206948 Oil   Seal 1

3042827 Water   Pump Shaft 1
33 205158 Water   Pump Shaft 1
34 3040833 Water   Pump Shaft 1
35 3609826 Water   Pump Seal 1

3967919 Water   inlet connection 1
36 3967792 Water   inlet connection 1
37 4931643 Pipe   Plug 1

3629114 Threaded   Plug 2
38 3629113 Threaded   Plug 1
39 3037236 O-Ring   Seal 1

3804573 Water   Pump Repair Kit A/R
15 3202283 Water   Pump Gasket 2
20 145623 O-Ring   Seal 1
26 S   962 E Draincock 1
27 S   16002 Ball   Bearing 1
28 S   16069 Ball   Bearing 1
29 70183 Retaining   Ring 1
31 205258 Retaining   Ring 1
32 206948 Oil   Seal 1

3042827 Water   Pump Shaft 1
33 205158 Water   Pump Shaft 1
34 3040833 Water   Pump Shaft 1

3071085 Water   Pump Seal 1
