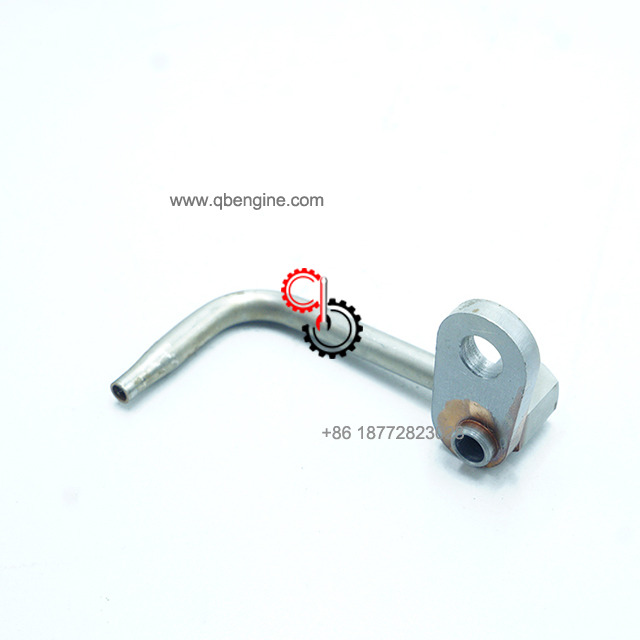

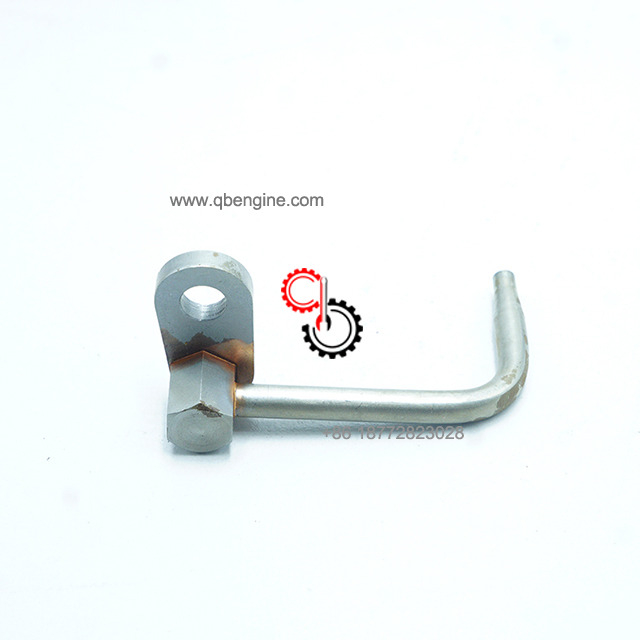

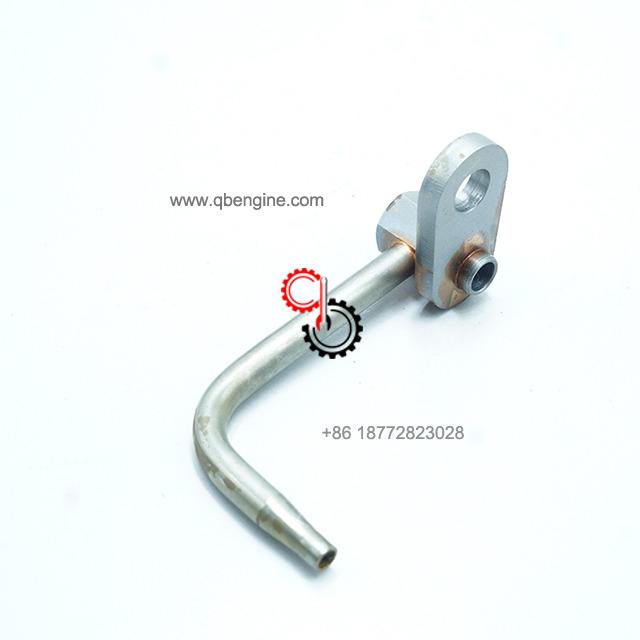

Cummins QSK23 QSK78 Piston Cooling Nozzle 4006218

  • QSK23 QSK78

  • Cummins

  • 4006218

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins QSK23 QSK78 Piston Cooling Nozzle 4006218 In Stock

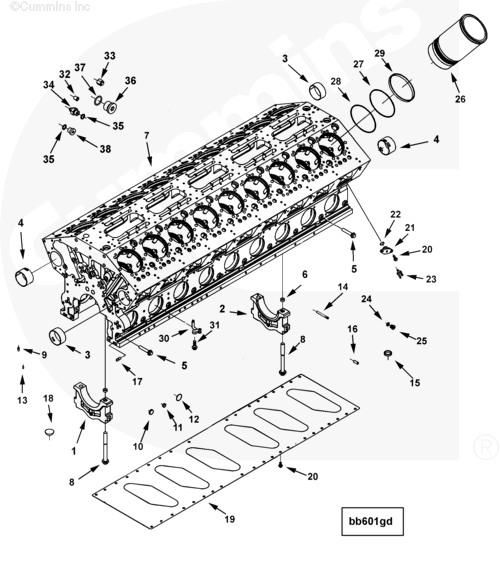

Electronic   Parts Catalog - Option Detail
Cummins  Engines HSK78G CM2358 K129G, QSK78 CM2250 K104, QSK78 CM2350 K126, QSK78 CM500

4006218

Ref No Part Number Part Description Required Remarks

BB6767-01 Cylinder Block
Cylinder Block

4373035 Cylinder Block 1
1 3642431 Main Bearing Cap 9
2 4373046 Main Bearing Cap 1
3 4007741 Bushing 2
4 3642401 Bushing 18
5 3089192 Hexagon Flange Head Cap Screw 20
6 3089201 Ring Dowel 18
7 4007168 Cylinder Block 1
8 3332234 Fracture Resistant Screw 20
9 68445 Groove Pin 36
10 4006411 Expansion Plug 4
11 3082438 Ring Dowel 36
12 3629168 Expansion Plug 9
13 69519 Pin Dowel 2
14 3640776 Tamper Proof Seal 26
15 4017621 Expansion Plug 3
16 4006293 Pin Dowel 36
17 4016701 Diamond Dowel 4
18 4017240 Expansion Plug 22
19 4006350 Cylinder Block Stiffener Plate 1
20 3903990 Hexagon Flange Head Cap Screw 51 M10 X 1.50 X 20.
21 4080519 O-Ring Adapter 4
22 3632840 O-Ring Seal 4
23 3629497 Draincock 4

3678873 Threaded Plug 8 M18 X 1.5 X 19.5.
24 3678786 O-Ring Seal 8 M18.
25 3678791 Threaded Plug 8 M18 X 1.5 X 19.5.

4025383 Liner Kit 18
26 4006177 Cylinder Liner 18
27 4006179 Oil Seal 18
28 4006297 Oil Seal 18
29 4007709 Liner Seal Ring 18
30 4006218 Piston Cooling Nozzle 36
31 3093923 Hexagon Flange Head Cap Screw 36 M8 X 1.25 X 14.


SHIPMENT CHARACTERISTICS
Length * Width * Height 7cm*3cm*4cm
Weight 0.045KG
