Cummins QSK50 Temperature Sensor 4327199

  • QSK50

  • Cummins

  • 4327199

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins QSK50 Temperature Sensor 4327199 In Stock

Electronic Parts Catalog - Option Detail
Cummins Engines G50, K50, K50-DPM, QSK50 CM2150 K107, QSK50 CM2150 MCRS, QSK50 CM2350 K108, QSK50 CM850 MCRS, QSK50 DF CM850/CM2150 MCRS

4327199

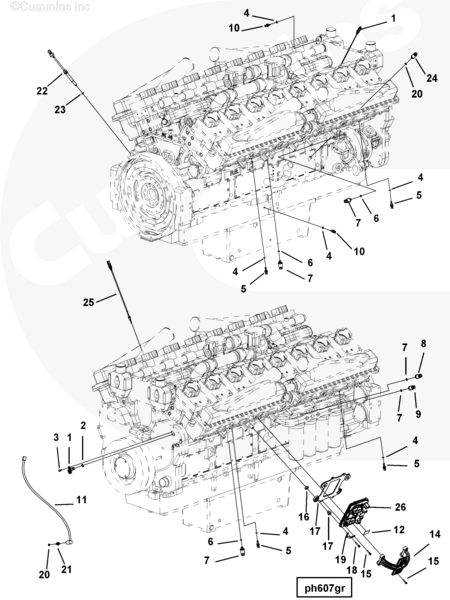

Ref No Part Number Part Description Required Remarks

PH6881-08 Engine Control Module

1 2872279 Position Sensor 1 Cam Or Crank.
2 4928599 O-Ring Seal 1
3 3015283 Captive Washer Cap Screw 1 5/16 - 18 x 3/4 in.

3085185 Temperature Sensor 4 Intake Manifold
4 3037537 O-Ring Seal 1
5 3085198 Temperature Sensor 1 Intake Manifold

3408600 Pressure Sensor 2 Intake Manifold Or Coolant **
6 3330159 O-Ring Seal 1
7 3408601 Pressure Sensor 1
8 3408602 Pressure Sensor 1 Oil Or Oil Rifle.

3408651 Pressure Sensor 1 Pre/Post Oil Filter.
9 3408652 Pressure Sensor 1

3630568
1

3865312 Temperature Sensor 1 Coolant Or Oil *.
10 3865323 Temperature Sensor 1 Coolant Or Oil *.
11 3639665 Wiring Harness 1

3639821
1

3408600 Pressure Sensor 1 Intake Manifold Or Coolant **
12 3645413 Dataplate 1
13 3648720 Electronic Control Module Bracket 1
14 3648776 Protective Cover 1

3865312 Temperature Sensor 1 Coolant Or Oil *.
15 3900632 Hexagon Flange Head Cap Screw 8 M8 X 1.25 X 35.
16 3949567 Vibration Isolator 4
17 3949568 Vibration Isolator 4
18 3963450 Hexagon Flange Head Cap Screw 4
19 3977357 Ground Wire 1

4088832 Temperature Sensor 1 Coolant or Intake Manifold
20 4010519 O-Ring Seal 1
21 4088833 Temperature Sensor 1 Coolant or Intake Manifold
22 4307466 Position Sensor 1 Camshaft/Crankshaft.
23 4903568 O-Ring Seal 1
24 4954405 Pressure Sensor 1 Crankcase.
20 4010519 O-Ring Seal 1
25 4327199 Temperature Sensor 16 Egt.
26 5317106 Electronic Control Module 1 Recon Equivalent 5317107 NX

SHIPMENT CHARACTERISTICS
Length * Width * Height 5cm*5.75cm*0.75cm
Weight 0.12KG


Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
