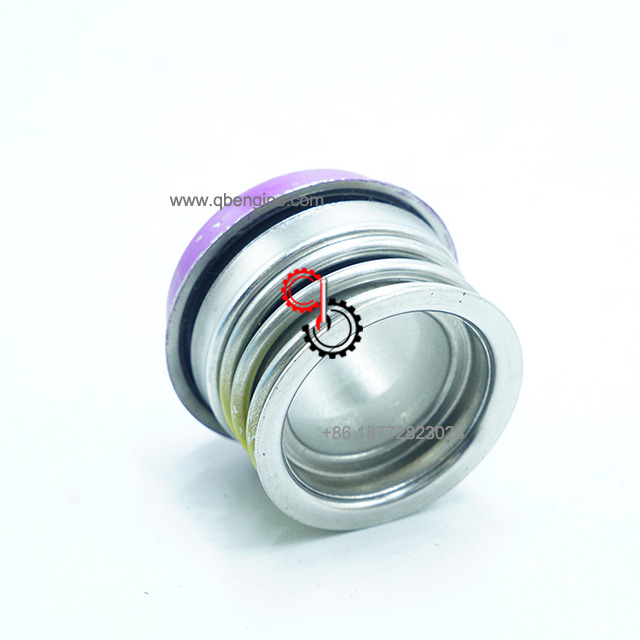

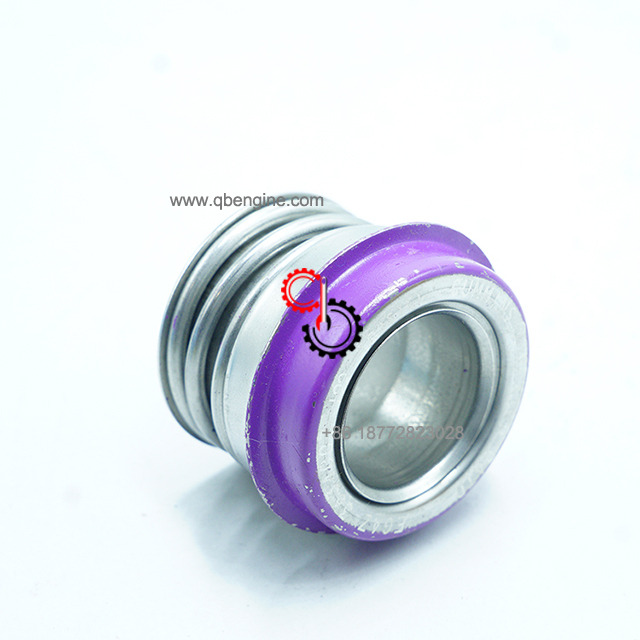

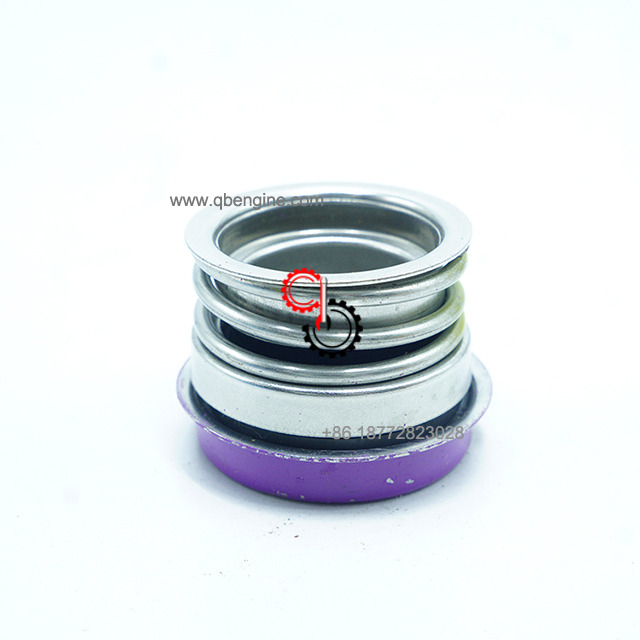

Top Quality Cummins Mechanical Motor Stainless Steel Water Pump Seal 3634007

Name: Top Quality Cummins Mechanical Motor Stainless Steel Water Pump Seal 3634007
Brand: Cummins
Rating: 5.0 (62 reviews)

Cummins Water Pump Seal 3634007

Model:
Original
Brand:
Cummins
Code:
3634007
Delivery Period:
1-7 days
Package:
Genuine Original package or Ne
Warranty:
6 Months

Availability:

Quantity:



Inquire Add to Basket PDF Export

Product Description

Cummins Water Pump Seal 3634007 In Stock

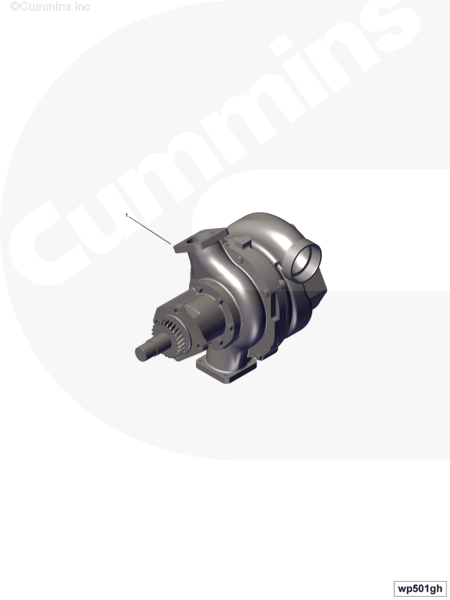

Electronic Parts Catalog - Option Detail
Cummins Engines	HSK78G CM2358 K129G, QSK78 CM2250 K104, QSK78 CM2350 K126, QSK78 CM500

3634007

Ref No	Part Number	Part Description	Required	Remarks
	WP6012-11	Water Pump		Water pump
1	3647028	Water Pump	1
	S 16054	Ball Bearing	1
	S 16069	Ball Bearing	1
	70183	Retaining Ring	1
	206195	Spline Coupling Sleeve	1
	206196	Retaining Ring	1
	3004259	Expansion Plug	1
	3030487	Bearing Spacer	1
	3172019	Water Pump Impeller	1
	3175573	Retaining Ring	1
	3634007	Water Pump Seal	1
	3638582	Draincock	1
	3643960	Oil Seal	1
	3643961	Water Pump Shaft	1
	3645598	Water Pump Body	1
	3678921	Threaded Plug	1	M14 X 1.5 X 16.
	3678912	O-Ring Seal	1
	3678922	Threaded Plug	1
	206457	O-Ring Seal	1	Item Not Shown In Art.
	3007512	O-Ring Seal	1	Item Not Shown In Art.
	3089016	Hexagon Flange Head Cap Screw	7	Item Not Shown In Art.
	3089023	Threaded Plug	1	Item Not Shown In Art.
	3089261	Water Pump Gasket	1	Item Not Shown In Art.
	3089262	Water Pump Gasket	1	Item Not Shown In Art.
	3089731	Water Inlet Connection	1	Item Not Shown In Art.
	3332299	Water Pump Support Gasket	1	Item Not Shown In Art.
	3647120	Water Pump Support	1	Item Not Shown In Art.
	3089412	Orifice Plug	1
	3332037	Water Pump Shaft	1
	3089413	Shaft Retainer	1
	3332036	Water Pump Shaft	1
	3634019	Expansion Plug	1
	3646082	Accessory Drive Gear	1
	3678923	Threaded Plug	1
	3678924	Threaded Plug	1
	3678925	O-Ring Seal	1
	4066278	Water Pump Support	1
	3089409	Bushing	2
	4066279	Water Pump Support	1
	3678610	Threaded Plug	2	Item Not Shown In Art.
	3678602	Threaded Plug	1
	3678603	O-Ring Seal	1
	3678873	Threaded Plug	1	Item Not Shown In Art.
	3678786	O-Ring Seal	1
	3678791	Threaded Plug	1
	3901249	Hexagon Flange Head Cap Screw	1	M12 X 1.75 X 25
				Item Not Shown In Art.
	3903112	Hexagon Flange Head Cap Screw	2	Item Not Shown In Art.
	3903464	Hexagon Flange Head Cap Screw	5	M10 X 1.50 X 40
				Item Not Shown In Art.
	3903990	Hexagon Flange Head Cap Screw	2	Item Not Shown In Art.
	3910495	Hexagon Flange Head Cap Screw	4	Item Not Shown In Art.
	4007215	Connection Bracket	1	Item Not Shown In Art.
	4007216	Connection Bracket	1	Item Not Shown In Art.
	4016906	O-Ring Adapter	1	Item Not Shown In Art.

SHIPMENT CHARACTERISTICS
Length * Width * Height	7cm6cm4cm
Weight	0.091KG

Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.

For us to provide you with the correct information, please have your Cummins Engine Part Number orEngine Serial Number ready, so that we can give you the best price possible along with our expertise.
