Cummins / Cummins Parts / Air Compressor, Water Pump, Oil Pump, Vacuum Pump, EGR / Reliable Cummins 3024991 Governor Weight Carrier 3024991 Diesel Engine Parts
Reliable Cummins 3024991 Governor Weight Carrier 3024991 Diesel Engine Parts
Reliable Cummins 3024991 Governor Weight Carrier 3024991 Diesel Engine Parts Reliable Cummins 3024991 Governor Weight Carrier 3024991 Diesel Engine Parts
Reliable Cummins 3024991 Governor Weight Carrier 3024991 Diesel Engine Parts Reliable Cummins 3024991 Governor Weight Carrier 3024991 Diesel Engine Parts
Reliable Cummins 3024991 Governor Weight Carrier 3024991 Diesel Engine Parts Reliable Cummins 3024991 Governor Weight Carrier 3024991 Diesel Engine Parts

loading

Reliable Cummins 3024991 Governor Weight Carrier 3024991 Diesel Engine Parts

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

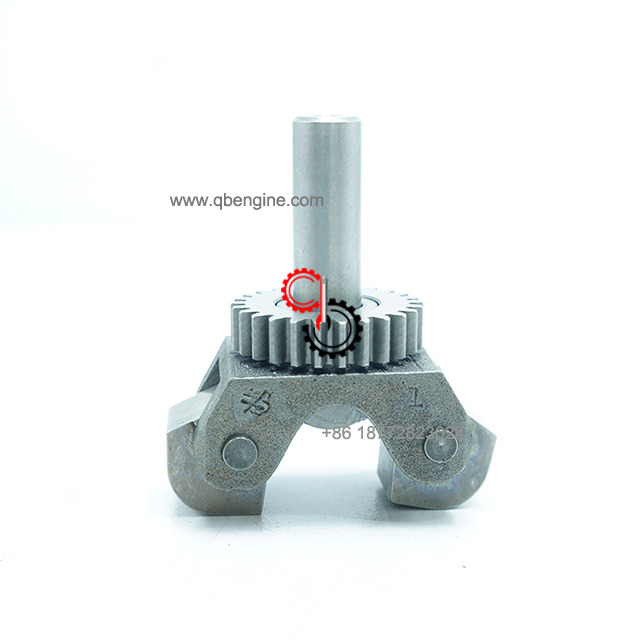

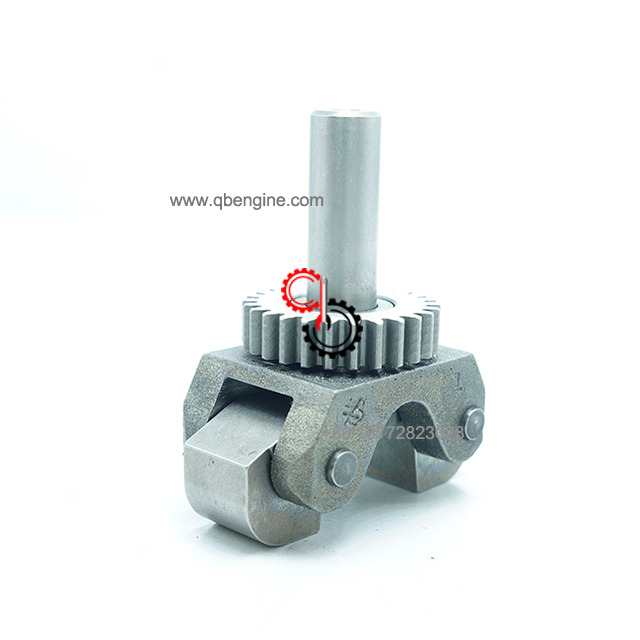

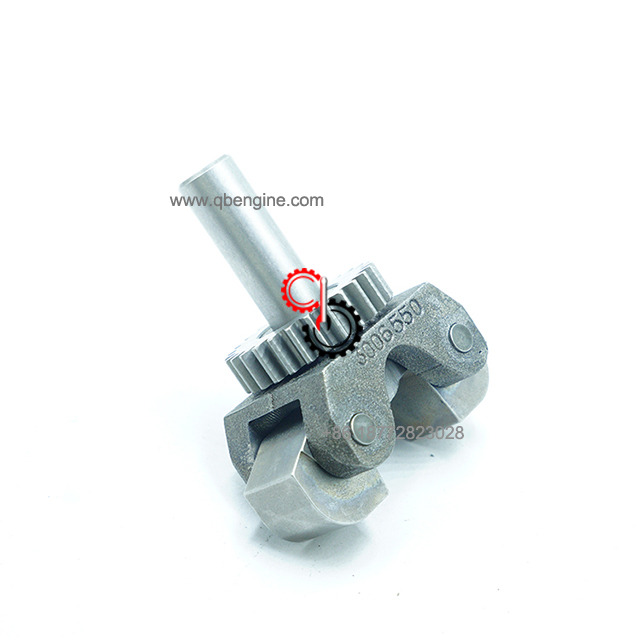

Cummins Governor Weight Carrier 3024991

  • Original

  • Cummins

  • 3024991

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins Governor Weight Carrier 3024991 In Stock

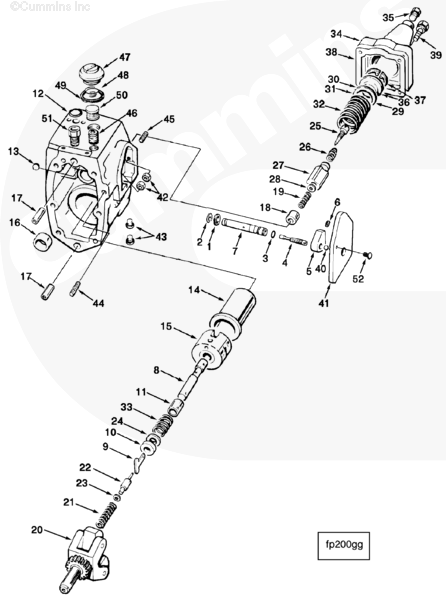

Electronic  Parts Catalog - Option Detail
Cummins  Engines ISM CM570, ISM CM570/870, ISM CM875, ISM CM876, ISM CM876 E, ISM11 CM876 M103, ISM11 CM876 SN, M11 CELECT, M11 CELECT PLUS, M11 MECHANICAL, QSM11 CM570, QSM11 CM876

3024991

Ref No Part Number Part Description Required Remarks

3059646 Fuel Pump Body 1

AR41010 Throttle Shaft 1
1 100478 O-Ring Seal 1
2 163945 Retaining Ring 1
3 213768 O-Ring Seal 1
4 3076040 Fuel Pump Adjusting Screw 1 1/4 - 28 x 1 3/4 inch

3006430 Throttle Shaft 1
5 3006343 Throttle Lever Stop 1
6 3006344 Socket Set Screw 2 1/4 - 28 x 3/8 inch
7 3046680 Throttle Shaft 1

3040761 Governor Plunger

8 3040751 Governor Plunger 1
9 70690 Governor Plunger Driver 1
10 3027633 Thrust Bearing 1
11 3048557 Bearing Spacer 1
12 3068981 Fuel Pump Body 1 -3069001
13 214139 Ball Plug 2
14 3036970 Spring Pack Housing 1
15 3058555 Governor Barrel 1
17 118227 Ring Dowel 2
18 140417 Idle Spring Plunger 1
19 3018767 Compression Spring 1
20 3024991 Governor Weight Carrier 1 Recon equivalent 3024991 RX
21 143854 Compression Spring 1
22 144178 Governor Weight Assist Plunger 1
23 144179 Shim 7
24 101841 Shim 1 .005 in.
24 101842 Shim 1 .010 in.
24 101843 Shim 1 .020 in.
25 70716 Knurled Screw 1 #12 - 28 x 1 1/4 inch
26 3032014 Compression Spring 1
27 3036473 Idle Spring Plunger Guide 1
28 70715 Plain Washer 1 1/8 inch
29 70717 Fuel Pump Governor Shim 6 .021 inch
30 70717 A Fuel Pump Governor Shim 1 .010 inch
31 70717 B Fuel Pump Governor Shim 1 .0060 inch
31 179068 Shim 1 .007 inch
31 189800 Fuel Pump Governor Shim 1 .007 inch


SHIPMENT CHARACTERISTICS
Length * Width * Height 9cm*7cm*7cm
Weight 0.277KG


Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.



Previous:
Next:
3024991 governor weight carrier governor weight carrier 3024991 cummins 3024991 cummins governor weight carrier load-bearing brackets
