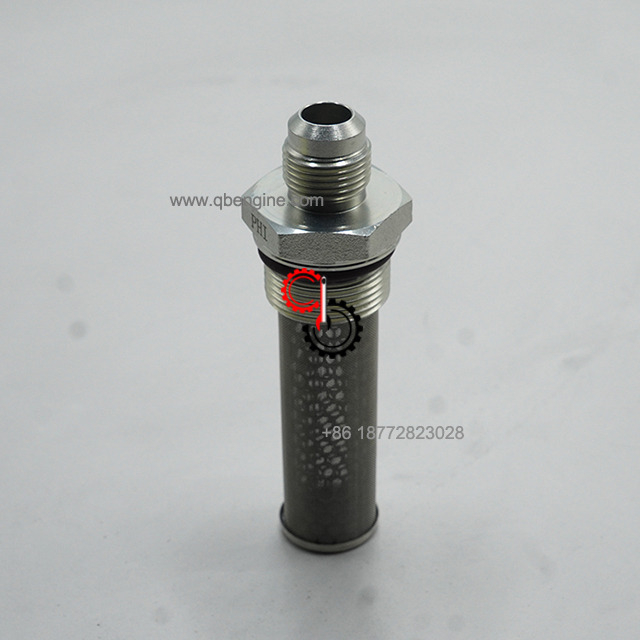

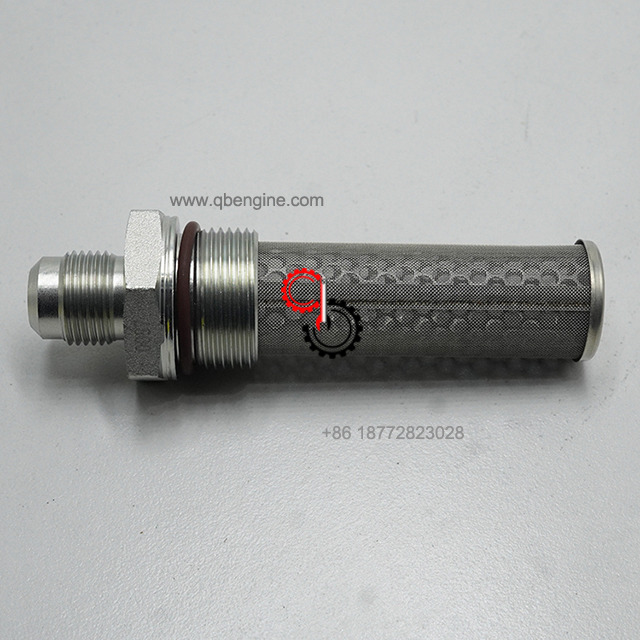

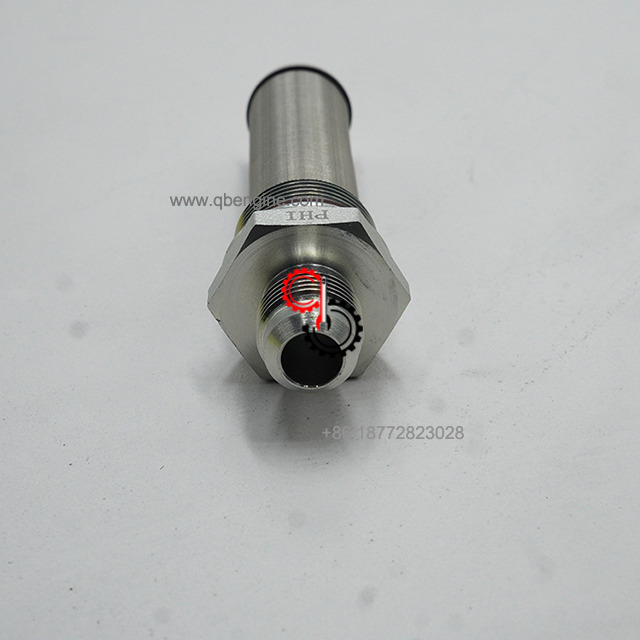

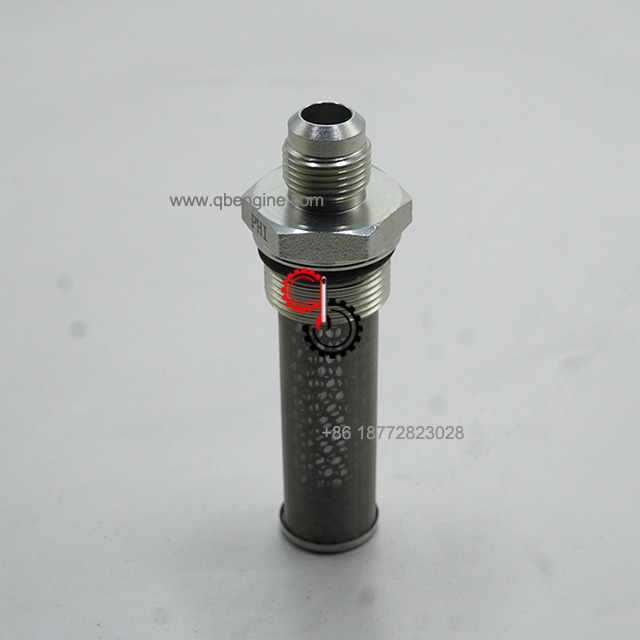

Cummins Filter Screen 4076598

  • original

  • Cummins

  • 4076598

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins Filter Screen 4076598 In Stock

Electronic  Parts Catalog - Option Detail
Cummins  Engines ISX CM570, ISX CM870, ISX CM871, ISX CM871 E, ISX15 CM2250, ISX15 CM2250 SN, ISX15 CM2350 X101, ISX15 CM2350 X129, ISZ13 CM2150 SN, QSX11.9 CM2250 ECF, QSX15 CM2250, QSX15 CM2250 ECF, QSX15 CM2250 X115, QSX15 CM2350 X105, QSX15 CM2350 X106, QSX15 CM2350 X118, QSX15 CM2350 X130, QSX15 CM2350 X131, QSX15 CM570, QSZ13 CM2150 Z101, QSZ13 CM2150 Z102, R2.8 CM2220 R101B, X12 CM2350 X119B, X15 CM2350 X114B, X15 CM2350 X116B, X15 CM2350 X125M, X15 CM2350 X132C

4076598

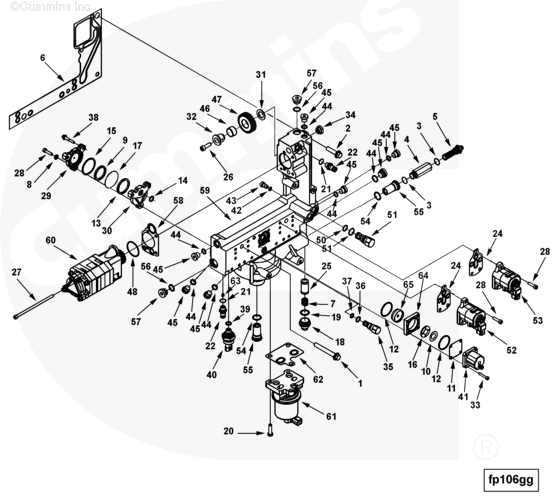

Ref No Part Number Part Description Required Remarks

FP10228 Fuel Pump

1 3900679 Hexagon Flange Head Cap Screw 2 M10 X 1.50 X 80.
2 3903464 Hexagon Flange Head Cap Screw 3 M10 X 1.50 X 40.

4025634 Filter Housing 1

4076588 Filter Housing 1
3 3678846 O-Ring Seal 1
4 4076589 Filter Housing 1

4076598 Filter Screen 1
5 4076591 Filter Screen 1
6 4076587 Fuel Control Housing Gasket 1

4076600 Fuel Control Module 1
7 70700 Compression Spring 1
8 70704 Plain Washer 2 1/4 in.
9 100099 Rectangular Ring Seal 2
10 129768 Valve Spring 1
11 129839 Shut-Off Valve Shield 1
12 129888 Rectangular Ring Seal 2
13 139988 Rectangular Ring Seal 2
14 151900 Rectangular Ring Seal 2
15 160514 Plain Washer 2 1 11/16 in.
16 196057 Valve Disc 1
17 202897 Fuel Pump Damper Diaphragm 2
18 3014575 Fuel Pump Filter Cap 1
19 3021123 O-Ring Seal 1
20 3025806 Socket Head Cap Screw 3 M8 X 1.25 X 30.

3042619 Coupling Nipple 2
21 3037537 O-Ring Seal 2
22 3042620 Coupling Nipple 2
23


Item not on this version
24 4902789 Actuator Gasket 4
25 3090769 Filter Screen 1
26 3330019 Socket Head Cap Screw 1 M8 X 1.25 X 25
27 3330022 Socket Head Cap Screw 4 M6 X 1.00 X 140
28 3330069 Socket Head Cap Screw 14
29 3330651 Fuel Pump Damper Cover 2
30 3330652 Fuel Pump Damper Body 2
31 3330719 Thrust Bearing Plate 1
32 3330720 Idler Shaft 1
33 3330753 Socket Head Cap Screw 4
34 3331275 Shaft Retainer 1

3348322 Pressure Regulator Valve 1
35 3348323 Pressure Regulator Valve 1
36 3348703 O-Ring Seal 1
37 3867640 O-Ring Seal 1
38 3397506 Hexagon Flange Head Cap Screw 4 M6 X 1.00 X 35.

3408377 Pressure Sensor 1 Fuel.

3330202 O-Ring Seal 1
40 3408378 Pressure Sensor 1
41 3098354 Solenoid 1 Reference 4061693 FSOV Kit
42 3678925 O-Ring Seal
M10.
43 4076594 Check Valve


3678921 Threaded Plug 6 M14 X 1.5 X 16
44 3678912 O-Ring Seal 6 M14
45 3678922 Threaded Plug 6 M14 X 1.5 X 16

3867093 Idler Gear 1
46 3330639 Bushing 1
47 3867094 Idler Gear 1
48 3867481 O-Ring Seal 1

4001926 Pressure Regulator Valve 1
49 3330478 O-Ring Seal 1
50 3867641 O-Ring Seal 1
51 4001925 Pressure Regulator Valve 1
52 4002070 Timing Actuator 2
53 4002071 Metering Actuator 2

4010077 Check Valve 2
54 3089240 O-Ring Seal 1 M22
55 4010078 Check Valve 1

4010349 Threaded Plug 3
56 3678786 O-Ring Seal 3 M18
57 4010348 Threaded Plug 3
58 4062005 Support Gasket 1
59 4076572 Fuel Control Housing 1
60 4076574 Gear Fuel Pump 1
61 4076581 Fuel Pump 1
62 4076586 Fuel Pump Gasket 1

4076593 Check Valve 1
63 4076599 Orifice Plug 1
64 4088273 Actuator Housing 1
65 4088274 Actuator Disc 1

4025255 Kit , Ifsm Service / Repair 1

S 2286 Drive Screw 2 3/16 in.

105375 Nameplate 1

3042543 O-Ring Seal 1

3044297 O-Ring Seal 13

3045986 O-Ring Seal 4

3084539 O-Ring Seal 1

3089392 O-Ring Seal 1

3347832 Grommet Seal 4

3679139 O-Ring Seal 1

3918190 Sealing Washer 2 10mm.

3922794 O-Ring Seal 2

4076585 Cover Plate 1

4076597 Fuel Control Housing


SHIPMENT CHARACTERISTICS
Length * Width * Height 16cm*5cm*5cm
Weight 0.232KG
