Cummins / Products / Premium Road Cummins M11 ISM Crankshaft Seal Kit 4089544 Engine Spare Parts

Premium Road Cummins M11 ISM Crankshaft Seal Kit 4089544 Engine Spare Parts

Name: Premium Road Cummins M11 ISM Crankshaft Seal Kit 4089544 Engine Spare Parts
Brand: Cummins
Rating: 5.0 (46 reviews)

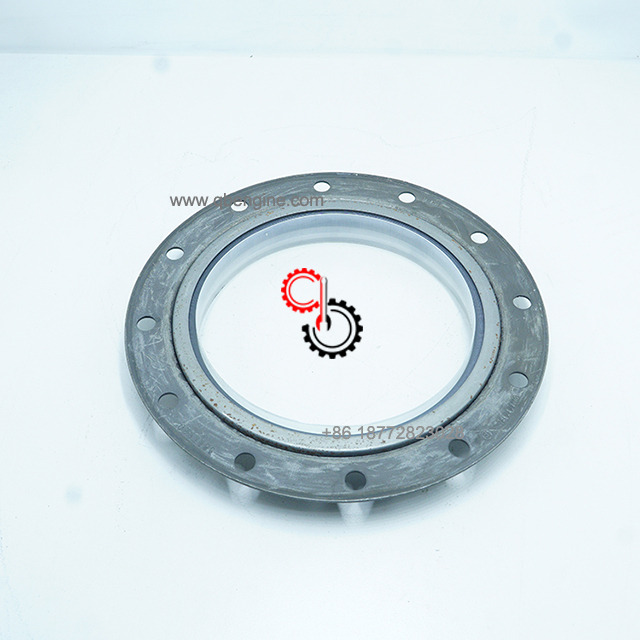

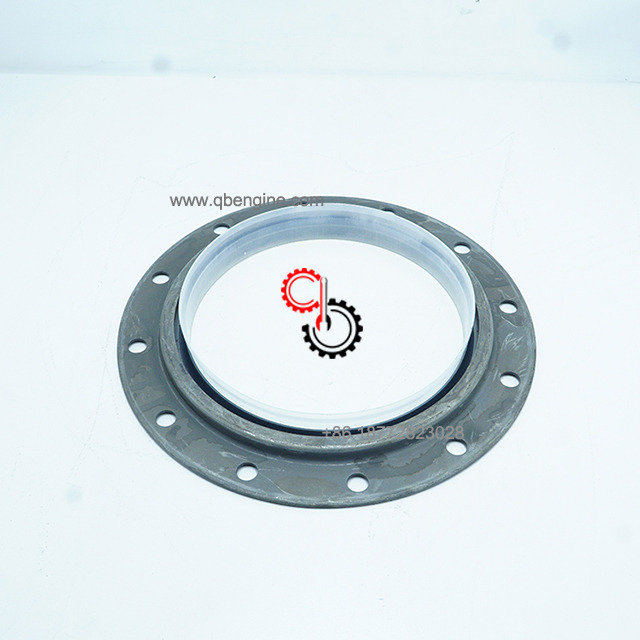

Cummins M11 ISM Crankshaft Seal Kit 4089544

Model:
ISM M11
Brand:
Cummins
Code:
4089544
Delivery Period:
1-7 days
Package:
Genuine Original package or Ne
Warranty:
6 Months

Availability:

Quantity:



Inquire Add to Basket PDF Export

Product Description

Cummins M11 ISM Crankshaft Seal Kit 4089544 In Stock

Electronic Parts Catalog - Option Detail
Cummins Engines	ISM CM570, ISM CM570/870, ISM CM875, ISM CM876, ISM CM876 E, ISM11 CM876 M103, ISM11 CM876 SN, M11 CELECT, M11 CELECT PLUS, M11 MECHANICAL, QSM11 CM570, QSM11 CM876

4089544

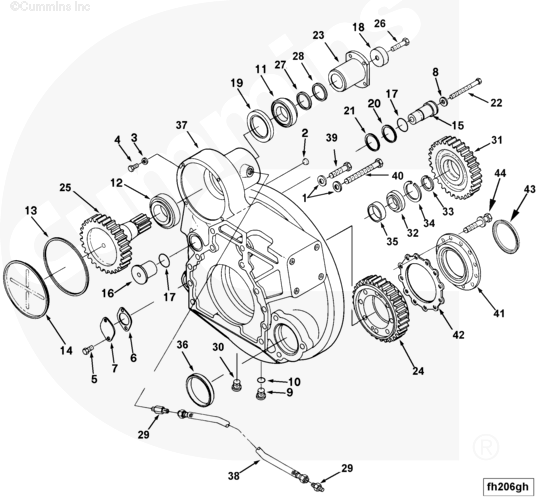

Ref No	Part Number	Part Description	Required	Remarks
	FH2241-08	Flywheel Housing
	3892693	Housing , Flywheel Top Level Assembly	1
1	127316	Plain Washer	12	5/8 in.
2	204476	Expansion Plug	1
3	3009329	Plain Washer	4	M8.
4	3025801	Hexagon Head Cap Screw	4	M8 X 1.25 X 16.
5	3025802	Hexagon Head Cap Screw	2	M8 x 1.25 x 20
6	3026134	Cover Plate Gasket	1
7	3026135	Access Hole Cover	1
8	3627372	Plain Washer	1
	3046202	Threaded Plug	1	3/4 - 16 UNF.
9	3040810	Threaded Plug	1
10	3046201	O-Ring Seal	1
11	3862522	Roller Bearing	1
12	3862523	Roller Bearing	1
13	3862524	Rectangular Ring Seal	1
14	3862525	Cover Plate	1
15	3862661	Idler Shaft	1
16	3862662	Shaft Retainer	1
17	3862669	O-Ring Seal	2
18	3862673	Plain Washer	1
19	3862674	Oil Seal	1
20	3862676	Shim	1	0.127 mm, 0.005 inch
21	3862678	Shim	1	0.381 mm, 0.015 inch
22	3862777	Hexagon Head Cap Screw	1
23	3862906	Power Take-Off Flange	1
24	4082735	Crankshaft Gear	1
25	3862917	Accessory Drive Shaft	1
26	3862966	Hexagon Head Cap Screw	1
27	3862997	Shim	1	0.051 mm, 0.002 inch
28	3862998	Shim	1	0.076 mm, 0.003 inch
29	3896796	Male Connector	2
29	3042004	Threaded Plug	2	3/4-16 UNF
	3892091	Idler Gear	1
31	3862916	Idler Gear	1
	3892357	Roller Bearing	1
32	3862521	Roller Bearing	2
33	3892089	Bearing Spacer	1
34	3892090	Retaining Ring	1
35	3892317	Shim	1	1.016 mm, 0.040 inch
	3892647	Flywheel Housing	1
36	3819822	Sleeve	1
37	3892646	Flywheel Housing	1
38	3417496	Flexible Hose	1
39	3892790	Hexagon Head Cap Screw	5	M16 x 2.00 x 60
40	3892791	Hexagon Head Cap Screw	7	M16 x 2.00 x 130.
41	3883774	Oil Seal	1	Serviced as 4089544.
42	4022497	Carrier Gasket	1
43	3161025	Dust Seal	1
44	3821783	Captive Washer Cap Screw	12	M8 X 1.25 X 20.
	4952193		1

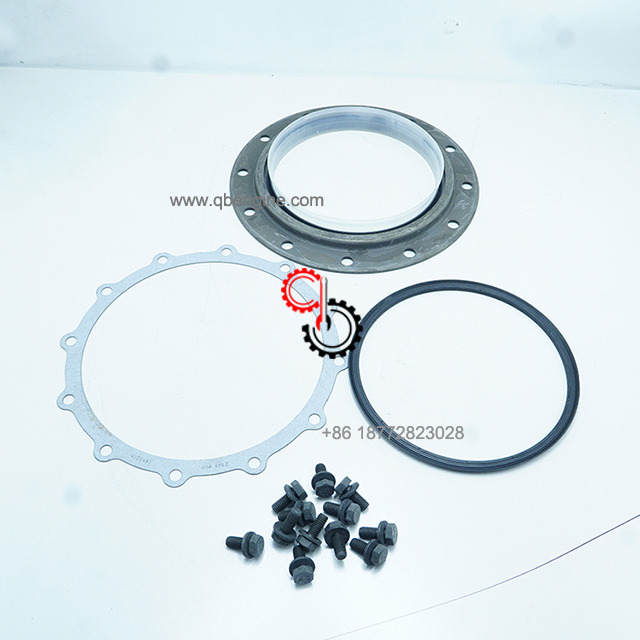

	4089544	Rear Crank Seal Kit	1
	3161025	Dust Seal	1
	3821783	Captive Washer Cap Screw	12	M8 X 1.25 X 20.
	4022497	Carrier Gasket	1
	3883774	Oil Seal	1	Serviced as 4089544.

SHIPMENT CHARACTERISTICS
Length * Width * Height	27cm6cm28cm
Weight	0.885KG

Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.

For us to provide you with the correct information, please have your Cummins Engine Part Number orEngine Serial Number ready, so that we can give you the best price possible along with our expertise.

M11 Seal Kit ism seal kit seal kit 4089544 hydraulic seal kit injector seal kit crankshaft rear oil seal crankshaft seal kit cummins crankshaft seal kit crankshaft seal kit 4089544
