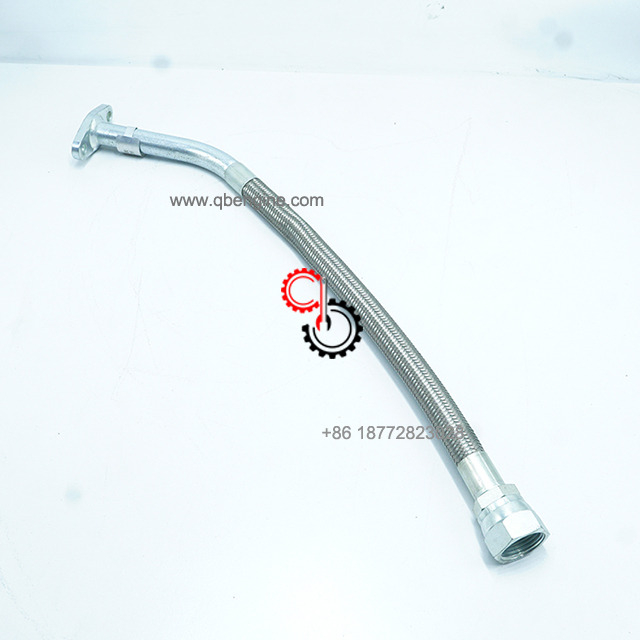

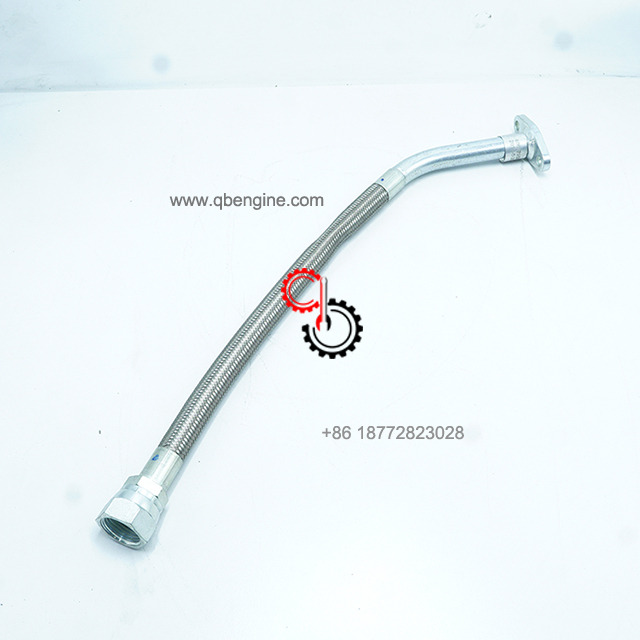

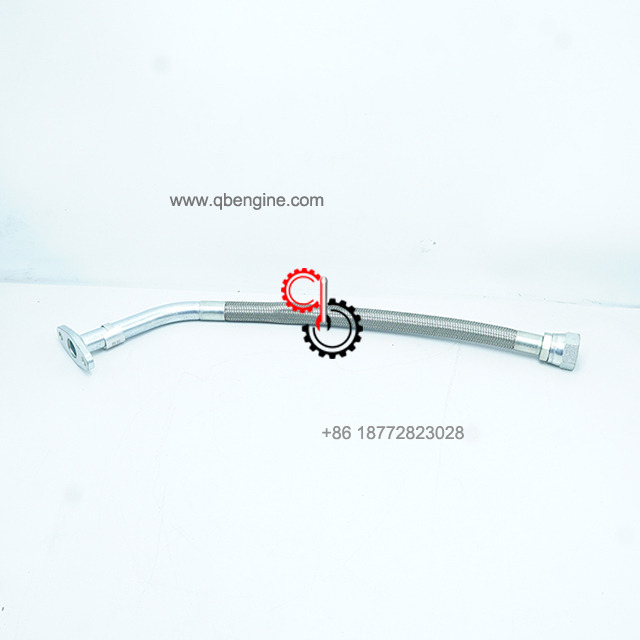

Cummins Turbocharger Oil Drain Connection 4004795

  • Original

  • Cummins

  • 4004795

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins Turbocharger Oil Drain Connection 4004795 In Stock

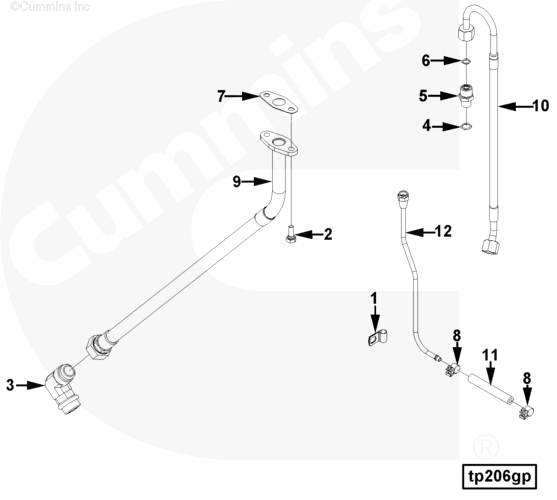

Electronic   Parts Catalog - Option Detail
Cummins  Engines ISM CM570, ISM CM570/870, ISM CM875, ISM CM876, ISM CM876 E, ISM11 CM876 M103, ISM11 CM876 SN, M11 CELECT, M11 CELECT PLUS, M11 MECHANICAL, QSM11 CM570, QSM11 CM876

4004795

Ref No Part Number Part Description Required Remarks

TP2875 Turbocharger Plumbing

1 180372 Clip 1
2 3025802 Hexagon Head Cap Screw 2 M8 X 1.25 X 20.
3 3047340 Male Union Elbow 1

3081950 Male Union 2 1 - 14 x 3/4 - 16
4 3037537 O-Ring Seal 1
5 3085824 Male Union 1 Service as 3081950
6 3922794 O-Ring Seal 1
7 3899343 Turbocharger Gasket 1
8 3914420 Hose Clamp 2 10.5 - 13mm.
9 4004795 Turbocharger Oil Drain Connection 1
10 4004796 Flexible Hose 1
11 4972877 Plain Hose 1
12 4974525 Actuator Tube 1

SHIPMENT CHARACTERISTICS
Length * Width * Height 51cm*7cm*3cm
Weight 0.404KG
