Cummins / Products / Premium Cummins QSK38 QSK50 Cast Iron Gear Housing Cover 4916778 Mining Equipment Part

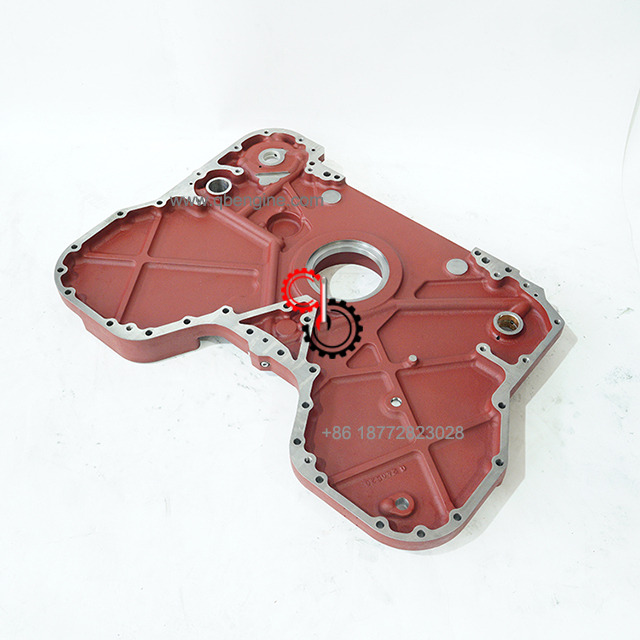

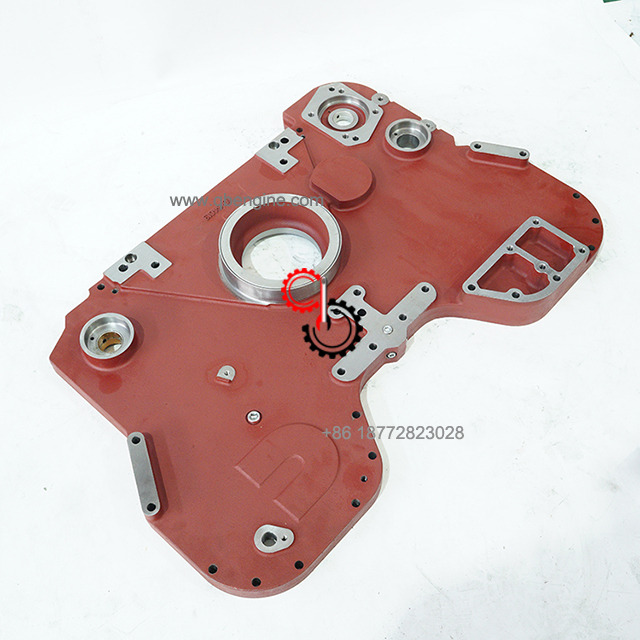

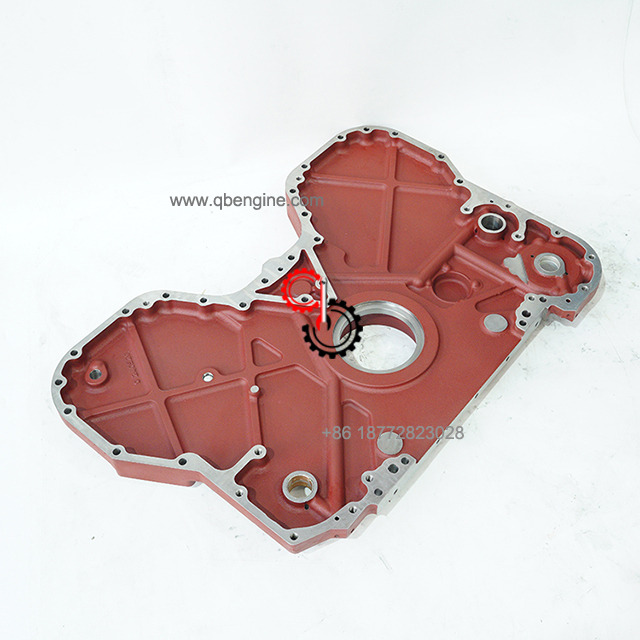

Premium Cummins QSK38 QSK50 Cast Iron Gear Housing Cover 4916778 Mining Equipment Part
Premium Cummins QSK38 QSK50 Cast Iron Gear Housing Cover 4916778 Mining Equipment Part Premium Cummins QSK38 QSK50 Cast Iron Gear Housing Cover 4916778 Mining Equipment Part
Premium Cummins QSK38 QSK50 Cast Iron Gear Housing Cover 4916778 Mining Equipment Part Premium Cummins QSK38 QSK50 Cast Iron Gear Housing Cover 4916778 Mining Equipment Part
Premium Cummins QSK38 QSK50 Cast Iron Gear Housing Cover 4916778 Mining Equipment Part Premium Cummins QSK38 QSK50 Cast Iron Gear Housing Cover 4916778 Mining Equipment Part

loading

Premium Cummins QSK38 QSK50 Cast Iron Gear Housing Cover 4916778 Mining Equipment Part

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Cummins QSK38 QSK50 Gear Housing Cover 4916778

  • Original

  • Cummins

  • 4914735

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins QSK38 QSK50 Gear Housing Cover 4916778 In Stock

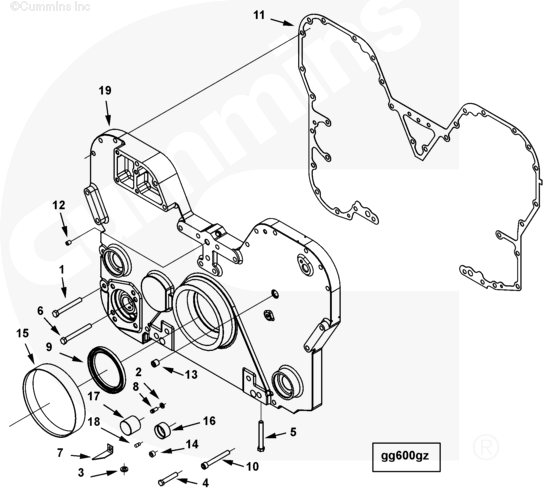

Electronic  Parts Catalog - Option Detail
Cummins  Engines GTA38, K38, KTA38GC CM558, KTAA38 K134G, QSK38 CM2150 K106, QSK38 CM2150 MCRS, QSK38 CM850 MCRS, QSK38 G CM2358 K122

4916778

Ref No Part Number Part Description Required Remarks

GG6729-04 Front Gear Cover

1 S 127 Hexagon Head Cap Screw 2 7/16 - 14 X 3 3/4 in.
2 S 605 Lock Washer 1 5/16 in.
3 3042330 Plain Washer 22 3/8 in.
4 102020 Hexagon Head Cap Screw 7 7/16 - 14 X 2 1/4 in.
5 108767 Hexagon Head Cap Screw 5 7/16 - 14 X 3 1/2 in.
6 110266 Hexagon Head Cap Screw 6 7/16 - 14 X 4 in.
7 206526 Timing Pointer 1
8 206527 Twelve Point Cap Screw 1 5/16 - 18 X 5/8 in.
9 3095278 Oil Seal 1
10 3069026 Socket Head Cap Screw 2 7/16 - 14 X 3 1/2 in.
11 3177160 Gear Cover Gasket 1
12 3628605 Pipe Plug 2 1/4 - 18.
13 3628606 Pipe Plug 1 1/2 - 14.
14 3628609 Pipe Plug 1 3/8-18.

4916778 Gear Cover 1
15 205683 Bushing 1
16 3177509 Bushing 1
17 3177510 Bushing 1

4916777 Gear Cover 1
18 3640775 Tamper Proof Seal 5
19 4916773 Gear Cover 1


SHIPMENT CHARACTERISTICS
Length * Width * Height 125cm*98cm*28cm
Weight 90KG



Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
