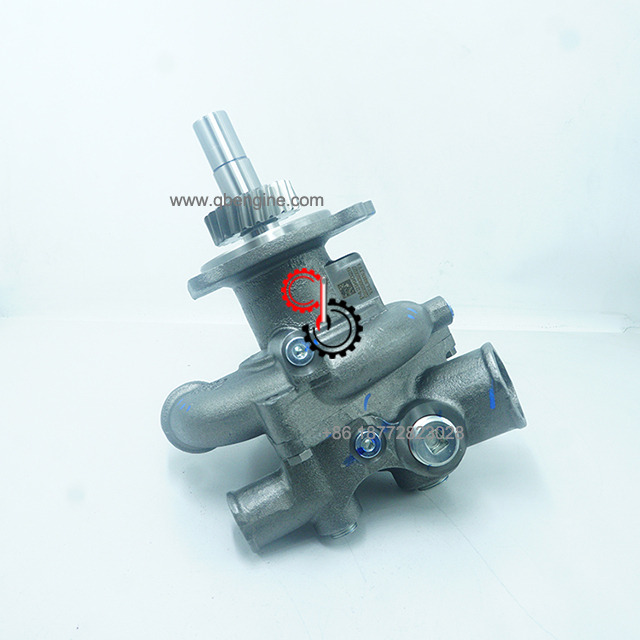

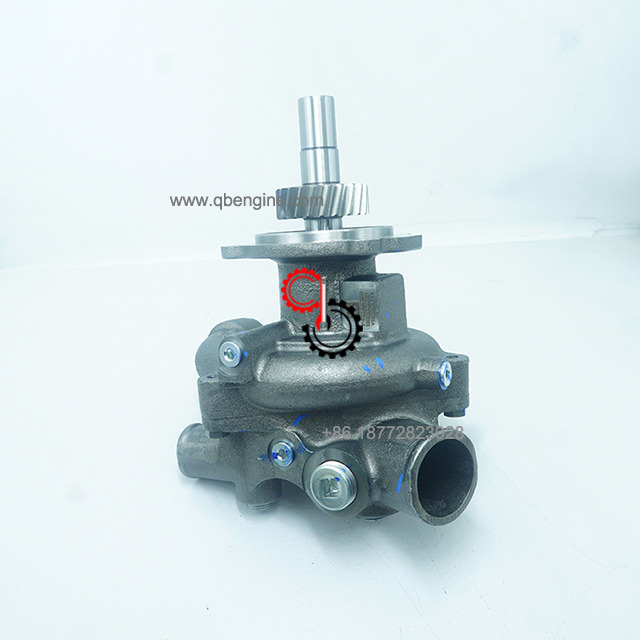

Cummins / Cummins Parts / Air Compressor, Water Pump, Oil Pump, Vacuum Pump, EGR / Premium Cummins M11 Diesel Parts Water Pump Assembly 4299026 4972853 4299042 2882144
Premium Cummins M11 Diesel Parts Water Pump Assembly 4299026 4972853 4299042 2882144
Premium Cummins M11 Diesel Parts Water Pump Assembly 4299026 4972853 4299042 2882144 Premium Cummins M11 Diesel Parts Water Pump Assembly 4299026 4972853 4299042 2882144
Premium Cummins M11 Diesel Parts Water Pump Assembly 4299026 4972853 4299042 2882144 Premium Cummins M11 Diesel Parts Water Pump Assembly 4299026 4972853 4299042 2882144
Premium Cummins M11 Diesel Parts Water Pump Assembly 4299026 4972853 4299042 2882144 Premium Cummins M11 Diesel Parts Water Pump Assembly 4299026 4972853 4299042 2882144

loading

Premium Cummins M11 Diesel Parts Water Pump Assembly 4299026 4972853 4299042 2882144

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Cummins M11 Water Pump Assembly 4299026 4972853 4299042 2882144

  • M11

  • Cummins

  • 4299026 4972853 4299042 2882144

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins M11 Water Pump Assembly 4299026 4972853 4299042 2882144 In Stock

Electronic  Parts Catalog - Option Detail
Cummins  Engines ISM CM570, ISM CM570/870, ISM CM875, ISM CM876, ISM CM876 E, ISM11 CM876 SN, M11 CELECT, M11 CELECT PLUS, M11 MECHANICAL, QSM11 CM570, QSM11 CM876

4299026

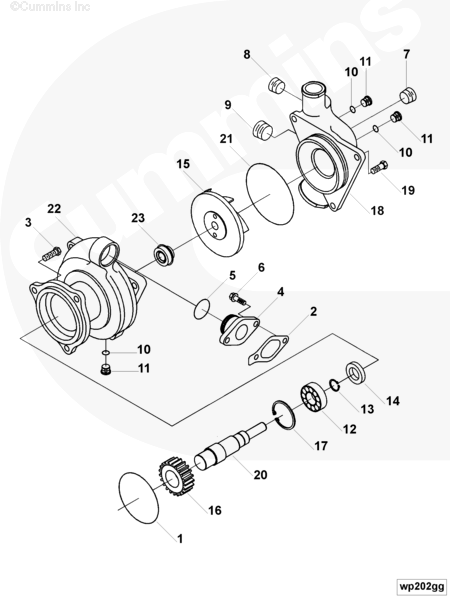

Ref No Part Number Part Description Required Remarks

WP2703-11 Water Pump
Water Pump...(More)
1 2863701 O-Ring Seal 1
2 3027924 Connection Gasket 1
3 3034836 Hexagon Head Cap Screw 3 M10 X 1.50 X 30.

3328559 Water Transfer Connection 1
4 3821718 Water Transfer Connection 1
5 3892095 O-Ring Seal 1
6 3900631 Hexagon Flange Head Cap Screw 2 M8 X 1.25 X 25.

4299026 Water Pump 1
7 3008468 Pipe Plug 1 1/2 NPT.
8 3008469 Pipe Plug 1 3/4 NPT.
9 3008470 Pipe Plug 1 1 NPT.

3037536 Threaded Plug 3 9/16 - 18 UNF.
10 3037537 O-Ring Seal 1
11 3040813 Threaded Plug 1 9/16 - 18 UNF.
12 S 16002 Ball Bearing 1
13 160586 Retaining Ring 1
14 3019600 Oil Seal 1
15 3035679 Water Pump Impeller 1
16 3038991 Water Pump Gear 1
17 3064634 Retaining Ring 1
18 3073695 Water Pump Cover 1
19 3335044 Hexagon Head Cap Screw 3 M10 X 1.50 X 25.
20 3819632 Water Pump Shaft 1
21 3820791 O-Ring Seal 1
22 4926553 Water Pump Body 1
23 2878069 Water Pump Seal 1

3265961 Water Plumbing Connection A/R

3027924 Connection Gasket 1

3328559 Water Transfer Connection 1

3900631 Hexagon Flange Head Cap Screw 2

SHIPMENT CHARACTERISTICS
Length * Width * Height 34cm*27cm*28cm
Weight 12.262KG


Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.



Previous:
Next:
4299026 water pump cummins water pump gear driven pump water pump assembly coolant pump 4972853 4299042 2882144
