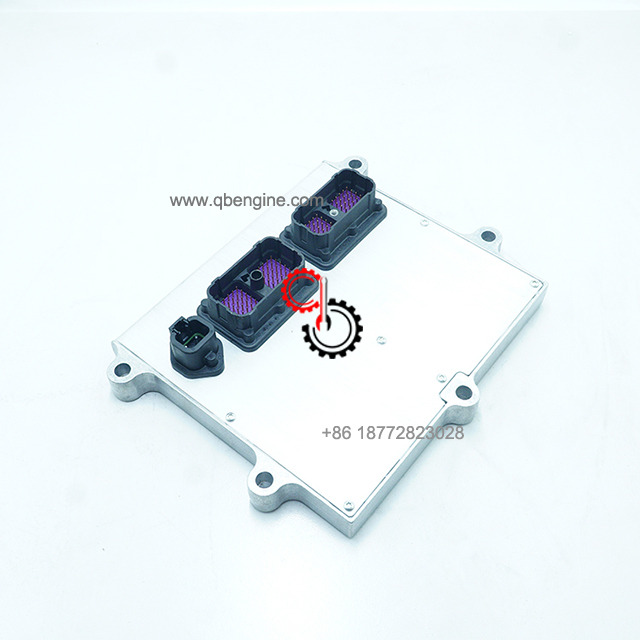

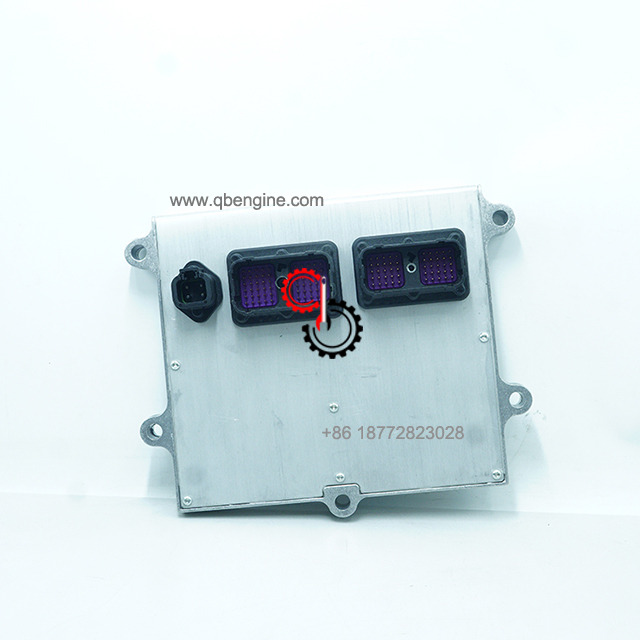

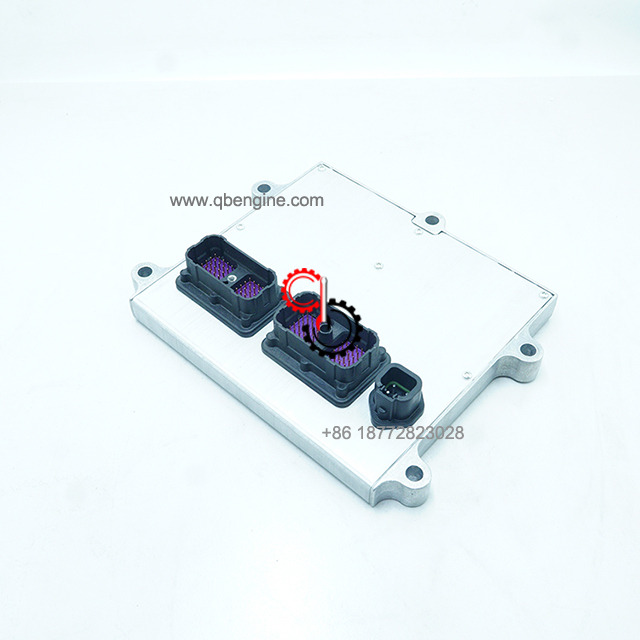

Cummins ISX CM870 Electronic Control Module 3684009 3682729

  • ISX

  • Cummins

  • 3684009 3682729

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins ISX CM870 Electronic Control Module 3684009 3682729 In Stock

Electronic  Parts Catalog - Option Detail
Cummins  Engines ISX CM570, ISX CM870, ISX CM871, ISX CM871 E, ISX15 CM2250, ISX15 CM2250 SN, ISX15 CM2350 X101, ISX15 CM2350 X129, ISZ13 CM2150 SN, QSX11.9 CM2250 ECF, QSX15 CM2250, QSX15 CM2250 ECF, QSX15 CM2250 X115, QSX15 CM2350 X105, QSX15 CM2350 X106, QSX15 CM2350 X118, QSX15 CM2350 X130, QSX15 CM2350 X131, QSX15 CM570, QSZ13 CM2150 Z101, QSZ13 CM2150 Z102, R2.8 CM2220 R101B, X12 CM2350 X119B, X15 CM2350 X114B, X15 CM2350 X116B, X15 CM2350 X125M, X15 CM2350 X132C

3684009

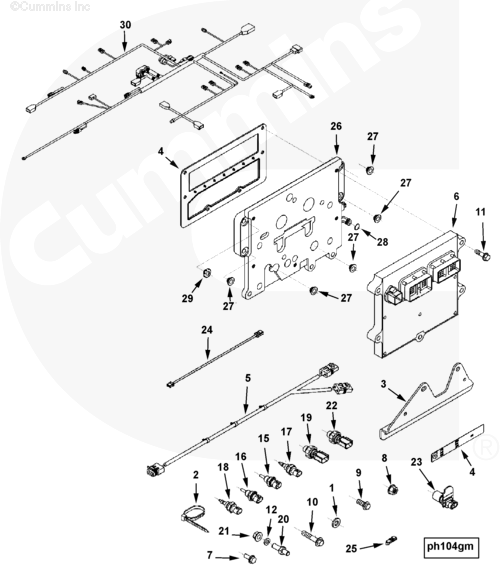

Ref No Part Number Part Description Required Remarks

PH1793-07 Engine Control Module

1 3009329 Plain Washer 6 M8.
2 3062329 Wire Tie Clamp 10
3 3682576 Customer Accessory Bracket 1
4 3682577 Electronic Control Module Gasket 1
5 3682579 Wiring Harness 1
6 3684009 Electronic Control Module 1
7 3821783 Captive Washer Cap Screw 3 M8 x 1.25 x 20
8 3900589 Hexagon Flange Nut 1 M8 X 1.25
9 3900630 Hexagon Flange Head Cap Screw 5 M8 X 1.25 X 20
10 3900678 Hexagon Flange Head Cap Screw 5 M8 X 1.25 X 40.
11 3902114 Hexagon Flange Head Cap Screw 6 M8 X 1.25 X 30.
12 3910266 Spring Washer 1
14 4083185 Dataplate 1
15 3865346 Temperature Sensor 1 Coolant Or Oil Or Fuel.
16 3096153 Temperature Sensor 1 Coolant or Oil
15 3865346 Temperature Sensor 1 Coolant Or Oil Or Fuel.
16 3096153 Temperature Sensor 1 Coolant or Oil
17 4088832 Temperature Sensor 1 Coolant or Intake Manifold
18 4088833 Temperature Sensor 1 Coolant or Intake Manifold
19 4921517 Pressure Sensor 1 Oil.
20 3681386 Studded Hexagon Cap Screw 1
21 3902662 Hexagon Flange Nut 1 M10 x 1.50
22 4928593 Pressure Sensor 1 Intake Manifold
23 4921599 Position Sensor 2 Cam or crank.
24 3683086 Wiring Harness 1
25 4076493 Pressure Sensor 1 Ambient Air.

4076861 Electronic Control Cooler 1
26 4076946 Electronic Control Cooler 1
27 4062346 Insulating Washer 5
28 3627695 O-Ring Seal 2
29 4062357 Ground Washer 1
30 4926071 Wiring Harness 1

SHIPMENT CHARACTERISTICS
Length * Width * Height 9cm*8.5cm*1cm
Weight 4.25KG
