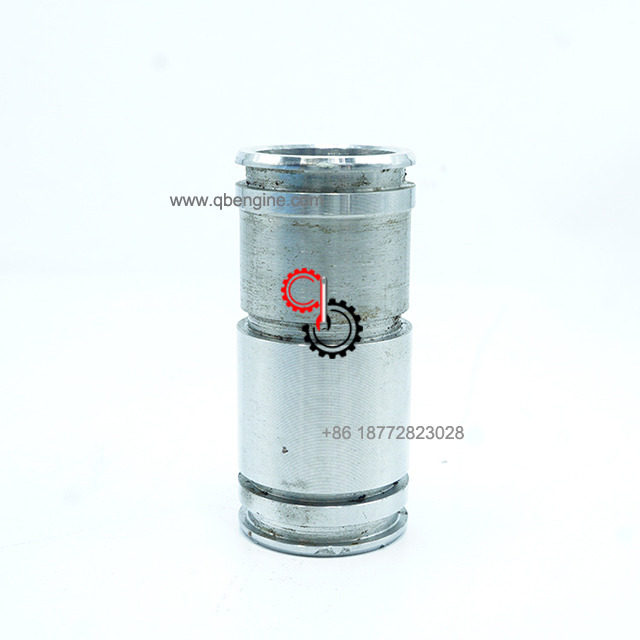

Cummins QSK23 Water Bypass Tube 4095589

  • QSK23

  • Cummins

  • 4095589

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins QSK23 Water Bypass Tube 4095589 In Stock

Electronic   Parts Catalog - Option Detail
Cummins  Engines QSK23 CM2250 K109, QSK23 CM500

4095589

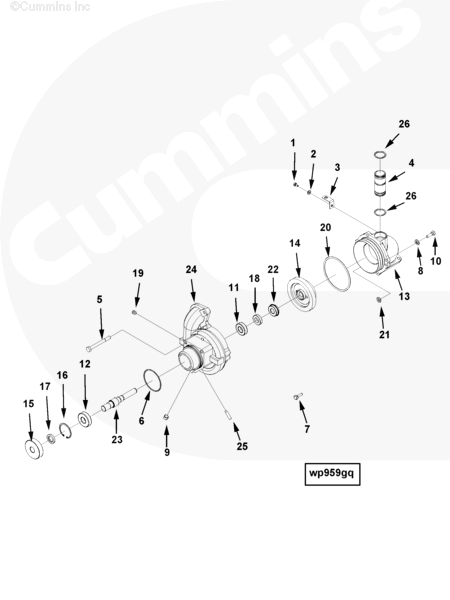

Ref No Part Number Part Description Required Remarks

WP50007-02 Water Pump

1 3093736 Hexagon Head Cap Screw 1 M8 x 1.25 x 12.
2 3863995 Plain Washer 1
3 4095539 Tube Brace 1
4 4095589 Water Bypass Tube 1
5 4095815 Hexagon Head Cap Screw 4 M12 x 1.75 x 115
6 4095892 O-Ring Seal 1

4097082 Water Pump 1 Recon Equiv. 4097082 NX or RX
7 3064106 Hexagon Head Cap Screw 4 M10 x 1.50 x 30.
8 3093799 Plain Washer 4
9 3093821 Pipe Plug 1
10 3094508 Hexagon Head Cap Screw 4
11 4095423 Ball Bearing 1
12 4095429 Ball Bearing 1
13 4095583 Water Pump Body 1
14 4095584 Water Pump Impeller 1
15 4095586 Water Pump Gear 1
16 4095587 Retaining Ring 1
17 4095588 Thrust Ring Spacer 1
18 4095641 Oil Seal 1
19 4095909 Pipe Plug 1
20 4095948 O-Ring Seal 1
21 4095949 O-Ring Seal 1
22 4096426 Water Pump Seal 1
23 4096523 Water Pump Shaft 1
24 4097083 Water Pump Body 1
25 4097084 Water Outlet Pipe 1
26 5282819 O-Ring Seal 2

SHIPMENT CHARACTERISTICS
Length * Width * Height 6cm*6cm*12cm
Weight 0.39KG


Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number orEngine Serial Number ready, so that we can give you the best price possible along with our expertise.
