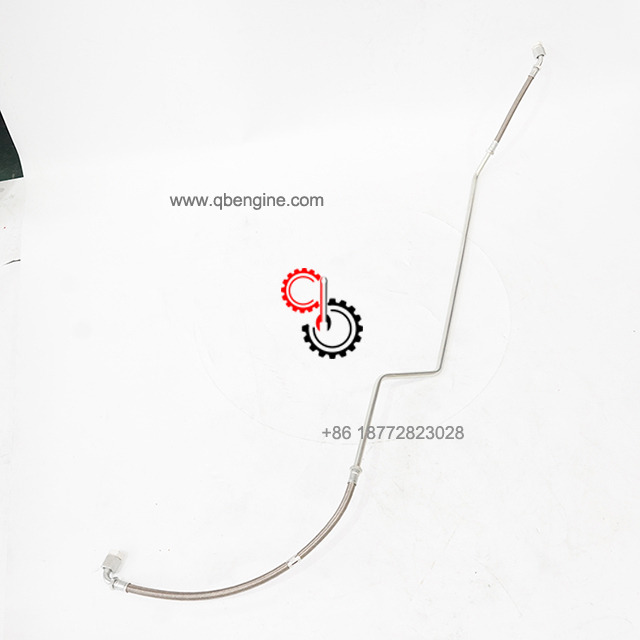

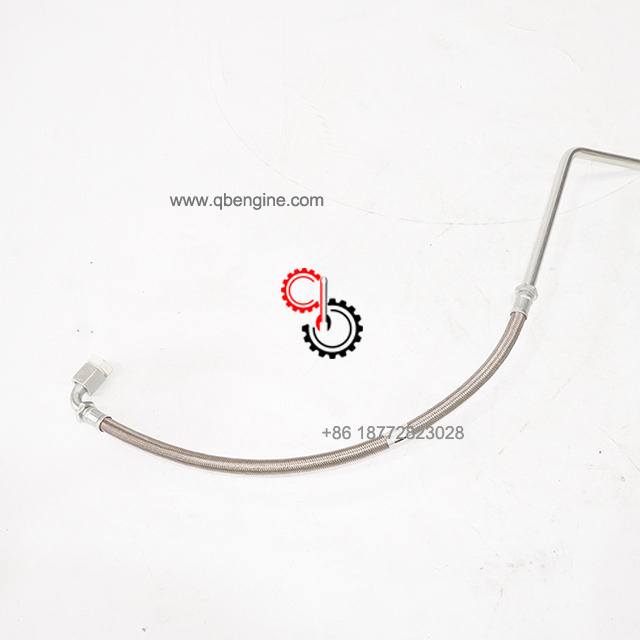

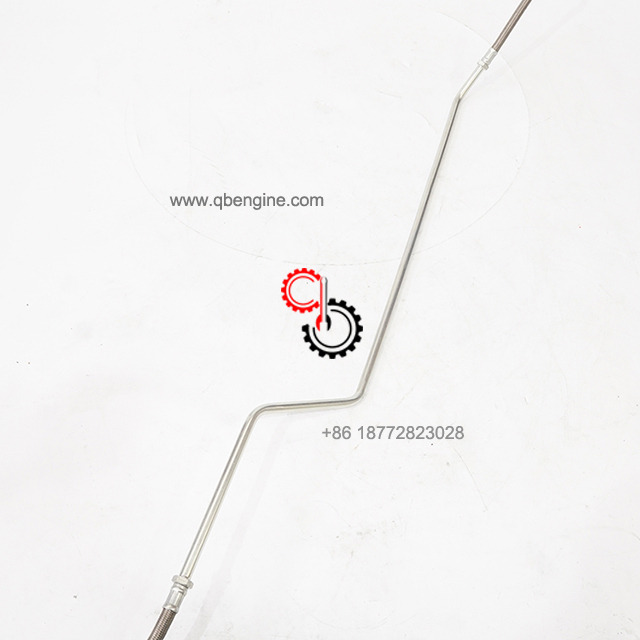

Cummins / Products / Original OEM Cummins QSK50 Flexible Hose Turbo Water Pipe 3644865 3636261
Original OEM Cummins QSK50 Flexible Hose Turbo Water Pipe 3644865 3636261
Original OEM Cummins QSK50 Flexible Hose Turbo Water Pipe 3644865 3636261 Original OEM Cummins QSK50 Flexible Hose Turbo Water Pipe 3644865 3636261
Original OEM Cummins QSK50 Flexible Hose Turbo Water Pipe 3644865 3636261 Original OEM Cummins QSK50 Flexible Hose Turbo Water Pipe 3644865 3636261
Original OEM Cummins QSK50 Flexible Hose Turbo Water Pipe 3644865 3636261 Original OEM Cummins QSK50 Flexible Hose Turbo Water Pipe 3644865 3636261

loading

Original OEM Cummins QSK50 Flexible Hose Turbo Water Pipe 3644865 3636261

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Cummins QSK50 Turbo Water Pipe 3644865 3636261

  • QSK50

  • Cummins

  • 3644865 3636261

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins QSK50  Turbo Water Pipe 3644865 3636261 In Stock

Electronic Parts Catalog - Option Detail
Cummins Engines G50, K50, K50-DPM, QSK50 CM2150 K107, QSK50 CM2150 MCRS, QSK50 CM2350 K108, QSK50 CM850 MCRS, QSK50 DF CM850/CM2150 MCRS

3644865

Ref No Part Number Part Description Required Remarks

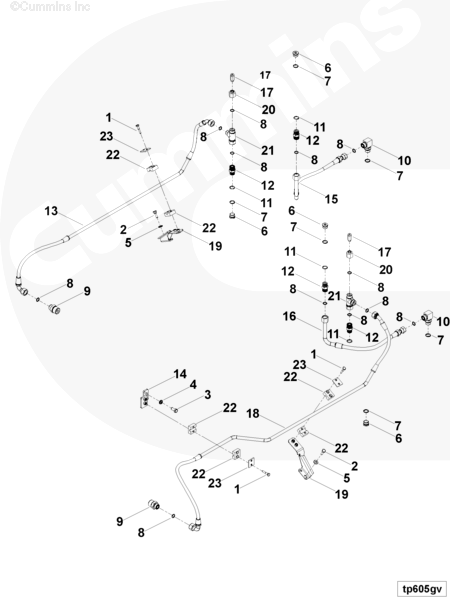

TP6788-07 Turbocharger Coolant Plumbing
TUR Coolant Plumbing...(More)
1 S 105 C Hexagon Head Cap Screw 8 1/4 - 20 x 1 1/4 in.
2 S 115 Hexagon Head Cap Screw 6 5/16 - 18 X 7/8 in.
3 S 117 Hexagon Head Cap Screw 2 3/8 - 16 x 3/4 in.
4 S 604 Lock Washer 2 3/8 in.
5 3042328 Plain Washer 6 1/4 in.

3046202 Threaded Plug 4 3/4 - 16 UNF.
6 3040810 Threaded Plug 1
7 3046201 O-Ring Seal 1

3095295 Male Adapter Union 2
8 3627695 O-Ring Seal 1
9 3627699 Male Union 1

3630738 Male Union Elbow 2
10 3630739 Male Adapter Elbow 1

3634662 Male Adapter Union 4
11 3348871 O-Ring Seal 1
12 3634663 Male Union 1
13 3636259 Flexible Hose 1
14 3637326 Water Tube Bracket 1
15 3637762 Flexible Hose 1
16 3637764 Flexible Hose 1
17 3638582 Draincock 2
18 3644865 Flexible Hose 1
19 3645322 Water Tube Bracket 3
20 4016444 Reducing Adapter 2

4016645 Male Union Tee 2
21 4016646 Male Union Tee 1
22 4917415 Tube Clamp 8
23 4917564 Cover Plate 4


SHIPMENT CHARACTERISTIC

Length * Width * Height

 120cm*3cm*3cm
Weight 0.5KG



Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
