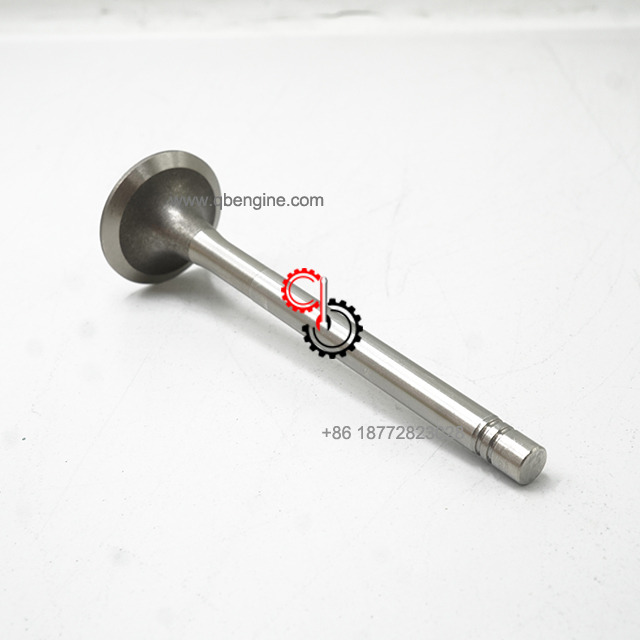

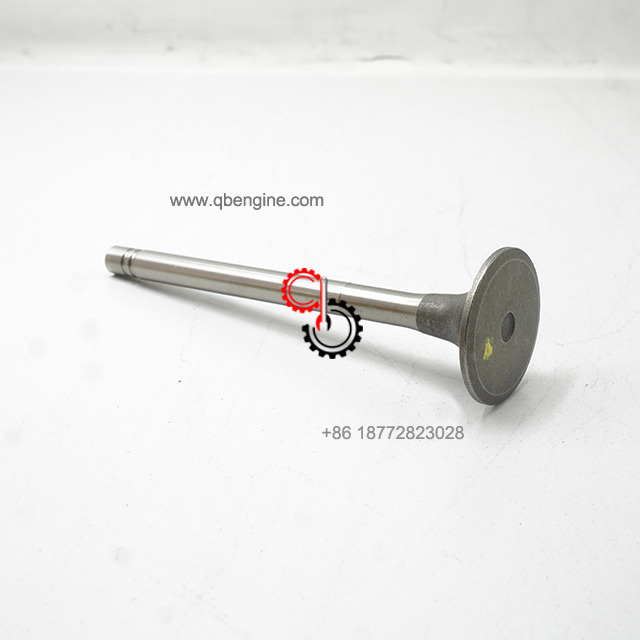

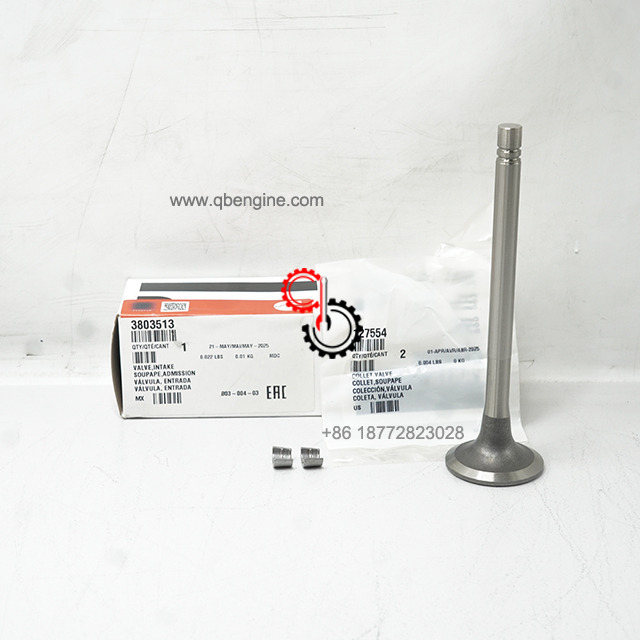

Cummins Intake Valve 3803513 216707

  • original

  • Cummins

  • 3803513 216707

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins Intake Valve 3803513 216707 In Stock

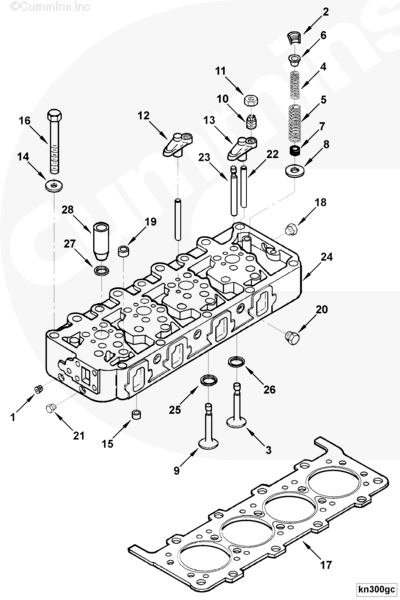

Electronic   Parts Catalog - Option Detail
Cummins   Engines V378, V504, V555, V903, VT8, VTA903 CM2250 V105

3803513

Ref No Part Number Part Description Required Remarks

PP273-01 Cylinder Head
Cylinder Head

AR11171 Cylinder Head 1 Recon Equivalent AR11171 RX
1 S 911 B Pipe Plug 4 1/8 NPT
2 127554 Valve Collet 32
3 3803520 Exhaust Valve 8
4 146731 Spring 16
5 146732 Valve Spring 16
6 146733 Valve Spring Guide 16
7 4000643 Valve Stem Seal 8
8 212504 Valve Spring Wear Plate 32
9 3803513 Intake Valve 8

AR45632 Crosshead 4
10 147389 Crosshead Adjusting Screw 1 3/8 - 24 X 3/4"
11 203131 Heavy Hexagon Nut 1 3/8 - 24 UNF
12 215870 Valve Crosshead 1

AR45633 Crosshead 4
10 147389 Crosshead Adjusting Screw 1 3/8 - 24 X 3/4"
11 203131 Heavy Hexagon Nut 1 3/8 - 24 UNF
13 215871 Valve Crosshead 1
14 69699 Plain Washer 18 5/8"
15 100973 Ring Dowel 2
16 177734 Hexagon Head Cap Screw 13
17 212224 Cylinder Head Gasket 1

AR11085 Cylinder Head 1
18 3008466 Pipe Plug 1 1/4 NPT.
19 178336 Ring Dowel Split Type 5
20 3055740 Pipe Plug 17 3/4 NPT
21 3055741 Pipe Plug 1 1/2 NPT

3056505 Cylinder Head 1
22 123558 Valve Crosshead Guide 8
23 138937 Valve Stem Guide 16
24 180102 Cylinder Head 1
25 212217 Valve Insert 8
26 212940 Valve Insert 8
27 3007759 O-Ring Seal 4
28 3070486 Injector Sleeve 4


SHIPMENT CHARACTERISTICS
Length * Width * Height 6cm*6cm*19cm
Weight 0.01KG

Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
