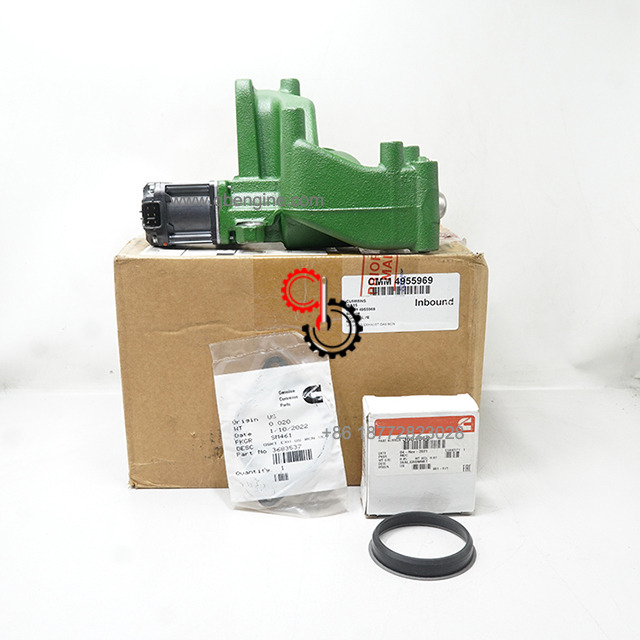

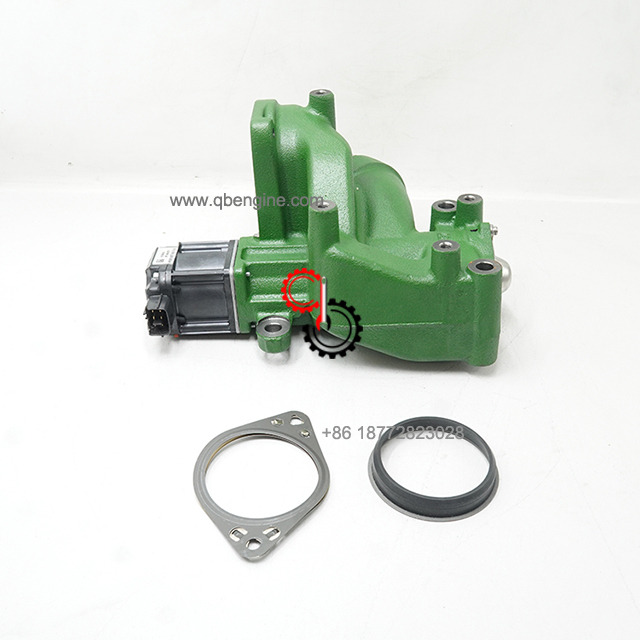

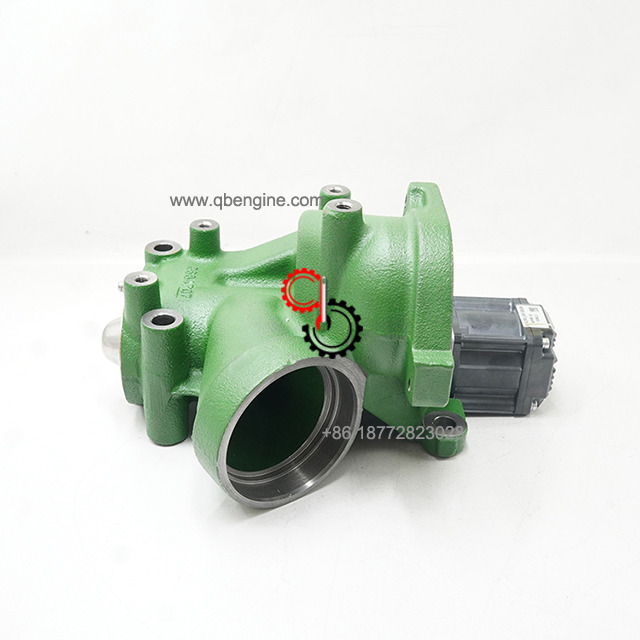

Cummins ISX QSX Engineering Valve Kit 4955969 5473226 3684707 5483006

  • ISX QSX

  • Cummins

  • 4955969 5473226 3684707 5483006

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins ISX QSX Engineering Valve Kit 4955969 5473226 3684707 5483006 In Stock

Electronic   Parts Catalog - Option Detail
Cummins   Engines ISX CM570, ISX CM870, ISX CM871, ISX CM871 E, ISX15 CM2250, ISX15 CM2250 SN, ISX15 CM2350 X101, ISX15 CM2350 X129, ISZ13 CM2150 SN, QSX11.9 CM2250 ECF, QSX15 CM2250, QSX15 CM2250 ECF, QSX15 CM2250 X115, QSX15 CM2350 X105, QSX15 CM2350 X106, QSX15 CM2350 X118, QSX15 CM2350 X130, QSX15 CM2350 X131, QSX15 CM570, QSZ13 CM2150 Z101, QSZ13 CM2150 Z102, R2.8 CM2220 R101B, X12 CM2350 X119B, X15 CM2350 X114B, X15 CM2350 X116B, X15 CM2350 X125M, X15 CM2350 X132C

4955969

Ref No Part Number Part Description Required Remarks

ER1733-03 Exhaust Recirculation

1 2872140 Temperature Sensor 1 Egr return.
2 4088528 Sealing Washer 1
3 2878152 T-Bolt Clamp 1
4 3689035 Exhaust Gas Recirculation Cooler
4309398 NX Service Kit
5 2882472 Hose Clamp 2
6 2882560 Pressure Sensing Tube 1
7 2891999 Water Transfer Connection 1
8 2892782 Plain Hose 1

3101532 Male Union 1
9 3101531 Male Union 1
10 3678925 O-Ring Seal 1 M10.
11 3104230 Exhaust Gas Recirculation Valve  Gasket 1 EGR Cooler Outlet

3678921 Threaded Plug 1 M14 X 1.5 X 16
12 3678912 O-Ring Seal 1 M14
13 3678922 Threaded Plug 1 M14 X 1.5 X 16
14 3682064 Hexagon Flange Head Cap Screw 2
15 3682798 Hexagon Flange Nut 4
16 3683495 Venturi Seal 1
17 3683523 Venturi Brace 1
18 3683535 Tube Brace 1
19 3683536 Heat Shield 1
20 3683537 Exhaust Gas Recirculation Valve  Gasket 2

3683586 Plain Pipe Coupling 1
21 3683587 Plain Pipe Coupling 1
22 3683814 O-Ring Seal 2
23 3683607 Water Seal 1
24 3683636 Vent Tube 1
25 3684238 Flexible Exhaust Connection 1
26 3684320 Clamping Plate 1
27 3684322 Clamping Plate 1
28 3684360 Grommet Seal 1
29 3684386 Exhaust Gas Recirculation Venturi 1

3684396 Exhaust Recirculation Valve  Support 1
30 3684393 Seal Carrier 1
31 3684394 Exhaust Recirculation Valve  Support 1
32 3684484 Sensor Adapter 1

3684491 Pressure Sensing Tube 1
33 3684392 Plain Hose 1
34 3684434 Hose Clamp 1
35 3684435 Tube Insulation 1
36 3684487 Pressure Sensing Tube 1

3684492 Pressure Sensing Tube 1
33 3684392 Plain Hose 1
34 3684434 Hose Clamp 1
35 3684435 Tube Insulation 1
37 3684488 Pressure Sensing Tube 1
38 3684707 Exhaust Gas Recirculation Valve 1 Serviced as 4955969 NX

3685565 Air Crossover Tube 1
39 3683543 Air Crossover Tube 1
40 3687127 Studded Captive Washer Screw 1

3687708 Water Bypass Tube 1
22 3683814 O-Ring Seal 2
41 3687707 Water Bypass Tube 1
42 3900629 Hexagon Flange Head Cap Screw 1 M8 X 1.25 X 16
43 3900631 Hexagon Flange Head Cap Screw 4 M8 X 1.25 X 25.
44 3900678 Hexagon Flange Head Cap Screw 2 M8 X 1.25 X 40.
45 3903112 Hexagon Flange Head Cap Screw 8 M10 X 1.50 X 30.
46 3903464 Hexagon Flange Head Cap Screw 2 M10 X 1.50 X 40.
47 3903990 Hexagon Flange Head Cap Screw 4 M10 X 1.50 X 20.
48 3904446 Hexagon Flange Head Cap Screw 1 M10 X 1.50 X 70.
49 3916069 Hexagon Flange Head Cap Screw 1 M10 X 1.50 X 90.
50 3921816 Studded Flange Cap Screw 2 M8 X 1.25 X 45.
51 3922863 Hexagon Flange Head Cap Screw 1 M10 x 1.50 x 110.

4921728 Pressure Sensor 1 Egr differential.
52 4076823 Rectangular Ring Seal 1
53 4921729 Differential Pressure Sensor 1

4926332
1

3101532 Male Union 1
54 4928594 Pressure Sensor 1 Exhaust gas.
55 4010519 O-Ring Seal 1
56 4970036 Hose Clamp 2

4973489
1
57 3683144 V Band Clamp 1

4955969 Engineering Valve Kit 1 Purchase as 4955969 NX

3683537 Exhaust Gas Recirculation Valve  Gasket 1

3684360 Grommet Seal 1

3684707 Exhaust Gas Recirculation Valve 1 Serviced as 4955969 NX

4309398 Engineering Cooler Kit
Purchase as 4309398 NX

3689035 Exhaust Gas Recirculation Cooler 1 4309398 NX Service Kit

2881920 Parts Distribution Center Kit 1

Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
