Cummins / Cummins Parts / Alternator, Starter Motor, Turbocharger / Original Cummins KTA19 Alternator Bracket Replacement 3086365 3006774
Original Cummins KTA19 Alternator Bracket Replacement 3086365 3006774
Original Cummins KTA19 Alternator Bracket Replacement 3086365 3006774 Original Cummins KTA19 Alternator Bracket Replacement 3086365 3006774
Original Cummins KTA19 Alternator Bracket Replacement 3086365 3006774 Original Cummins KTA19 Alternator Bracket Replacement 3086365 3006774
Original Cummins KTA19 Alternator Bracket Replacement 3086365 3006774 Original Cummins KTA19 Alternator Bracket Replacement 3086365 3006774

loading

Original Cummins KTA19 Alternator Bracket Replacement 3086365 3006774

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

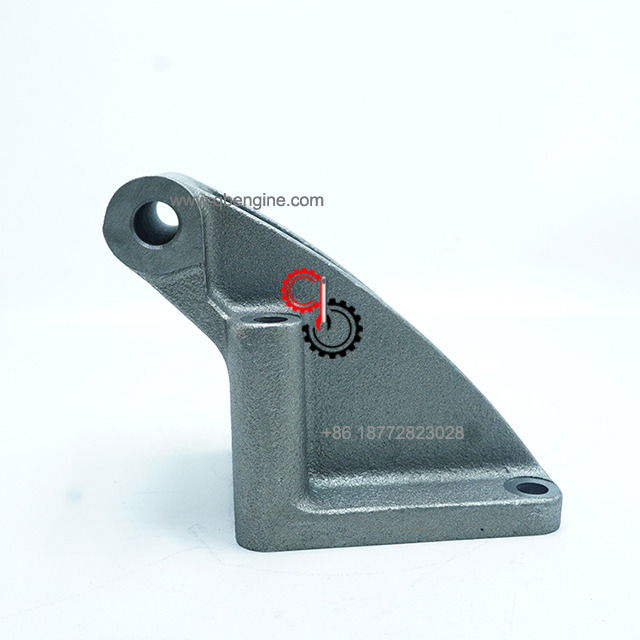

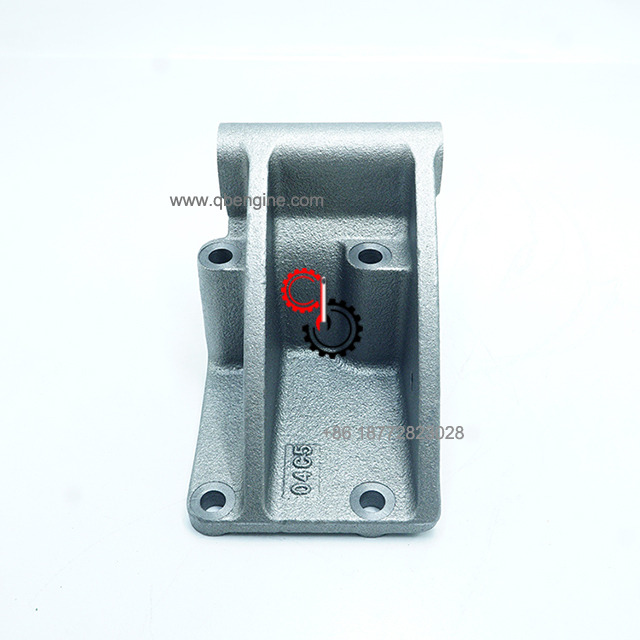

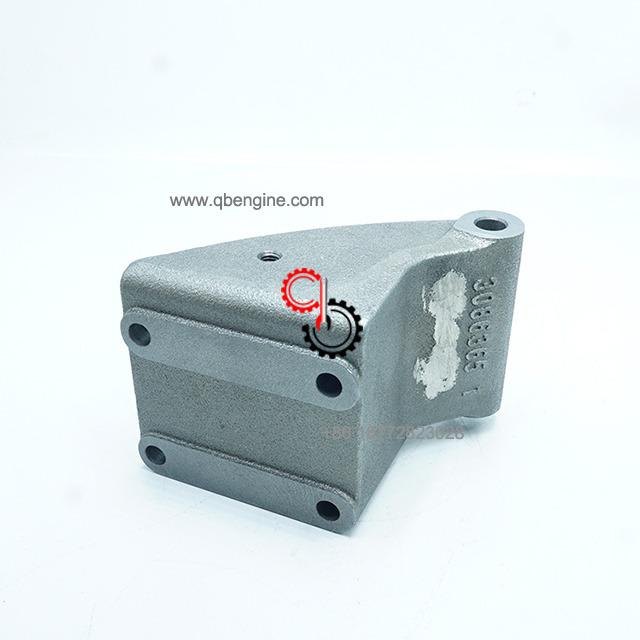

Cummins KTA19 Alternator Bracket 3086365 3006774

  • KTA19

  • Cummins

  • 3086365 3006774

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins KTA19 Alternator Bracket 3086365 3006774 In Stock

Electronic  Parts Catalog - Option Detail
Cummins  Engines K19, KTA19 G CMEICS K123, KTA19GC, KTA19GC CM558, QSK19 CM2150 MCRS, QSK19 CM2350 K105, QSK19 CM500, QSK19 CM850 MCRS, QSK19G

3086365

Ref No Part Number Part Description Required Remarks

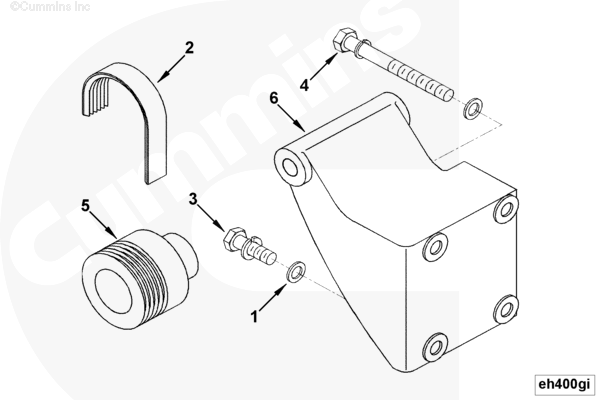

EH4734-01 Alternator Drive
Alternator Drive
1 127362 Plain Washer 4 3/8 in.
2 206996 V Ribbed Belt 1
3 3010596 Captive Washer Cap Screw 2 3/8 - 16 x 1 1/4 in.
4 3010597 Captive Washer Cap Screw 2 3/8 - 16 X 3 3/4 in.
5 3002323 Alternator Pulley 1
6 3086365 Alternator Support 1


SHIPMENT CHARACTERISTICS
Length * Width * Height 18cm*18cm*12cm
Weight 3.243KG


Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
