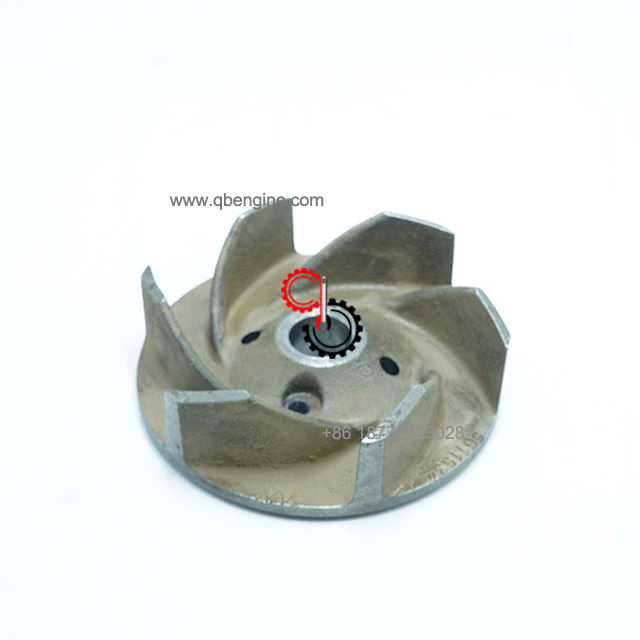

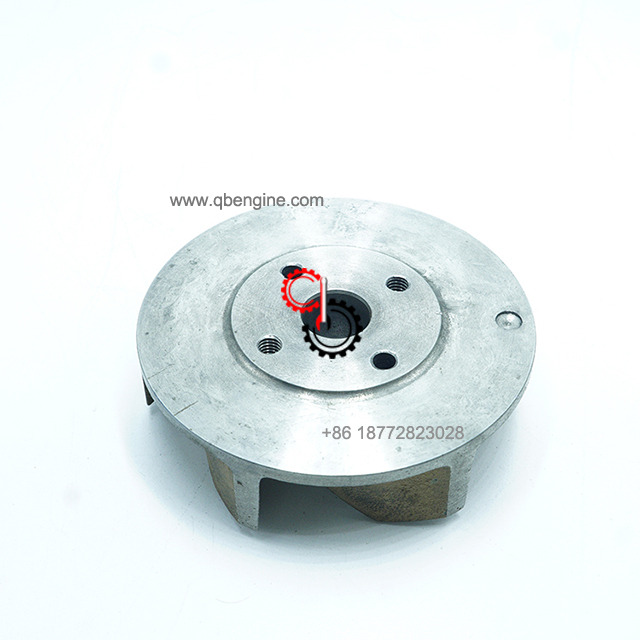

Cummins K38 K50 Water Pump Impeller 3050453

  • K38 K50

  • Cummins

  • 3050453

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins K38 K50 Water Pump Impeller 3050453 In Stock

Electronic  Parts Catalog - Option Detail
Cummins  Engines G50, K50, K50-DPM, QSK50 CM2150 K107, QSK50 CM2150 MCRS, QSK50 CM2350 K108, QSK50 CM850 MCRS, QSK50 DF CM850/CM2150 MCRS

3050453

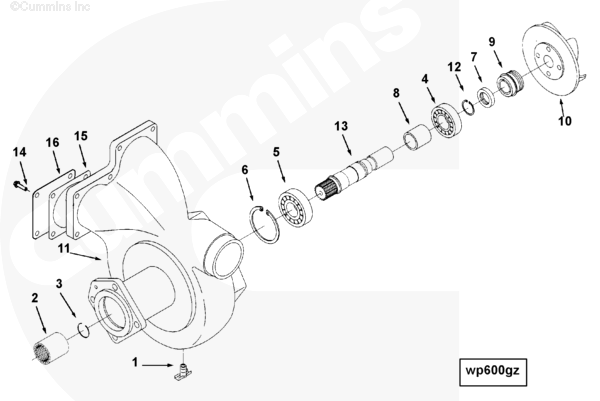

Ref No Part Number Part Description Required Remarks

WP6004-04 Water Pump
Water pump for use where...(More)

3634040 Water Pump 1
1 S 962 E Draincock 1
2 206195 Spline Coupling Sleeve 1
3 206196 Retaining Ring 1
4 S 16054 Ball Bearing 1
5 S 16069 Ball Bearing 1
6 70183 Retaining Ring 1
7 3634146 Oil Seal 1
8 3030487 Bearing Spacer 1
9 3634007 Water Pump Seal 1
10 3050453 Water Pump Impeller 1
11 3634042 Water Pump Body 1
12 3175573 Retaining Ring 1
13 3634049 Water Pump Shaft 1
14 S  109 Hexagon Head Cap Screw 8 3/8 - 16 x 7/8 in.
15 3410348 Water Pump Gasket 2
16 3410349 Water Pump Cover 2


SHIPMENT CHARACTERISTICS
Length * Width * Height 19cm*18cm*7cm
Weight 1.656KG


Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
