Cummins / Cummins Parts / Fan Support, Fan, Idler Gear, Belt Tensioner, Fan Pulley / Original Cummins K38 K50 Viscous Vibration Damper 3628650 Engine Spare Parts

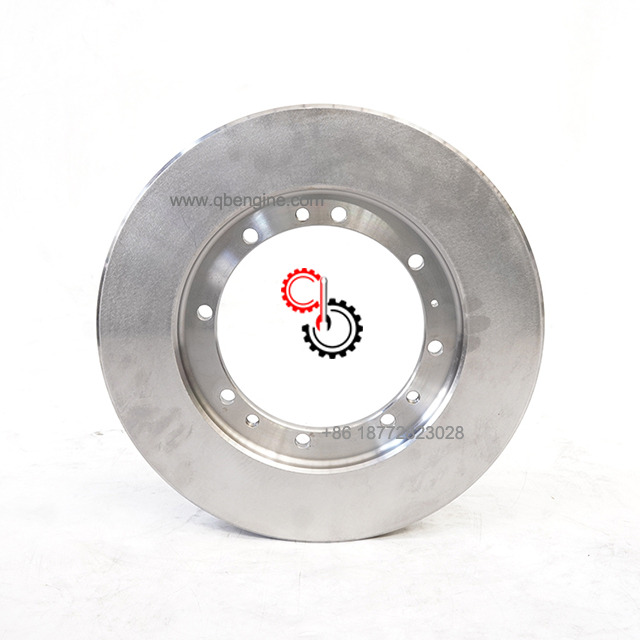

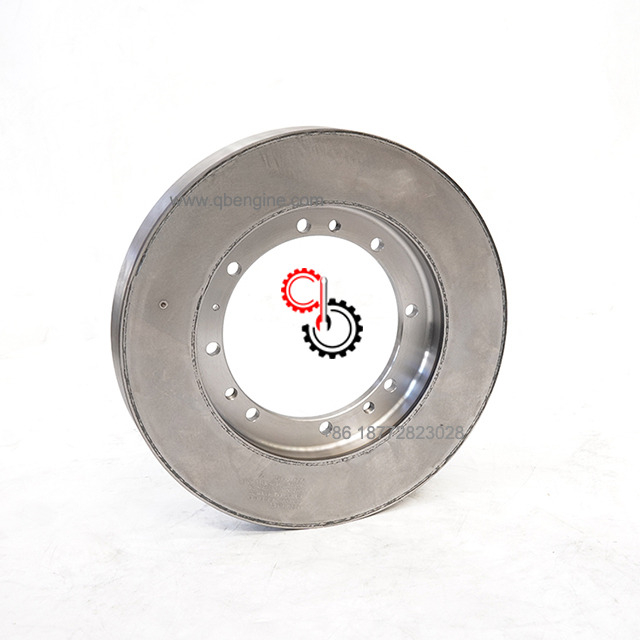

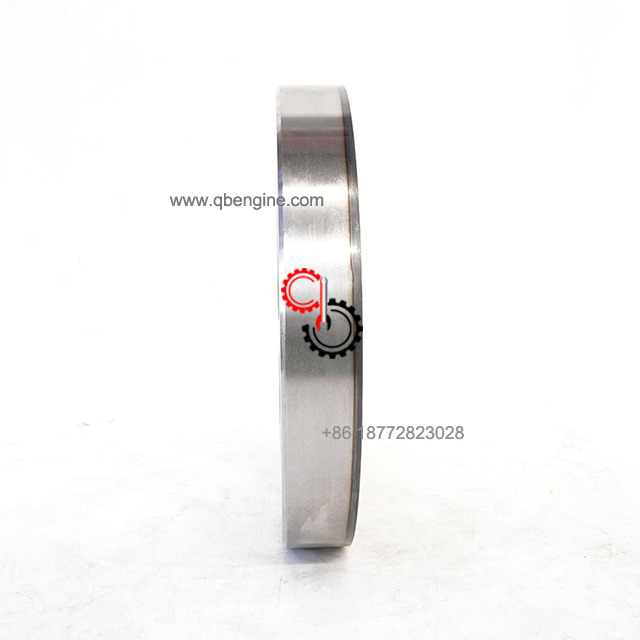

Original Cummins K38 K50 Viscous Vibration Damper 3628650 Engine Spare Parts
Original Cummins K38 K50 Viscous Vibration Damper 3628650 Engine Spare Parts Original Cummins K38 K50 Viscous Vibration Damper 3628650 Engine Spare Parts
Original Cummins K38 K50 Viscous Vibration Damper 3628650 Engine Spare Parts Original Cummins K38 K50 Viscous Vibration Damper 3628650 Engine Spare Parts
Original Cummins K38 K50 Viscous Vibration Damper 3628650 Engine Spare Parts Original Cummins K38 K50 Viscous Vibration Damper 3628650 Engine Spare Parts

loading

Original Cummins K38 K50 Viscous Vibration Damper 3628650 Engine Spare Parts

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Cummins K38 K50 Viscous Vibration Damper 3628650


  • K38 K50

  • Cummins

  • 3628650

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins K38 K50 Viscous Vibration Damper 3628650 In Stock

Electronic  Parts Catalog - Option Detail
Cummins  Engines Cummins Engin Parts  G50, K50, K50-DPM, QSK50 CM2150 K107, QSK50 CM2150  MCRS, QSK50 CM2350 K108, QSK50 CM850 MCRS, QSK50 DF  CM850/CM2150 MCRS

3628650

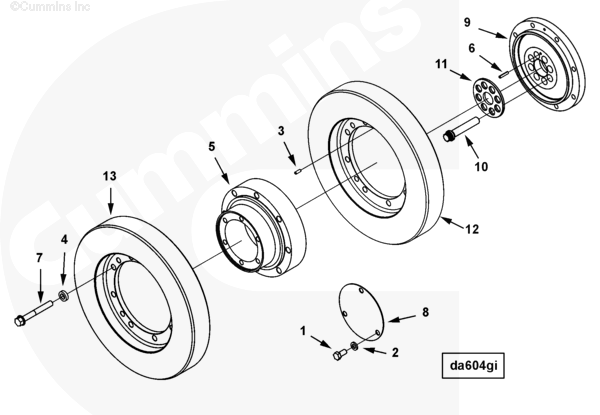

Ref No Part Number Part Description Required Remarks

DA6702 Vibration Damper
Vibration Damper
1 S 169 Hexagon Head Cap Screw 3 1/2 - 13 X 1 (in).
2 S 608 Lock Washer 3 1/2 (in).
3 131584 Roll Pin 1
4 3033627 Plain Washer 8 1/2 (in).
5 3033628 Crankshaft Adapter 1
6 3033629 Roll Pin 1
7 4382155 Fracture Resistant Screw 8
8 3036115 Protective Cover 1
9 3069776 Crankshaft Adapter 1
10 3069779 Fracture Resistant Screw 8 3/4 - 16 X 4 (in).
11 3069781 Crankshaft Spacer 1
12 3628649 Viscous Vibration Damper 1
13 3628650 Viscous Vibration Damper 1


SHIPMENT CHARACTERISTICS
Length * Width * Height 58cm*58cm*15cm
Weight 49.895KG

Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.


Previous:
Next:
3628650 viscous vibration damper k38 viscous vibration damper k50 viscous vibration damper engine shock absorber truck shock absorber shock absorber vibration damper cummins viscous vibration damper cummins vibration damper
Our rich experience in Cummins engines and spare parts makes us a reliable supplier at home and abroad.
