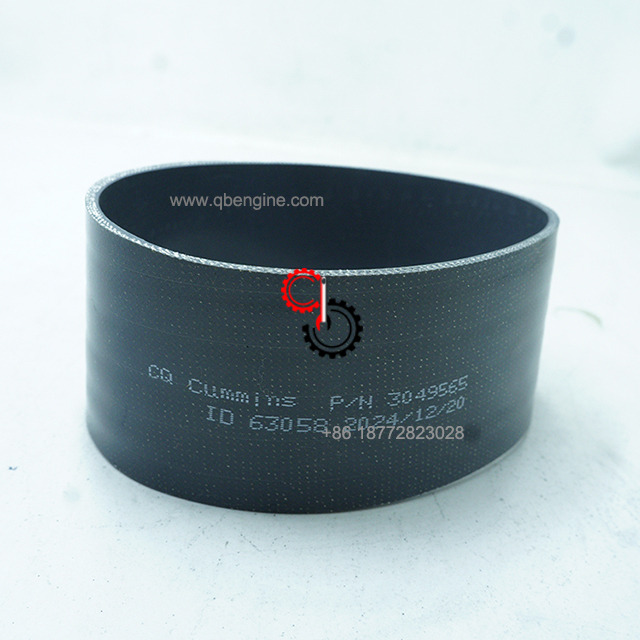

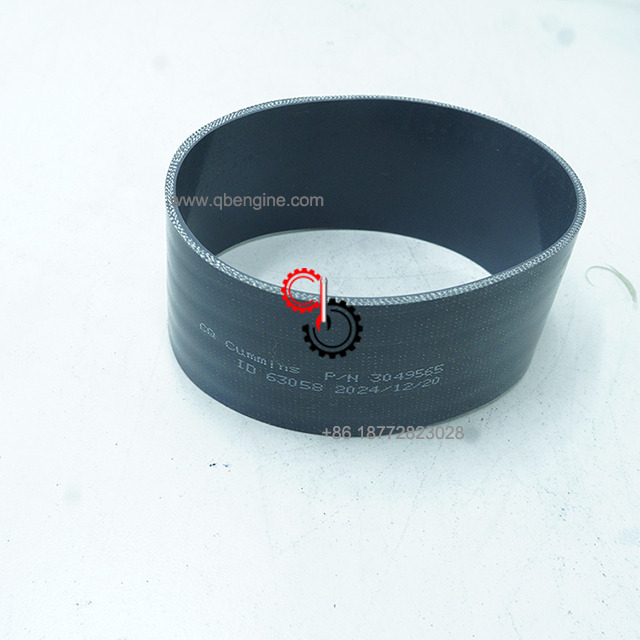

Cummins K38 K50 Plain Hose 3049565

  • K38 K50

  • Cummins

  • 3049565

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins K38 K50 Plain Hose 3049565 In Stock

Electronic  Parts Catalog - Option Detail
Cummins  Engines G50, K50, K50-DPM, QSK50  CM2150 K107, QSK50 CM2150 MCRS, QSK50 CM2350 K108, QSK50 CM850  MCRS, QSK50 DF CM850/CM2150 MCRS

3049565

Ref No Part Number Part Description Required Remarks

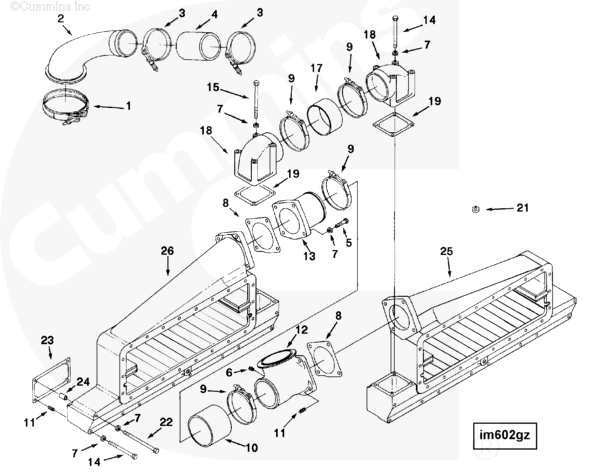

IM6023-06 Intake Manifolds
Air intake manifolds for  use...(More)
1 186917 V Band Clamp 2
2 3632608 Air Crossover Connection 2
3 3063809 T-Bolt Clamp 4 3 3/4 in.
4 4080609 Hump Hose 2
5 S 120 Hexagon Head Cap Screw 16 3/8 - 16 X 1 3/4 in.
6 3628605 Pipe Plug 2 1/4 - 18.
7 3036460 Spring Washer 96
8 3047665 Connection Gasket 4
9 3633975 T-Bolt Clamp 8 4 3/4 in.
10 3632407 Hump Hose 2
11 67184 B Threaded Insert 4
12 3072040 Air Crossover Connection 2
13 3628589 Air Crossover Connection 2
14 S 106 C Hexagon Head Cap Screw 40 3/8 - 16 X 4 3/4 in.
15 S 166 B Hexagon Head Cap Screw 8 3/8 - 16 X 5 3/4 Inch.
17 3049565 Plain Hose 2
18 3058814 Air Intake Connection 4
19 3179028 Connection Gasket 4
21 62279 Mounting Spacer 8
22 69028 Hexagon Head Cap Screw 32
23 206277 Intake Manifold Gasket 16
24 3014304 Rectangular Ring Seal 32
25 3627378 Air Intake Manifold 2 Left Rear, Right Front
26 3627377 Air Intake Manifold 2 Left Front, Right Rear


SHIPMENT CHARACTERISTICS
Length * Width * Height 6cm*12cm*12cm
Weight 0.082KG


Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
