QST30
Cummins
3092971 6215-41-1110
1-7 days
Genuine Original package or Ne
6 Months
Availability: | |
---|---|
Quantity: | |
PDF Export | |

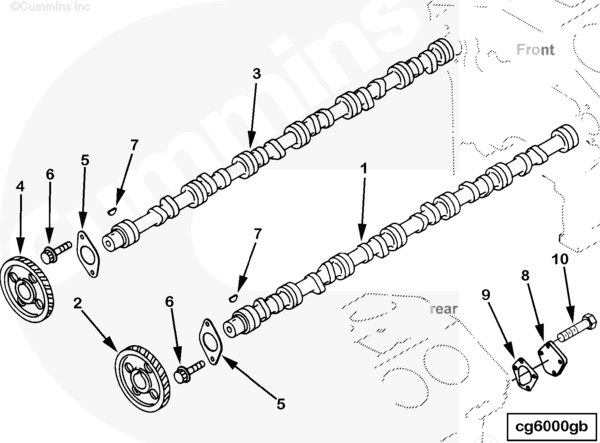

Electronic Parts Catalog - Option Detail | ||||
Cummins Engines | QST30 CM2350 T101, QST30 CM552, QST30 CM850 |
Ref No | Part Number | Part Description | Required | Remarks |
PP43983 | Camshaft | Camshaft | ||
1 | 3092974 | Camshaft | 1 | Left |
2 | 3092496 | Camshaft Gear | 1 | Left |
3 | 3092971 | Camshaft | 1 | |
4 | 3092972 | Camshaft Gear | 1 | Right |
5 | 3092497 | Thrust Bearing Plate | 2 | |
6 | 3093751 | Hexagon Head Cap Screw | 4 | M12 X 1.75 X 20. |
7 | 3093787 | Plain Woodruff Key | 2 | |
8 | 3092861 | Camshaft Cover | 2 | |
9 | 4295573 | Camshaft Cover Gasket | 2 | |
10 | 3094532 | Hexagon Head Cap Screw | 8 | M12 X 1.75 X 25. |
Small Tips for Quick Service:
If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.
For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
Electronic Parts Catalog - Option Detail | ||||
Cummins Engines | QST30 CM2350 T101, QST30 CM552, QST30 CM850 |
Ref No | Part Number | Part Description | Required | Remarks |
PP43983 | Camshaft | Camshaft | ||
1 | 3092974 | Camshaft | 1 | Left |
2 | 3092496 | Camshaft Gear | 1 | Left |
3 | 3092971 | Camshaft | 1 | |
4 | 3092972 | Camshaft Gear | 1 | Right |
5 | 3092497 | Thrust Bearing Plate | 2 | |
6 | 3093751 | Hexagon Head Cap Screw | 4 | M12 X 1.75 X 20. |
7 | 3093787 | Plain Woodruff Key | 2 | |
8 | 3092861 | Camshaft Cover | 2 | |
9 | 4295573 | Camshaft Cover Gasket | 2 | |
10 | 3094532 | Hexagon Head Cap Screw | 8 | M12 X 1.75 X 25. |
Small Tips for Quick Service:
If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.
For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
