Cummins / Cummins Parts / Fan Support, Fan, Idler Gear, Belt Tensioner, Fan Pulley / Original Cummins Engine Parts Idler Gear ISF QSF 5272961 5262659

Original Cummins Engine Parts Idler Gear ISF QSF 5272961 5262659

Name: Original Cummins Engine Parts Idler Gear ISF QSF 5272961 5262659
Brand: Cummins
Rating: 5.0 (24 reviews)

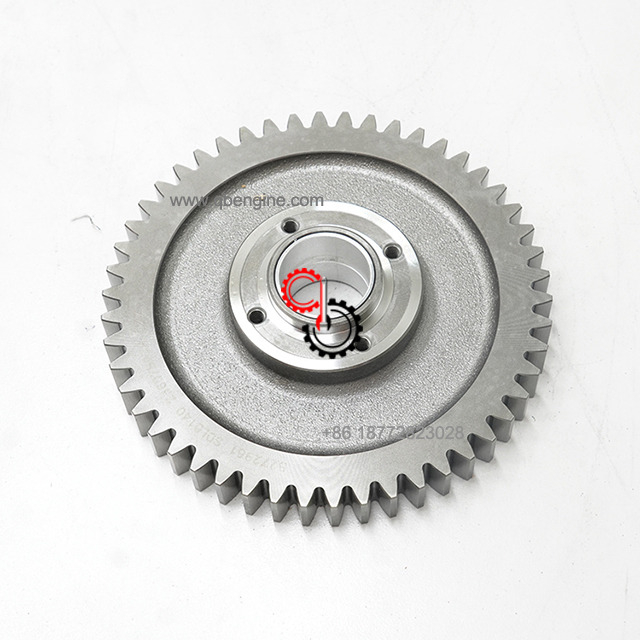

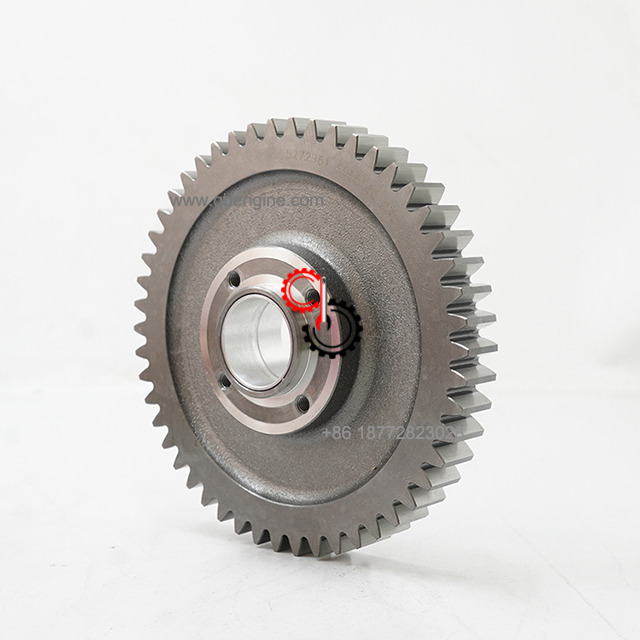

Cummins Idler Gear ISF QSF 5272961 5262659

Model:
ISF QSF
Brand:
Cummins
Code:
5272961 5262659
Delivery Period:
1-7 days
Package:
Genuine Original package or Ne
Warranty:
6 Months

Availability:

Quantity:



Inquire Add to Basket PDF Export

Product Description

Cummins Idler Gear ISF QSF 5272961 5262659 In Stock

Electronic Parts Catalog - Option Detail
Cummins Engines	4B3.9, 6A3.4, 6B5.9, B GAS INTERNATIONAL CM556, B4.5, B4.5 CM2350 B129B, B4.5 CM2350 B146C, B4.5 CM2350 B147B, B4.5 RGT, B4.5S, B5.9 G, B5.9 GAS PLUS CM556, B5.9 LPG, B5.9 LPG PLUS CM556, B6.7 CM2350 B121B, B6.7 CM2350 B135B, B6.7 CM2350 B136C, B6.7 CM2350 B148B, B6.7 G CMOH6.0 B125, B6.7N CM2380 B150B, B6.7S, F3.8 CM2350 F120B, F3.8 CM2350 F128C, F3.8 CM2350 F132B, F3.8 F102, G3.9, G5.9, G5.9 CM558, ISB (CHRYSLER), ISB CM2150, ISB CM2150 E, ISB CM550, ISB CM850, ISB/ISD4.5 CM2150 B119, ISB/ISD4.5 CM2150 SN, ISB/ISD6.7 CM2150 B120, ISB/ISD6.7 CM2150 SN, ISB/ISD6.7 CM2880 B126, ISB3.9 CM2220 B107, ISB4.5 CM2150, ISB5.9G CM2180, ISB6.7 2010 DCX PICKUP, ISB6.7 2013 DCX CHASSIS CAB, ISB6.7 CM2150 SQ, ISB6.7 CM2250, ISB6.7 CM2350 B101, ISB6.7 CM2350 B103, ISB6.7 CM2350 B142, ISB6.7 CM2670 B153B, ISB6.7 G CM2180 B118, ISBE CM2150, ISBE CM800, ISBE2/ISBE3 CM850, ISBE4 CM850, ISD4.5 CM2150, ISD6.7 CM2880 D101, ISF2.8 CM2220, ISF2.8 CM2220 AN, ISF2.8 CM2220 EC, ISF2.8 CM2220 ECF2, ISF2.8 CM2220 F101, ISF2.8 CM2220 F117, ISF2.8 CM2220 F122, ISF2.8 CM2220 F126, ISF2.8 CM2220 F129, ISF2.8 CM2220 IAN, ISF3.8 CM2220, ISF3.8 CM2220 AN, ISF3.8 CM2220 F103, ISF3.8 CM2220 F110, ISF3.8 CM2220 F116, ISF3.8 CM2220 F134B, ISF3.8 CM2220 IAN, ISF3.8 CM2350 F109, ISF4.5 CM2220 F123, ISG11 CM2880 G106, ISG11 CM2880 G108, ISG12 CM2880 G107, ISG12 CM2880 G109, ISG12 G CMOH6.0 G111, QSB3.9 30 CM550, QSB3.9 CM2880 B138, QSB4.5 30 CM550, QSB4.5 CM2150 B108, QSB4.5 CM2250 B131, QSB4.5 CM2250 EC, QSB4.5 CM2350 B106, QSB4.5 CM2350 B122

5272961

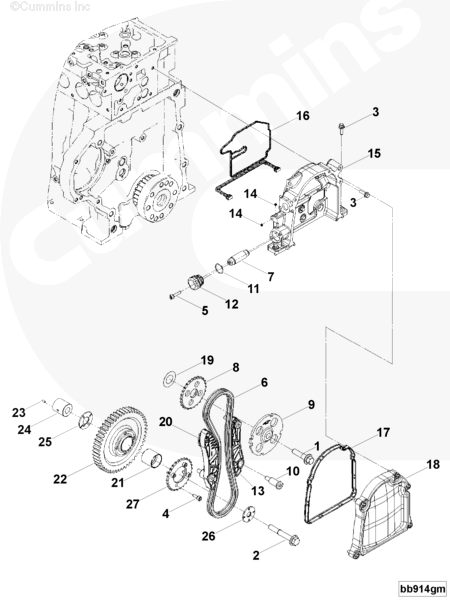

Ref No	Part Number	Part Description	Required	Remarks
	BB9567	Rear Gear Housing		Rear Gear Housing
1	3093940	Hexagon Flange Head Cap Screw	1
2	3864113	Hexagon Flange Head Cap Screw	1
3	3901865	Hexagon Flange Head Cap Screw	8	M6 X 1.00 X 20.
4	3906391	Socket Head Cap Screw	4	M6 X 1.00 X 16.
5	4895877	Socket Head Cap Screw	2
6	4982040	Chain	1
7	5267974	Chain Tensioner	1
8	5255270	Camshaft Sprocket	1
9	5267993	Speed Indicator Ring	1
10	5255271	Shoulder Cap Screw	3
	5340699	Actuator Cap	1
11	5340700	O-Ring Seal	1
12	5340701	Actuator Cap	1
13	5259767	Chain Guide	1
	5302852	Gear Housing	1
14	205227	Expansion Plug	2
15	5302851	Gear Housing	1
16	5264477	Gear Housing Seal	1
	5264443	Chain Drive Cover	1
17	5263530	Chain Drive Cover Seal	1
18	5264444	Chain Drive Cover	1
19	5262030	Friction Enhancing Shim	1
20	5267973	Chain Guide	1
	5272961	Idler Gear	1
21	5272960	Bushing	1
22	5262658	Idler Gear	1
	5262661	Idler Shaft	1
23	4982085	Roll Pin	1	Purchase P/N 5262661.
24	5262660	Idler Shaft	1
25	5262662	Gear Retainer	1
26	5262663	Gear Retainer	1
27	5254871	Drive Sprocket	1

SHIPMENT CHARACTERISTICS
Length * Width * Height	18.5cm18.5cm12.5cm
Weight	2.476KG

Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.

For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
