Cummins / Cummins Parts / Alternator, Starter Motor, Turbocharger / Original Cummins Diesel Engine Parts Compressor HC3 Housing 3521919

Original Cummins Diesel Engine Parts Compressor HC3 Housing 3521919

Name: Original Cummins Diesel Engine Parts Compressor HC3 Housing 3521919
Brand: Cummins
SKU: 585532528
Rating: 5.0 (48 reviews)

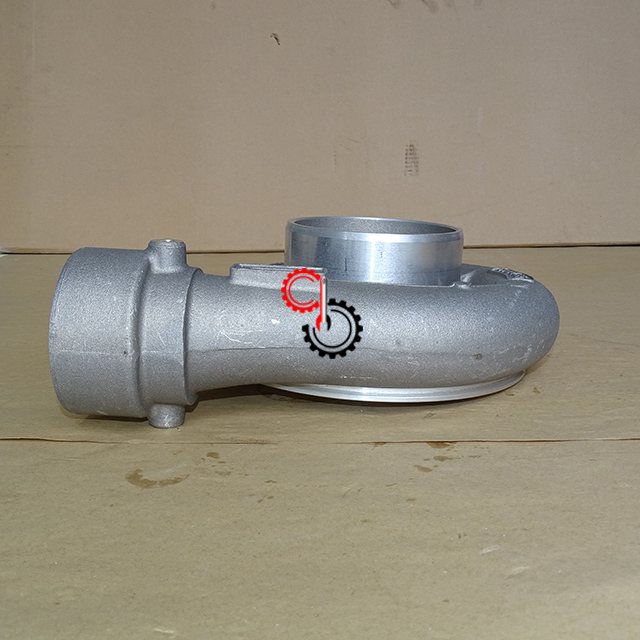

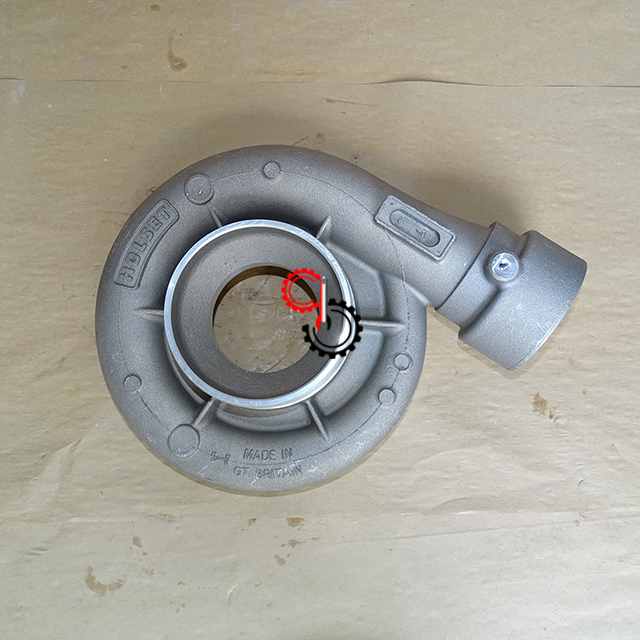

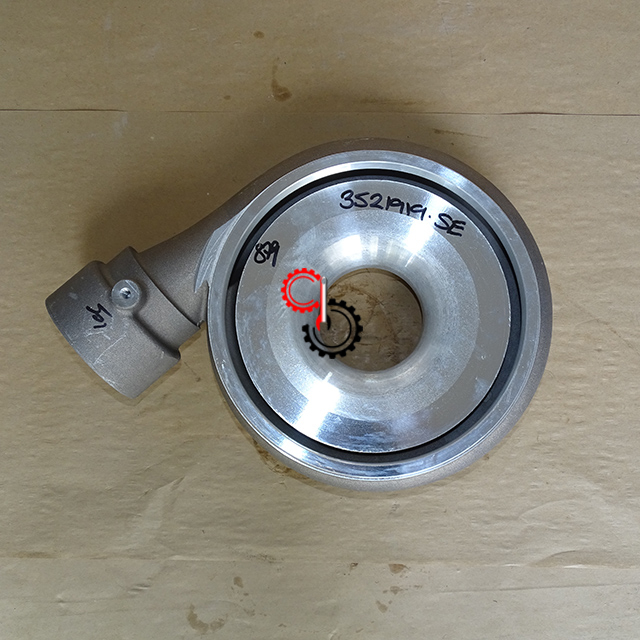

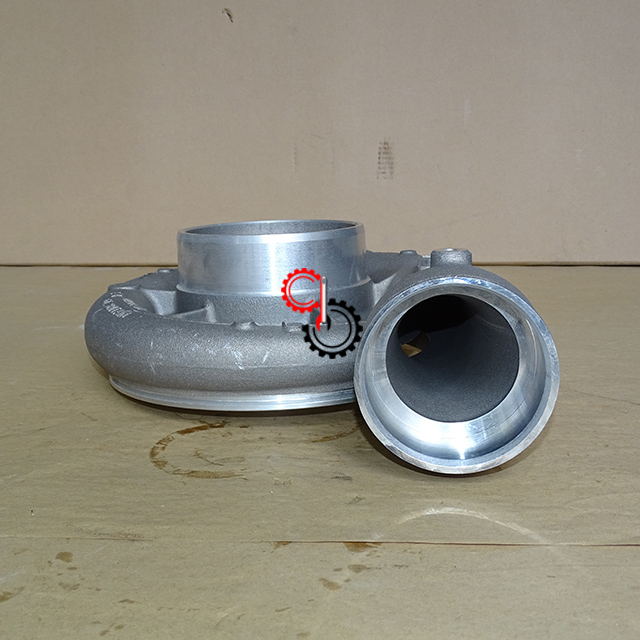

Cummins Compressor HC3 Housing 3521919

Supersession Part Number:	3521919
weigt(kg):	5.913
Size:	34cm34cm18cm
Availability:

Quantity:



Inquire Add to Basket PDF Export

Electronic Parts Catalog - Option Detail
Engines	GTA38, K38, KTA38GC CM558, QSK38 CM2150 K106, QSK38 CM2150 MCRS, QSK38 CM850 MCRS

3521919

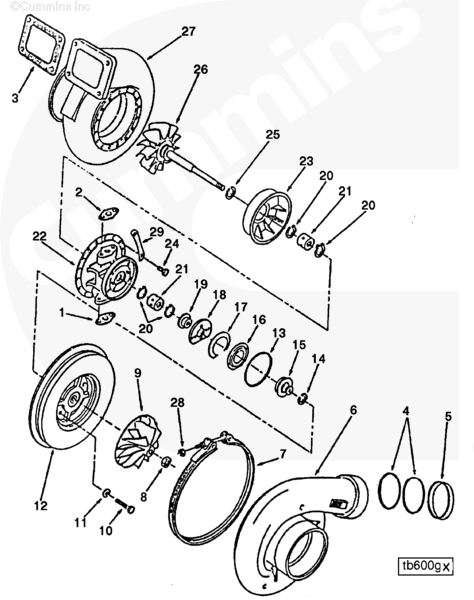

Cart	Ref No	Part Number	Part Description
		PP6049	Turbocharger
	3801695	Turbocharger	2
1	201048	Connection Gasket	1
2	201049	Connection Gasket	1
3	206576	Turbocharger Gasket	1
4	3023066	O-Ring Seal	2
5	3023129	Dust Seal	1
	3594034	Turbocharger	1
6	3521919	Compressor Housing	1
7	3528109	V Band Clamp	1
8	3519535	Lock Nut	1
9	3521918	Turbocharger Compressor Impeller	1
10	3525073	Hexagon Head Set Screw	4
11	3504967	Plain Washer	4
12	3524420	Turbocharger Diffuser	1
13	3502449	Rectangular Ring Seal	1
14	3521442	Split Ring Seal	1
15	3523980	Oil Slinger	1
16	3524419	Oil Baffle	1
17	3524418	Shim	1
18	3536914	Turbocharger Thrust Bearing	1
19	3591522	Thrust Collar	1
20	3519641	Retaining Ring	4
21	3519627	Turbocharger Bearing	2
22	3594555	Turbocharger Bearing Housing	1
23	3536588	Turbocharger Heat Shield	1
24	3521225	Hexagon Head Set Screw	8
25	3523412	Split Ring Seal	1
26	3521033	Shaft Wheel Rotor	1
27	3522911	Turbine Housing	1
28	3529372	Regular Hexagon Nut	1
29	3522904	Lock Plate	4
