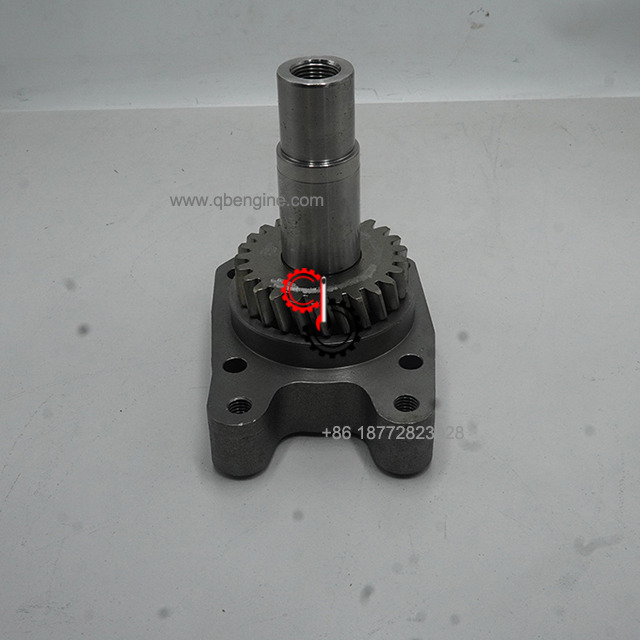

Cummins / Products / OEM K19 QSK19 Engine Parts 3086132 Cummins Water Pump Shaft 3086132

OEM K19 QSK19 Engine Parts 3086132 Cummins Water Pump Shaft 3086132

Name: OEM K19 QSK19 Engine Parts 3086132 Cummins Water Pump Shaft 3086132
Brand: Cummins
Rating: 5.0 (1 reviews)

Cummins K19 QSK19 Water Pump Shaft 3086132

Model:
K19 QSK19
Brand:
Cummins
Code:
3086132
Delivery Period:
1-7 days
Package:
Genuine Original package or Ne
Warranty:
6 Months

Availability:

Quantity:



Inquire Add to Basket PDF Export

Product Description

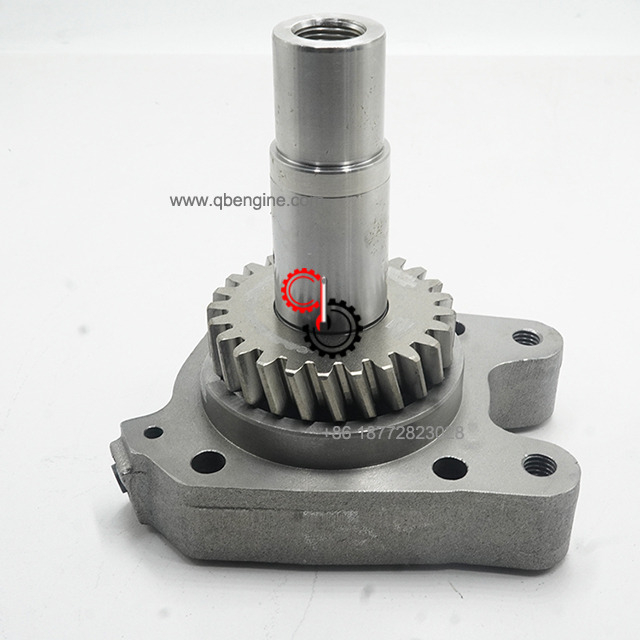

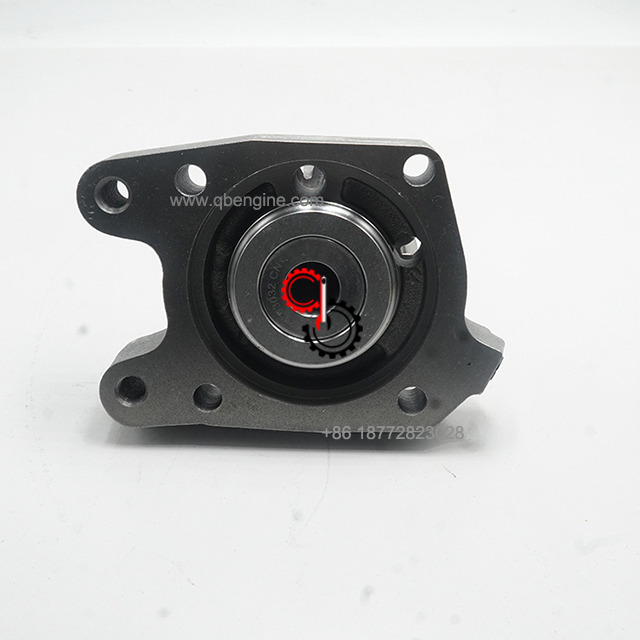

Cummins K19 QSK19 Water Pump Shaft 3086132 In Stock

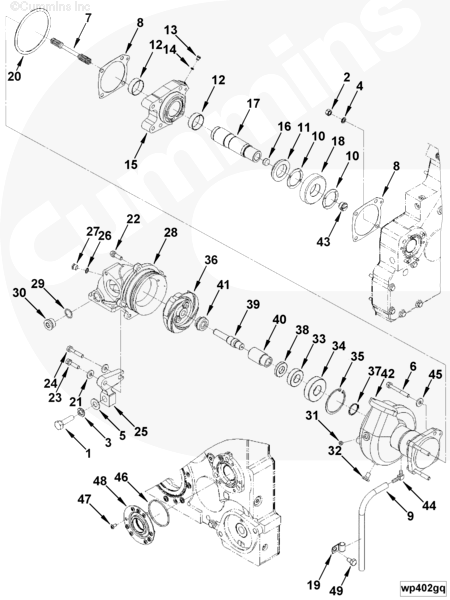

Electronic Parts Catalog - Option Detail
Cummins Engines	K19, KTA19 G CMEICS K123, KTA19GC, KTA19GC CM558, QSK19 CM2150 MCRS, QSK19 CM2350 K105, QSK19 CM500, QSK19 CM850 MCRS, QSK19G

3086132

Ref No	Part Number	Part Description	Required	Remarks
	WP4706-10	Water Pump		Water pump...(More)
1	S 103 A	Hexagon Head Cap Screw	1	5/8 - 11 X 2 in.
2	S 205	Regular Hexagon Nut	1	3/8 - 24 UNF.
3	S 603	Lock Washer	1	5/8 in.
4	S 604	Lock Washer	1	3/8 in.
5	S 658	Plain Washer	1	5/8 in.
6	3012476	Captive Washer Cap Screw	3	3/8 - 16 X 3 in.
7	3202007	Water Pump Shaft	1
8	3202283	Water Pump Gasket	2
9	2888750	Plain Hose	1
	3086132	Water Pump Shaft	1	Recon Equivalent 3086132 RX
10	3026556	Thrust Bearing	2
11	3034721	Shaft Retainer	1
	3086177	Water Pump Support	1
12	205156	Bushing	2
13	3056003	Threaded Plug	1
14	3056415	O-Ring Seal	1
15	4922207	Water Pump Support	1	Purchase 3086177
	3329524	Water Pump Shaft	1	Purchase 3086132
16	205498	Solid Plug	1
17	3086123	Water Pump Shaft	1	Purchase 3086132
18	4953334	Water Pump Gear	1
19	68152	Clip	1	#4
	4998218	Water Pump	1
20	145623	O-Ring Seal	1
21	3005594	Plain Washer	2	3/8 Inch.
22	3010596	Captive Washer Cap Screw	1	3/8 - 16 x 1 1/4 in.
23	3012472	Captive Washer Cap Screw	1	3/8 - 16 X 1 1/2 in.
24	3012474	Captive Washer Cap Screw	1	3/8 - 16 x 2 in.
25	3036096	Water Pump Brace	1
	3037536	Threaded Plug	1	9/16 - 18 UNF
26	3037537	O-Ring Seal	1
27	3040813	Threaded Plug	1	9/16 - 18 UNF
28	3086259	Water Inlet Connection	1
	3202101	Threaded Plug	1	1 1/16 - 12 un.
29	3046943	O-Ring Seal	1
30	3050897	Threaded Plug	1
	4998217	Water Pump	1	Serviced as 2881826
31	S 911 B	Pipe Plug	1	1/8 NPT
32	S 962	Pipe Plug	1	1 NPT.
33	S 16002	Ball Bearing	1
34	S 16069	Ball Bearing	1
35	70183	Retaining Ring	1
36	205243	Water Pump Impeller	1
37	205258	Retaining Ring	1
38	206948	Oil Seal	1
	3042827	Water Pump Shaft	1
39	205158	Water Pump Shaft	1	Purchase 3042827
40	3040833	Water Pump Shaft	1	Purchase 3042827
41	3609826	Water Pump Seal	1
42	4998214	Water Pump Body	1	Purchase 4998217
43	3200968	Threaded Plug	1	7/8 - 14 UNF.
44	4998211	Vent Fitting	1
45	127362	Plain Washer	3	3/8 in.
46	3086120	Rectangular Ring Seal	1
47	3086121	Round Head Cap Screw	6
48	3096480	Oil Seal	1	Serviced as 3804705
49	3071225	Captive Washer Cap Screw	1	3/8 - 16 x 3/4 in.
	2881826	Water Pump Kit	A/R
	3804705	Accessory Drive Seal Kit	A/R

SHIPMENT CHARACTERISTICS
Length * Width * Height	21cm20cm13cm
Weight	5.171KG
