Cummins / Products / OEM Grade Cummins Engine Parts 3697151 Turbo Coolant Supply Tube 3697151
OEM Grade Cummins Engine Parts 3697151 Turbo Coolant Supply Tube 3697151
OEM Grade Cummins Engine Parts 3697151 Turbo Coolant Supply Tube 3697151 OEM Grade Cummins Engine Parts 3697151 Turbo Coolant Supply Tube 3697151
OEM Grade Cummins Engine Parts 3697151 Turbo Coolant Supply Tube 3697151 OEM Grade Cummins Engine Parts 3697151 Turbo Coolant Supply Tube 3697151
OEM Grade Cummins Engine Parts 3697151 Turbo Coolant Supply Tube 3697151 OEM Grade Cummins Engine Parts 3697151 Turbo Coolant Supply Tube 3697151

loading

OEM Grade Cummins Engine Parts 3697151 Turbo Coolant Supply Tube 3697151

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

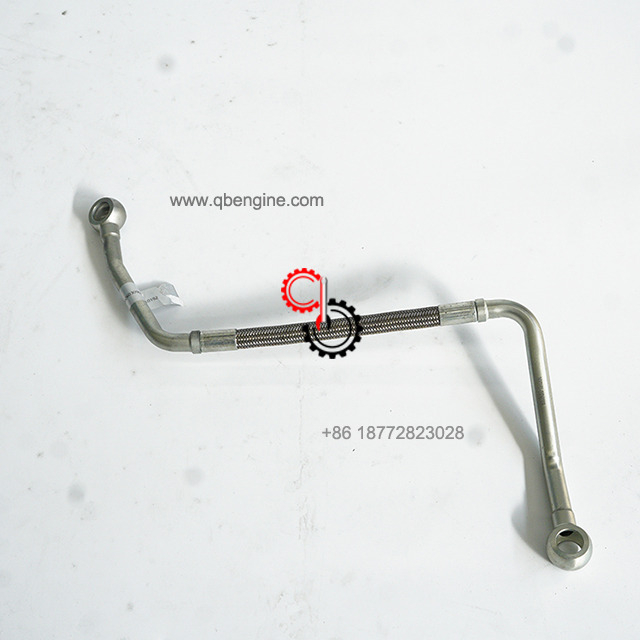

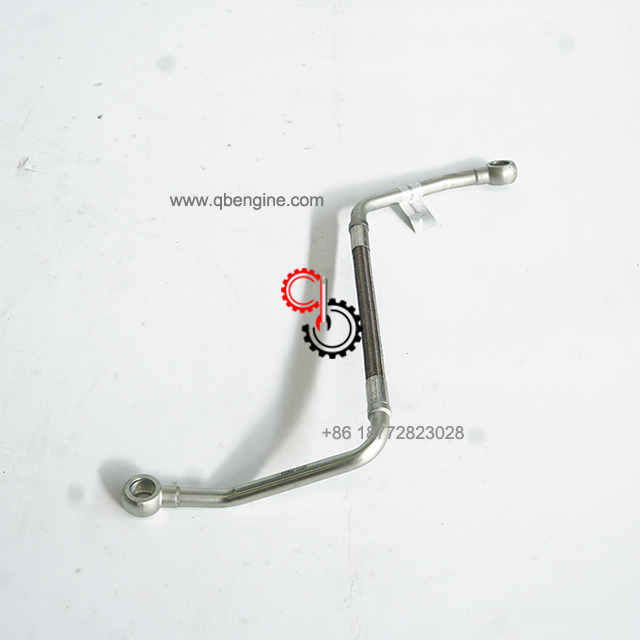

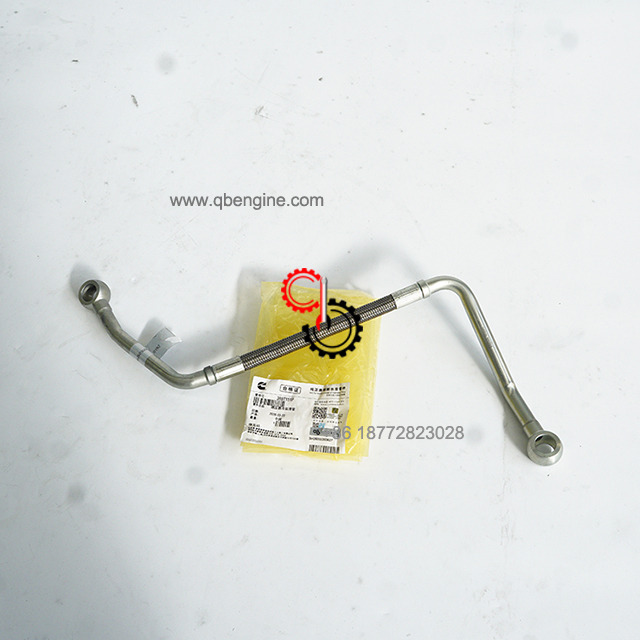

Cummins Turbo Coolant Supply Tube 3697151

  • original

  • cummins

  • 3697151

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins Turbo Coolant Supply Tube 3697151 In Stock

3697151

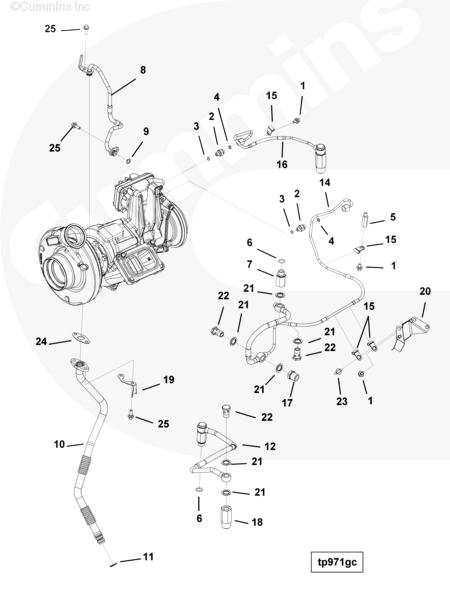

Ref No Part Number Part Description Required Remarks

TP2896 Turbocharger Plumbing

1 3093956 Hexagon Flange Head Cap Screw 4 M8 X 1.25 X 12.

3684267 Male Union 2
2 3684266 Male Union 1
3 3684268 O-Ring Seal 1
4 3684269 O-Ring Seal 1
5 3696973 Threaded Spacer 1

3697139 Reducing Adapter 2
6 3678786 O-Ring Seal 1 M18
7 3697140 Reducing Adapter 1
8 3697141 Turbocharger Oil Supply Tube 1
9 4989613 O-Ring Seal 2

3697143 Turbocharger Oil Drain Connection 1
10 3697144 Turbocharger Oil Drain Connection 1
11 3928624 O-Ring Seal 2
12 3697151 Turbocharger Coolant Drain Tube 1

3697183 Water Inlet Tube 1
13 3657717 Clip 3
14 3697149 Water Inlet Tube 1

3697185 Water Outlet Tube 1
15 3657717 Clip 1
16 3696910 Water Outlet Tube 1
17 3697187 Female Connector 1
18 3697188 Female Connector 2
19 3697189 Tube Retainer 1
20 3697398 Heat Shield 1
21 3963991 Sealing Washer 10
22 4940181 Banjo Connector Screw 5
23 4996922 Studded Flange Cap Screw 2
24 5264569 Oil Drain Gasket 1 Same As 3937706, No Adhesive.
25 3900630 Hexagon Flange Head Cap Screw 2 M8 X 1.25 X 20

SHIPMENT CHARACTERISTICS
Length * Width * Height 56cm*3cm*2cm
Weight 0.272KG

Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
