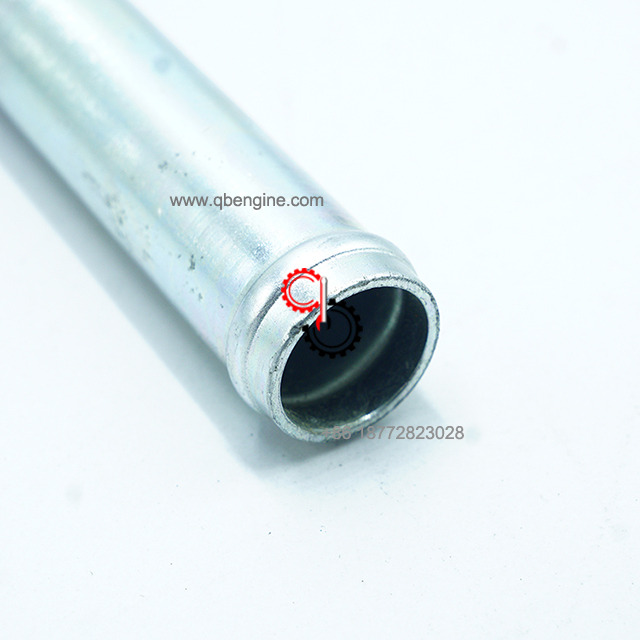

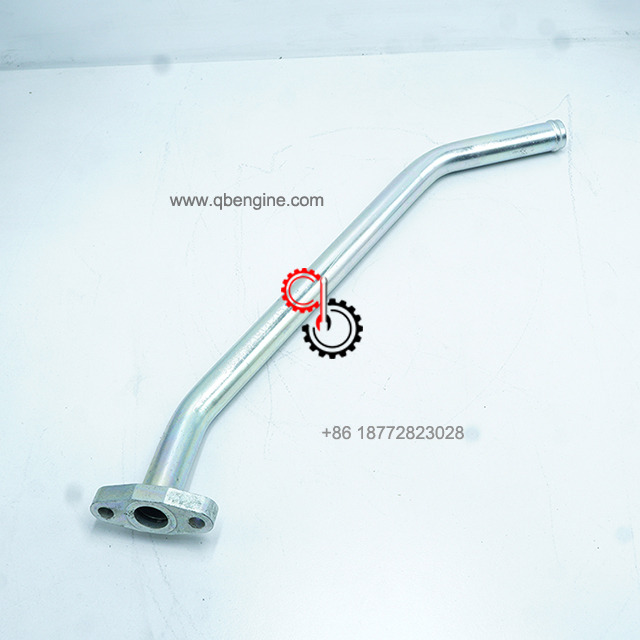

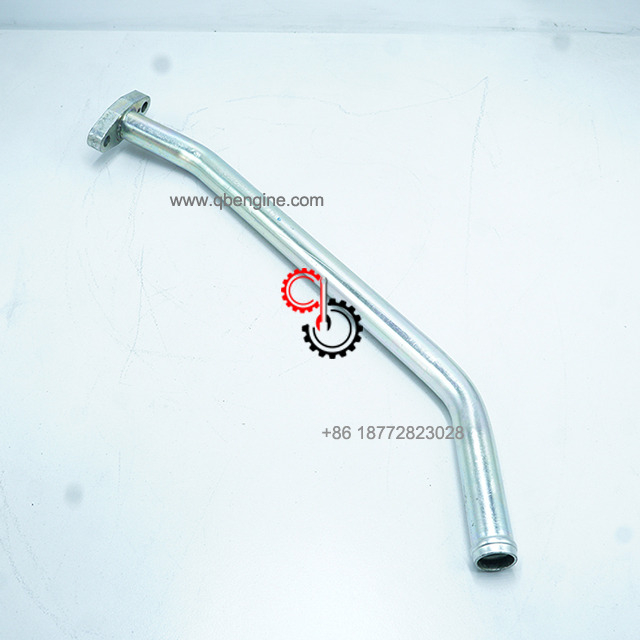

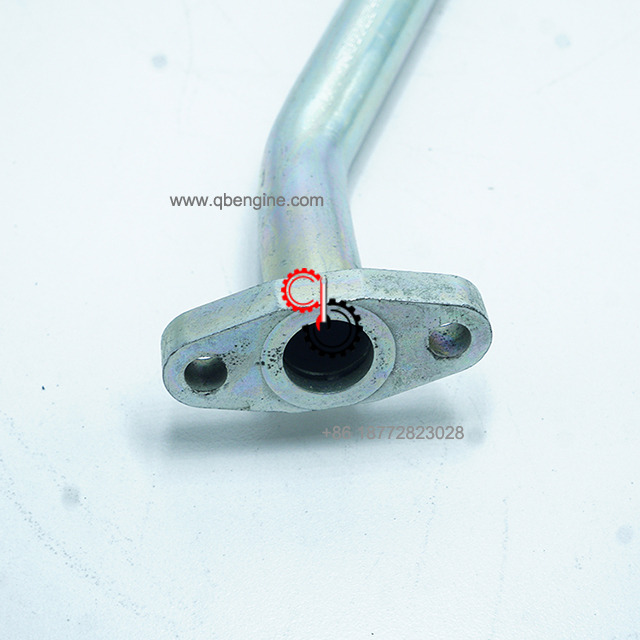

Cummins Turbocharger Oil Drain Tube 5309254

  • Original

  • Cummins

  • 5288731

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins Turbocharger Oil Drain Tube 5309254 In Stock

Cummins Engines 6C8.3, C GAS PLUS CM556, G8.3, G8.3 CM558, GTA8.3 CM558, ISC CM2150, ISC CM554, ISC CM850, ISC8.3 CM2250, ISC8.3 G CM2180 C101, ISL CM2150, ISL CM554, ISL CM850, ISL G CM2180, ISL8.9 CM2150 L110, ISL8.9 CM2880 L112, ISL9 CM2150 SN, ISL9 CM2250, ISL9 CM2350 L101, ISL9 CM2350 L111, ISLE4 CM850, L GAS PLUS CM556, L8.9, L8.9 L121, L8.9G CMOH2.0 L125B, L9 CM2350 L116B, L9 CM2350 L119B, L9 CM2350 L120C, L9 CM2350 L123B, L9.3 L105, L9.5 L117, L9N CM2380 L124B, QSC8.3 CM2250, QSC8.3 CM2880 C102, QSC8.3 CM554, QSC8.3 CM850(CM2850), QSL9 CM2250, QSL9 CM2250 L115, QSL9 CM2350 L102, QSL9 CM2350 L107, QSL9 CM2350 L118, QSL9 CM2350 L122, QSL9 CM554, QSL9 CM850(CM2850), QSL9 G CM558, QSL9 M CM2250 L106, QSL9.3 CM2880 L113

5309254

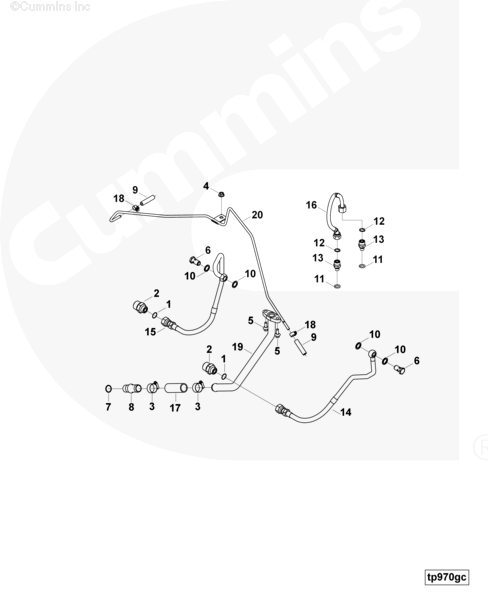

Ref No Part Number Part Description Required Remarks

TP97807 Turbocharger Plumbing
Turbocharger Plumbing...(More)

3095295 Male Adapter Union 2
1 3627695 O-Ring Seal 1
2 3627699 Male Union 1
3 3600494 Hose Clamp 2 13/16 - 1 5/16 Inch.
4 3900589 Hexagon Flange Nut 1 M8 X 1.25
5 3900630 Hexagon Flange Head Cap Screw 2 M8 X 1.25 X 20
6 3924725 Banjo Connector Screw 2 M14 X 1.50 X 26.
7 3931824 O-Ring Seal 1
8 3931827 Turbocharger Oil Drain Tube 1
9 3938056 Plain Hose 2
10 3963988 Sealing Washer 4 M14.

4940183 Male Union 2
11 3678603 O-Ring Seal 1
12 3922794 O-Ring Seal 1
13 4940182 Male Union 1 Available Through P/N 4940183
14 4945594 Water Transfer Tube 1
15 4945595 Water Transfer Tube 1
16 4990441 Flexible Hose 1
17 5263328 Plain Hose 1
18 5271773 Hose Clamp 4
19 5309254 Turbocharger Oil Drain Tube 1
20 5317706 Air Fuel Control Tube 1

SHIPMENT CHARACTERISTICS
Length * Width * Height 45cm*6cm*3cm
Weight 0.422KG


Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number orEngine Serial Number ready, so that we can give you the best price possible along with our expertise.
