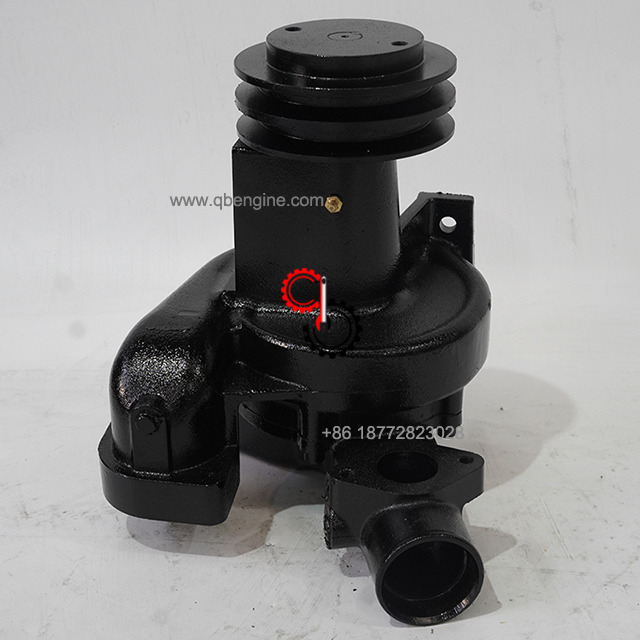

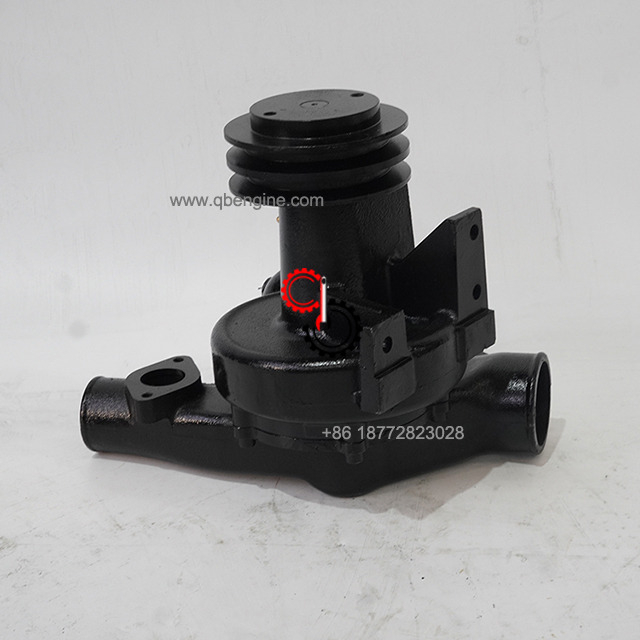

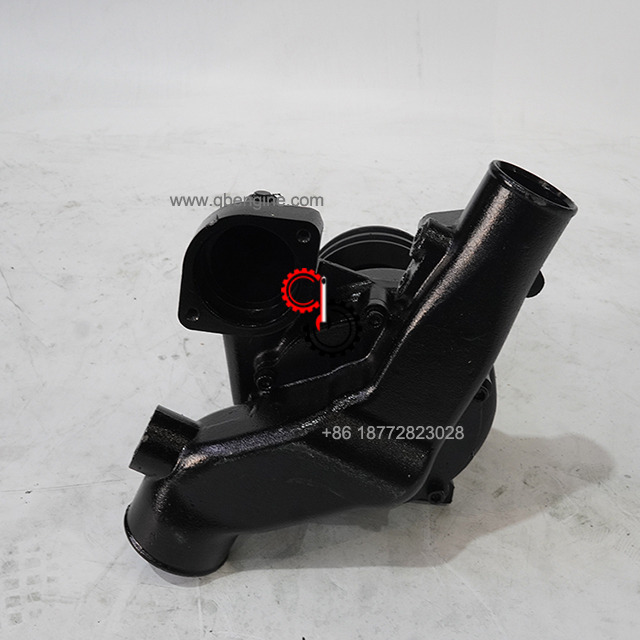

Cummins V28 VTA28 K19 Water Pump 3009969 3011723

  • V28 VTA28

  • Cummins

  • 3009969 3011723

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins V28 VTA28 Water Pump 3009969 3011723 In Stock

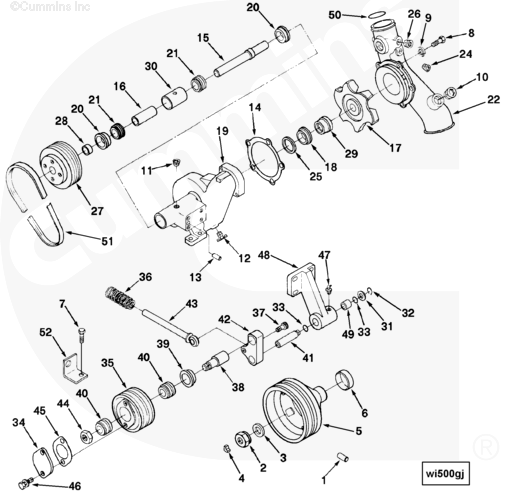

Electronic  Parts Catalog - Option Detail
Cummins  Engines G28, V28

3009969

Ref No Part Number Part Description Required Remarks

WI5043-01 Water Inlet Connection
Water inlet connection....(More)
1 70550 Pin Dowel 1
2 191517 Lock Nut 1
3 194380 Plain Washer 1 7/8"
4 3008947 Keyway Seal 1
5 3015113 Accessory Drive Pulley 1
6 190397 Wear Sleeve 1 Serviced as 3803852

3035843 Accessory Drive Pulley 1

3009969 Water Pump And Idler Assembly 1
7 103009 Hexagon Head Cap Screw 3 7/16 - 14 X 1 1/4 in.

3011723 Water Pump 1
8 S 109 Hexagon Head Cap Screw 5 3/8 - 16 x 7/8 in.
9 S 604 Lock Washer 5 3/8 in.
10 S 907 A Pipe Plug 1 1 1/4 NPT
11 S 911 B Pipe Plug 1 1/8 NPT
12 S 962 E Draincock 1
13 69558 Pin Dowel 2
14 123078 Water Pump Gasket 1
15 209806 Water Pump Shaft 1
16 209807 Bearing Spacer 1
17 219081 Water Pump Impeller 1
18 3003350 Seal Spacer 1
19 3003351 Water Pump Body 1
20 3003353 Oil Seal 2
21 3003354 Roller Bearing 1
22 3003209 Water Pump Cover 1
24 3008470 Pipe Plug 1 1 NPT.
25 3011230 Water Pump Gasket 1
26 3013786 Pipe Plug 3 3/8 NPT.
27 3015527 Water Pump Pulley 1

209808 Water Pump Pulley 1
28 3003239 Wear Sleeve 1
29 3089056 Water Pump Seal 1
30 3046436 Bearing Spacer 1

3878763 Idler Pulley 1
31 69699 Plain Washer 1 5/8"
32 102243 Retaining Ring 1
33 145506 O-Ring Seal 2
34 207603 Idler Pulley Cover 1
35 209939 Idler Pulley 1
36 216864 Compression Spring 1
37 216869 Socket Head Cap Screw 1
38 3003208 Idler Shaft 1
39 3003353 Oil Seal 1
40 3003354 Roller Bearing 1
41 3003393 Pivot Shaft 1
42 3003394 Idler Lever 1
43 3003409 Spring Guide 1
44 3004853 Lock Nut 1
45 3014449 Flange Gasket 1
46 3015283 Captive Washer Cap Screw 2 5/16 - 18 x 3/4 in.
47 3335098 Grease Fitting 1
48 3878762 Idler Pulley Bracket 1

3877888 Idler Pulley Bracket 1
49 3060905 Bushing 2
50 122981 O-Ring Seal 2
51 3040377 V Belt 2
52 3048044 Spring Bracket 1


SHIPMENT CHARACTERISTICS
Length * Width * Height 37cm*37cm*37cm
Weight 29.484KG


Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
