Cummins / Cummins Parts / Rocker Lever Assembly, STC Tappet, Cam Follower / OEM Cummins ISX QSX X15 Engine Parts Rocker Lever Shaft 2882592 4059304
OEM Cummins ISX QSX X15 Engine Parts Rocker Lever Shaft 2882592 4059304
OEM Cummins ISX QSX X15 Engine Parts Rocker Lever Shaft 2882592 4059304 OEM Cummins ISX QSX X15 Engine Parts Rocker Lever Shaft 2882592 4059304
OEM Cummins ISX QSX X15 Engine Parts Rocker Lever Shaft 2882592 4059304 OEM Cummins ISX QSX X15 Engine Parts Rocker Lever Shaft 2882592 4059304
OEM Cummins ISX QSX X15 Engine Parts Rocker Lever Shaft 2882592 4059304 OEM Cummins ISX QSX X15 Engine Parts Rocker Lever Shaft 2882592 4059304

loading

OEM Cummins ISX QSX X15 Engine Parts Rocker Lever Shaft 2882592 4059304

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

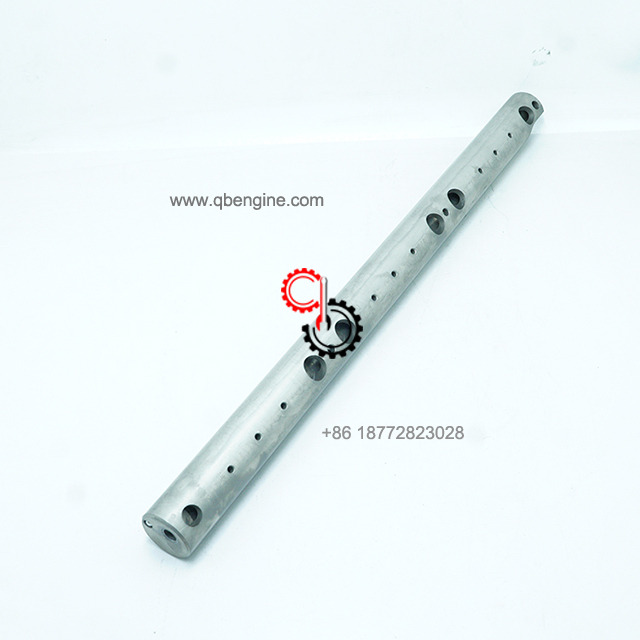

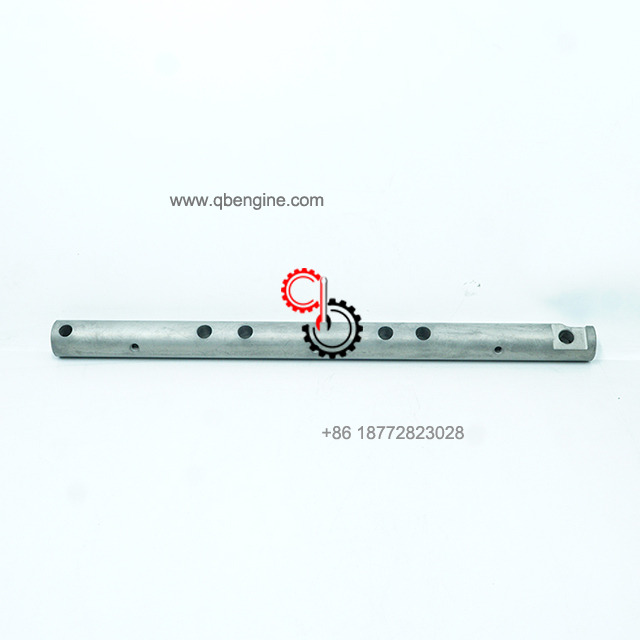

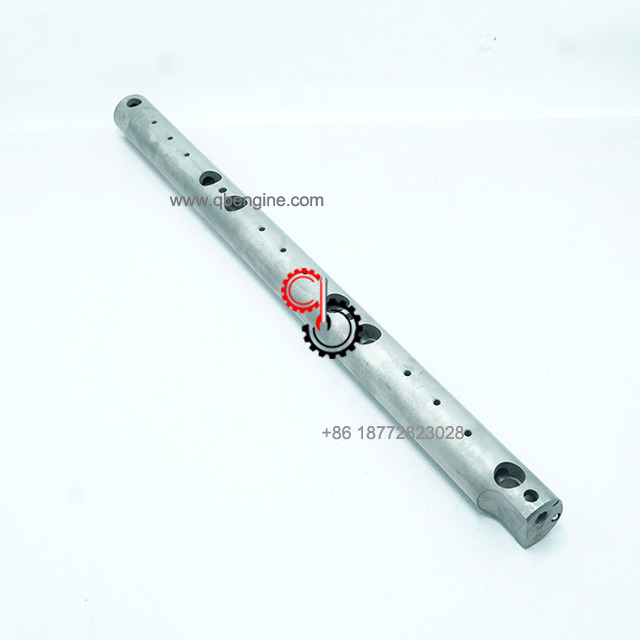

Cummins ISX QSX X15 Rocker Lever Shaft 2882592 4059304

  • ISX QSX X15

  • Cummins

  • 2882592 4059304

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins ISX QSX X15 Rocker Lever Shaft 2882592 4059304 In Stock

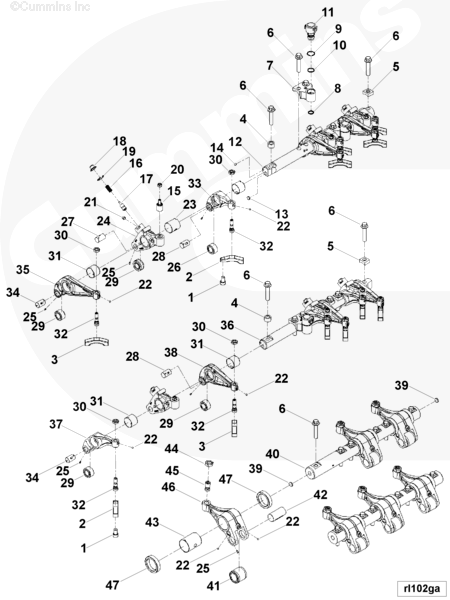

Electronic  Parts Catalog - Option Detail
Cummins  Engines ISX CM570, ISX CM870, ISX CM871, ISX CM871 E, ISX15 CM2250, ISX15 CM2250 SN, ISX15 CM2350 X101, ISX15 CM2350 X129, ISZ13 CM2150 SN, QSX11.9 CM2250 ECF, QSX15 CM2250, QSX15 CM2250 ECF, QSX15 CM2250 X115, QSX15 CM2350 X105, QSX15 CM2350 X106, QSX15 CM2350 X118, QSX15 CM570, QSZ13 CM2150 Z101, QSZ13 CM2150 Z102, R2.8 CM2220 R101B, X12 CM2350 X119B, X15 CM2350 X114B, X15 CM2350 X116B, X15 CM2350 X125M, Z14 CM2670 Z103B

2882592

Ref No Part Number Part Description Required Remarks

RL1731-17 Rocker Lever
Rocker Lever...(More)
1 3413137 Brake Actuator Plunger 6
2 4059329 Valve Crosshead 6
3 4059342 Valve Crosshead 6

4101457 Assembly , Rocker Lever Top Level  Assembly 1
4 3412351 Mounting Spacer 1
5 3679427 Retaining Clamp 1
6 3681221 Hexagon Flange Head Cap Screw 6

4026536 Engine Brake Valve 2
7 3104916 Engine Brake Valve Body 1
8 3871218 Rectangular Ring Seal 1 Jacobs 001083.
9 3871638 Rectangular Ring Seal 1 Jacobs 020229.
10 4026537 Rectangular Ring Seal 1
11 4026538 Engine Brake Solenoid 1

4059414 Rocker Lever 1

2882592 Rocker Lever Shaft 1
12 2882590 Rocker Lever Shaft 1
13 3105973 Drive Plug 2
14 3105974 Ball Plug 2

4298199 Engine Brake Lever 3
15 2882738 Engine Brake Slave Piston 1
16 2892986 Compression Spring 1
17 3413129 Check Valve 1
18 3413131 Actuator Cover 1
19 3413132 Retaining Ring 1
20 3679921 Regular Hexagon Jam Nut 1
21 2863691 Pipe Plug 1
22 3067941 Ball Plug 1
23 3413133 Bushing 1
24 3413134 Engine Brake Lever 1
25 3679504 Spiral Pin 1
26 3679914 Cam Follower Roller 1
27 3680173 Cam Follower Roller Pin 1

4298639 Rocker Lever 3 Exhaust Front.
22 3067941 Ball Plug 1
25 3679504 Spiral Pin 1
28 4026779 Cam Follower Roller Pin 1
29 4298630 Cam Follower Roller 1
30 3679694 Regular Hexagon Jam Nut 1
31 4059282 Bushing 1
32 4059377 Rocker Lever Adjusting Screw 1
33 4298631 Rocker Lever 1

4298641 Rocker Lever 3 Intake Front.
34 4026780 Cam Follower Roller Pin 1
35 4298633 Rocker Lever 1

4101458 Assembly , Rocker Lever Top Level  Assembly 1

4059415 Rocker Lever 1

2882571 Rocker Lever Shaft 1
36 2878243 Rocker Lever Shaft 1

4298199 Engine Brake Lever 3

4298640 Rocker Lever 3 Exhaust Rear.
37 4298632 Rocker Lever 1

4298642 Rocker Lever 3 Intake Rear.
38 4298634 Rocker Lever 1

4101461 Assembly , Rocker Lever Top Level  Assembly 1

3680153 Rocker Lever Assembly 1

3679418 Rocker Lever Shaft 1
39 3105972 Drive Plug 2
40 3679417 Rocker Lever Shaft 1

3680169 Rocker Lever 3
41 3679868 Cam Follower Roller 1
42 3679869 Cam Follower Roller Pin 1
43 3679870 Bushing 1
44 3680057 Regular Hexagon Jam Nut 1
45 3680058 Rocker Lever Adjusting Screw 1
46 3680167 Rocker Lever 1
47 4059197 Thrust Ring Spacer 6

4101462 Assembly , Rocker Lever Top Level  Assembly 1

3680664 Rocker Lever Assembly 1

3679418 Rocker Lever Shaft 1

3680169 Rocker Lever 3


SHIPMENT CHARACTERISTICS
Length * Width * Height 59cm*7cm*7cm
Weight 3.148KG


Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
