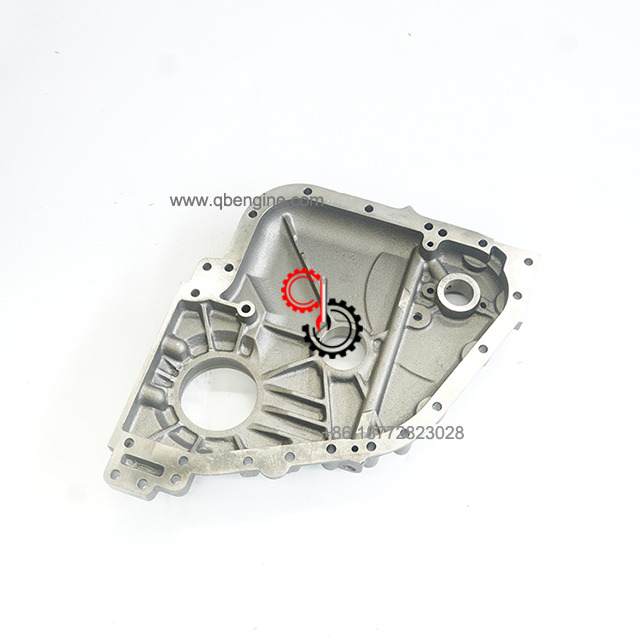

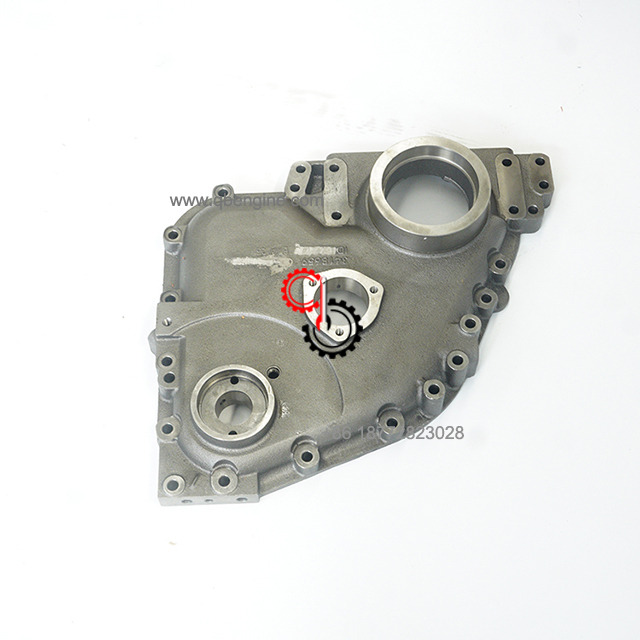

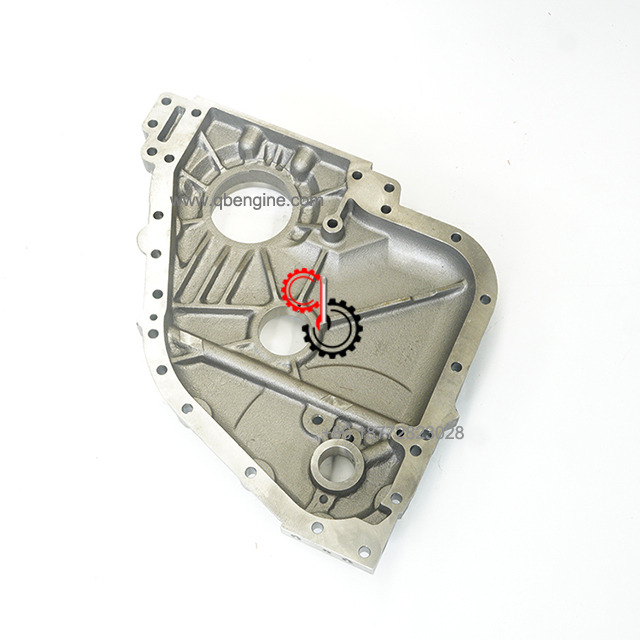

Cummins NT855 Engine Gear Cover 3419115 3418659

  • NT855

  • Cummins

  • 3419115 3418659

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins NT855  Engine Gear Cover 3419115 3418659 In Stock

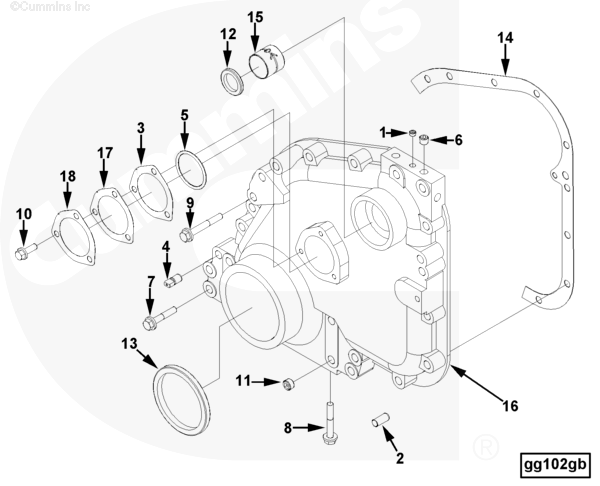

Electronic  Parts Catalog - Option Detail
Cummins  Engines NH/NT 855, NT495, NT743, NTA855 N106

3419115

Ref No Part Number Part Description Required Remarks

GG1745 Front Gear Cover
Front Gear Cover
1 S 911 B Pipe Plug 1 1/8 NPT
2 60408 Pin Dowel 1
3 65259 C Shim 1
4 70653 Diamond Dowel 1
5 215705 O-Ring Seal 1
6 3008466 Pipe Plug 1 1/4 NPT.
7 3011712 Captive Washer Cap Screw 9 7/16 - 20 X 2 3/16 Inch.
8 3011713 Captive Washer Cap Screw 1 7/16 - 20 X 2 5/8 Inch.
9 3011714 Captive Washer Cap Screw 3 7/16 - 20 X 3 Inch.
10 3011715 Captive Washer Cap Screw 3 3/8 - 16 X 1 3/16 in.
11 3013786 Pipe Plug 1 3/8 NPT.
12 3020185 Oil Seal 1
13 3020186 Oil Seal 1
14 3021704 Gear Cover Gasket 1

3419115 Gear Cover 1
15 132770 Bushing 1
16 3418659 Gear Cover 1
17 4913819 Shim 1
18 4913820 Shim 1


Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
