Cummins / Products / Marine Diesel Engine Parts Cummins QSM M11 ISM Accessory Drive 3896045

Marine Diesel Engine Parts Cummins QSM M11 ISM Accessory Drive 3896045

Name: Marine Diesel Engine Parts Cummins QSM M11 ISM Accessory Drive 3896045
Brand: Cummins
SKU: 553554828
Rating: 5.0 (10 reviews)

Cummins QSM M11 ISM Accessory Drive 3896045

Supersession Part Number:	3896045 3054927 3041046
weigt(kg):	5.392
Size:	23.7cm17.7cm20.8cm
Availability:

Quantity:



Inquire Add to Basket PDF Export

Electronic Parts Catalog - Option details
motor	L10 CELECT, L10 GAS, L10 MECHANICAL

3896045

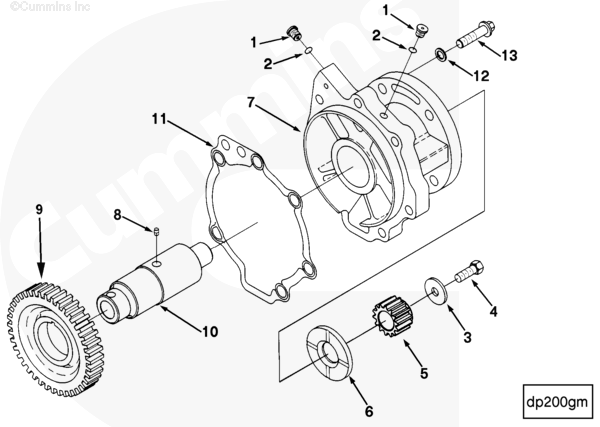

Cart	Ref No	Part Number	Part Description
		DP2013-04	Fuel pump drive
	3896045	Gear Accessory Drive Shaft
1	3033742	Threaded Plug	2
2	3034412	O-Ring Seal	1
3	170664	Plain Washer	1
4	3000173	Hexagon Head Cap Screw	1
5	3000174	Spline Coupling Hub	1
6	3028309	Thrust Bearing	1
7	3896046	Accessory Drive Support	1
	3041048	Gear And Shaft	1
8	S 3193	Groove Pin	1
9	3041042	Accessory Drive Gear	1
10	3041043	Accessory Drive Shaft	1
11	3883538	Accessory Drive Support Gasket	1
12	3882885	Plain Washer	1
13	3883123	Hexagon Flange Head Cap Screw	6
