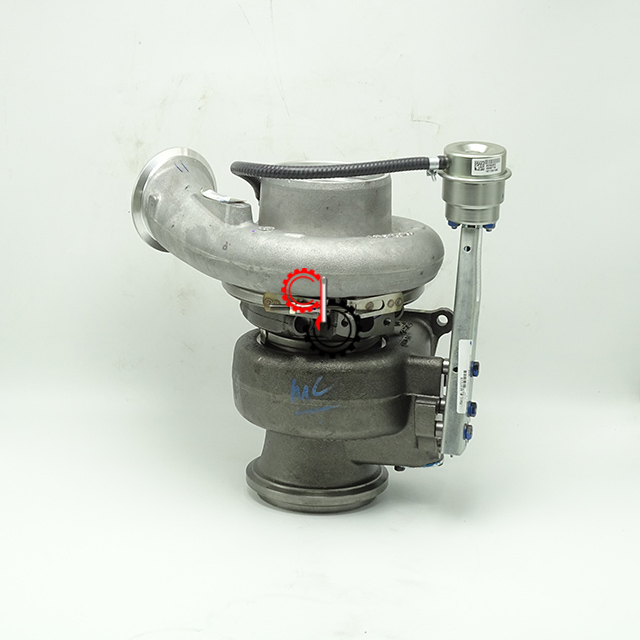

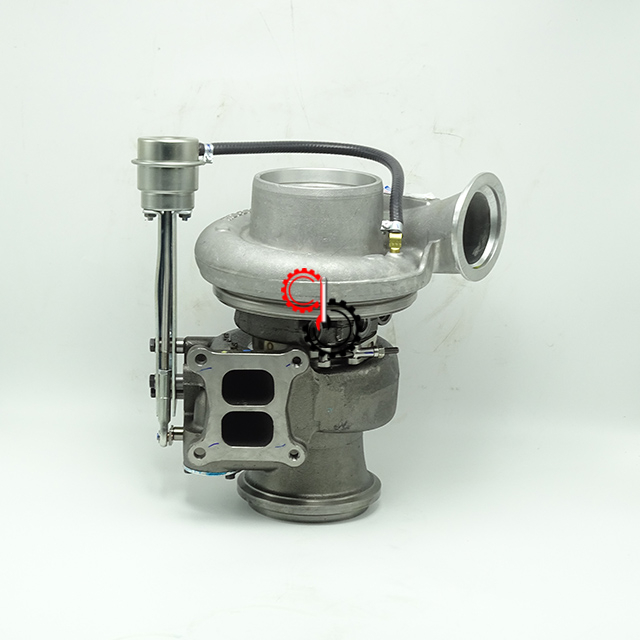

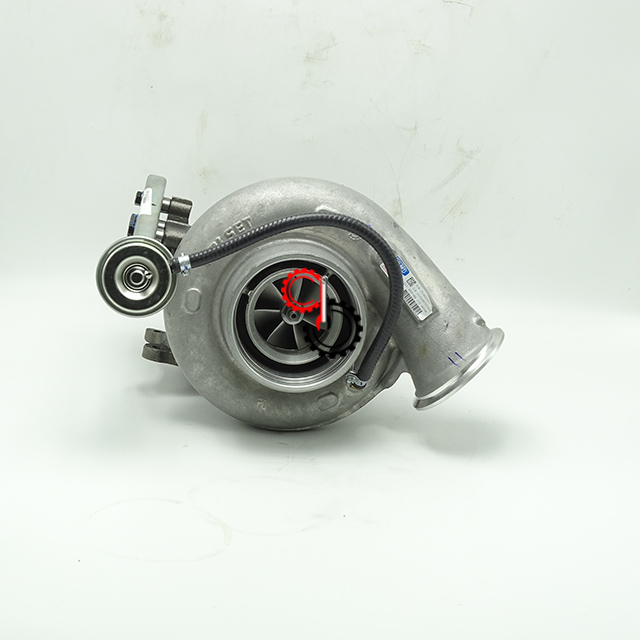

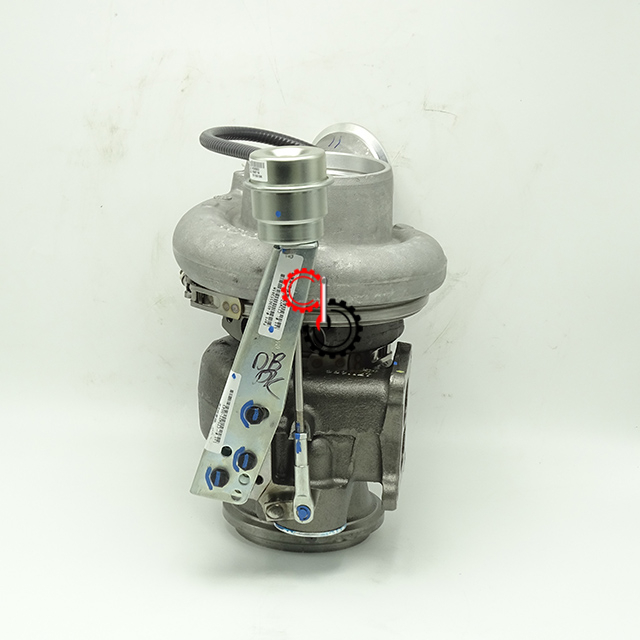

Cummins QSM11 Turbocharger 4037084 4037085 4089855

  • 4037084 4037085 4089855

  • Cummins

Supersession Part Number:
4037084
4089855
4037085
weigt(kg):
24.58
Size:
38cm*37cm*50cm
Availability:
Quantity:
Inquire Add to Basket

PDF Export
Electronic   Parts Catalog - Option details
motor ISM   CM570, ISM CM570/870, ISM CM875, ISM CM876, ISM CM876   E, ISM11 CM876 M103, ISM11 CM876 SN, M11 CELECT, M11   CELECT PLUS, M11 MECHANICAL, QSM11 CM570, QSM11 CM876

4089855

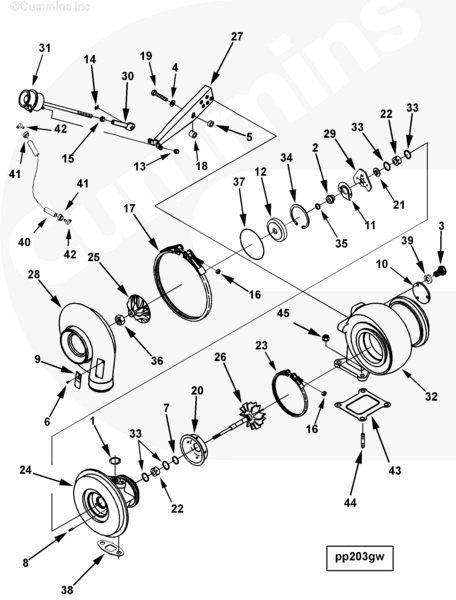

Cart Ref No Part Number Part   Description


PP20032-03 Turbocharger

4089855 Turbocharger   Kit 1

4037084 Turbocharger 1
2 3502231 Oil   Slinger 1
3 3759526 Hexagon   Head Set Screw 3
4 3504967 Plain   Washer 3
5 3591206 Mounting   Spacer 3
6 3519163 Drive   Screw 2
7 3521441 Split   Ring Seal 2
8 3522597 Roll   Pin 2
9 3527619 nameplate 1
10 3527651 Cover   Plate 1
11 3528094 Oil   Baffle 1
12 3528096 Oil   Seal Plate 1
14 3528221 Retaining   Ring 1
15 3528204 Regular   Hexagon Nut 2
16 3529372 Regular   Hexagon Nut 2
17 3529852 V   Band Clamp 1
18 3532195 Mounting   Spacer 3
19 3592892 Hexagon   Head Set Screw 3
20 3533038 Turbocharger   Heat Shield 1
21 3534109 Thrust   Collar 1
22 3534833 Turbocharger   Bearing 2
23 3535399 V   Band Clamp 1
24 3593343 Turbocharger   Bearing Housing 1
25 4036317 Turbocharger   Compressor Impeller 1
26 3535983 Shaft   Wheel Rotor 1
27 4040639 Actuator   Bracket 1
28 4036914 Compressor   Housing 1
29 3591655 Turbocharger   Thrust Bearing 1
30 3597518 Adjusting   Link End 1
31 4036553 Turbocharger   Actuator 1
32 3592774 Turbine   Housing 1
33 3709510 Retaining   Ring 4
34 3723863 Retaining   Ring 1
35 3758848 Split   Ring Seal 1
36 3760250 Lock   Nut 1
37 3762915 O-Ring   Seal 1
38 3899343 Turbocharger   Gasket 1
39 3518004 Lock   Washer 3
40 3595544 Plain   Hose 1
41 3914420 Hose   Clamp 2
42 3537930 Elbow   Hose Coupling 1
43 3088984 Turbocharger   Gasket 1
44 3095798 Double   End Plain Stud 2
45 3818824 Hexagon   Flange Nut 4

3678786 O-Ring   Seal 4

3679139 O-Ring   Seal 1

3682177 O-Ring   Seal 1

3922794 O-Ring   Seal 1
