Cummins / Cummins Parts / Electronic Control Module (ECM), Sensor, Wiring Harness / Low Price Cummins QSK Diesel Engine Parts Wiring Harness 3644838
Low Price Cummins QSK Diesel Engine Parts Wiring Harness 3644838
Low Price Cummins QSK Diesel Engine Parts Wiring Harness 3644838 Low Price Cummins QSK Diesel Engine Parts Wiring Harness 3644838
Low Price Cummins QSK Diesel Engine Parts Wiring Harness 3644838 Low Price Cummins QSK Diesel Engine Parts Wiring Harness 3644838
Low Price Cummins QSK Diesel Engine Parts Wiring Harness 3644838 Low Price Cummins QSK Diesel Engine Parts Wiring Harness 3644838
Low Price Cummins QSK Diesel Engine Parts Wiring Harness 3644838 Low Price Cummins QSK Diesel Engine Parts Wiring Harness 3644838

loading

Low Price Cummins QSK Diesel Engine Parts Wiring Harness 3644838

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Cummins QSK Wiring Harness 3644838

  • QSK

  • Cummins

  • 3644838

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins QSK Wiring Harness 3644838 In Stock

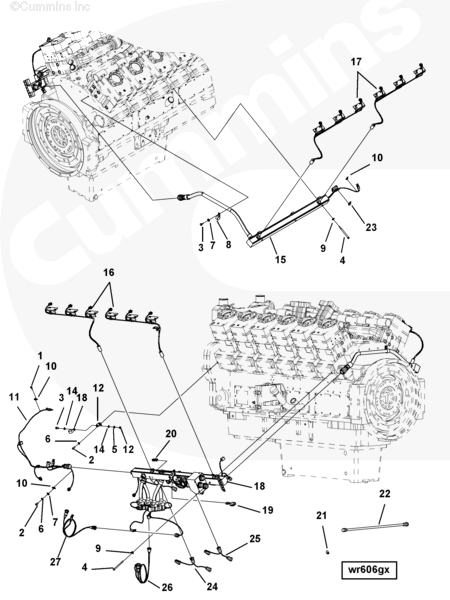

Electronic   Parts Catalog - Option Detail
Cummins   Engines GTA38, K38, KTA38GC CM558, QSK38 CM2150 K106, QSK38 CM2150 MCRS, QSK38 CM850 MCRS

3644838

Ref No Part Number Part Description Required Remarks

WR6931-01 Electronic Control Module Wiring  Harness
ETR CNT MDL WRG HARNESS...(More)
1 S 109 Hexagon Head Cap Screw 1 3/8 - 16 X 7/8 in.
2 S 117 Hexagon Head Cap Screw 1 3/8 - 16 X 3/4 in.
3 S 118 Hexagon Head Cap Screw 4 7/16 - 14 X 3/4 in.
4 S 149 A Hexagon Head Cap Screw 8 3/8 - 16 X 5 in.
5 S 604 Lock Washer 1 3/8 in.
6 S 610 Lock Washer 2 7/16 in.
7 S 622 Plain Washer 3 3/8 in.
8 68143 Clip 3
9 108330 Plain Washer 8 3/8 in.
10 180371 Clip 5
11 2881591 Electronic Control Module Wiring  Harness 1
12 3201128 Regular Hexagon Nut 2 3/8 - 16 UNC.
13 3628553 Tube Brace 2
14 3628902 Plain Washer 6
15 3642408 Electronic Control Module Wiring  Harness 1
16 3642409 Electronic Control Module Wiring  Harness 2
17 3642410 Electronic Control Module Wiring  Harness 2
18 3642434 Electronic Control Module Wiring  Harness 1
19 3681596 Battery Module 1
20 4076493 Pressure Sensor 1 Ambient Air.
21 3643370 Plain Washer 12
22 3644838 Wiring Harness 1
23 4100552 Clip 1
24 4918064 Electronic Control Module Wiring  Harness 1
25 4956529 Wiring Harness 1
26 4964183 Wiring Harness 1
27 4978990 Electronic Control Module Wiring  Harness 1


SHIPMENT CHARACTERISTICS
Length * Width * Height 10cm*8.25cm*1.25cm
Weight 0.25KG


Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
