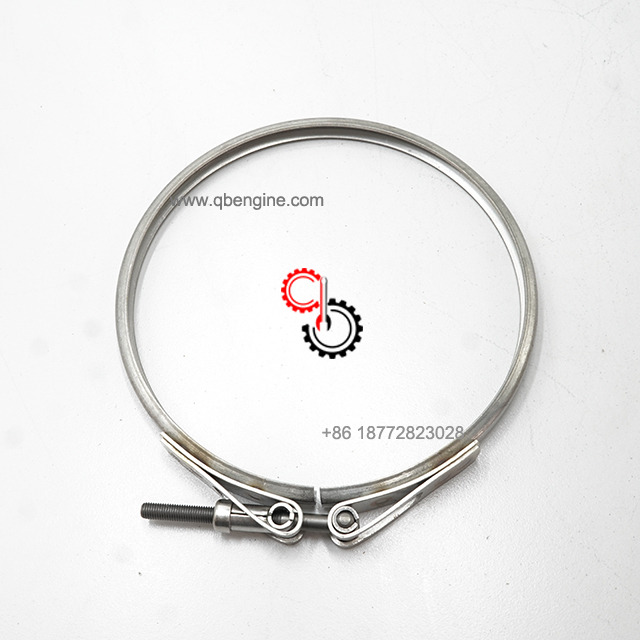

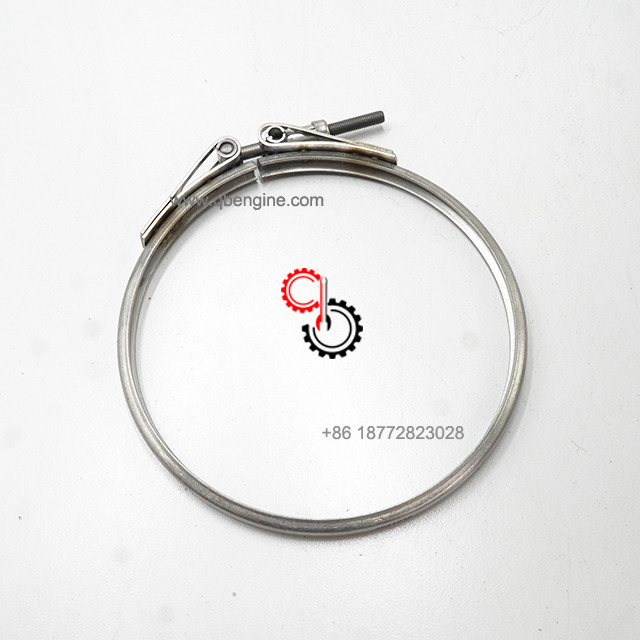

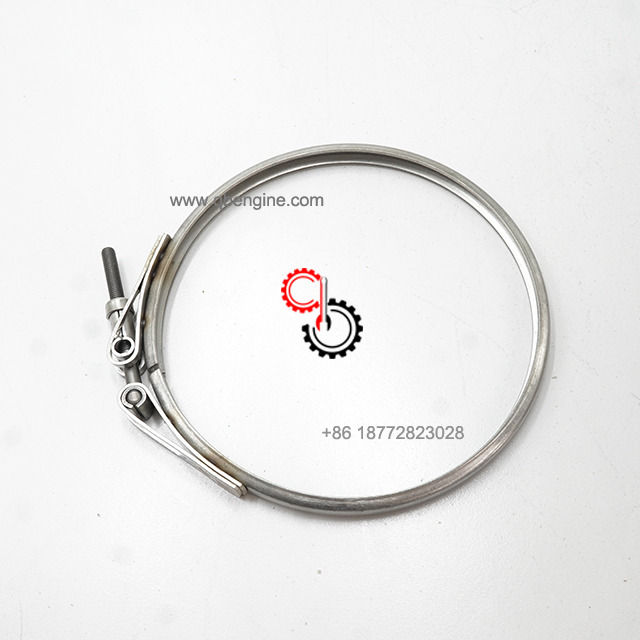

Cummins V Band Clamp 3521832

  • Original

  • Cummins

  • 3521832

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins  V Band Clamp 3521832 In Stock

Electronic   Parts Catalog - Option Detail
Cummins   Engines 6C8.3, C GAS PLUS CM556, G8.3, G8.3 CM558, GTA8.3 CM558, ISC CM2150, ISC CM554, ISC CM850, ISC8.3 CM2250, ISC8.3 G CM2180 C101, ISL CM2150, ISL CM554, ISL CM850, ISL G CM2180, ISL8.9 CM2150 L110, ISL8.9 CM2880 L112, ISL9 CM2150 SN, ISL9 CM2250, ISL9 CM2350 L101, ISL9 CM2350 L111, ISLE4 CM850, L GAS PLUS CM556, L8.9, L8.9 L121, L8.9G CMOH2.0 L125B, L9 CM2350 L116B, L9 CM2350 L119B, L9 CM2350 L120C, L9 CM2350 L123B, L9 CM2670 L128B, L9.3 L105, L9.5 L117, L9N CM2380 L124B, QSC8.3 CM2250, QSC8.3 CM2880 C102, QSC8.3 CM554, QSC8.3 CM850(CM2850), QSL9 CM2250, QSL9 CM2250 L115, QSL9 CM2350 L102, QSL9 CM2350 L107, QSL9 CM2350 L118, QSL9 CM2350 L122, QSL9 CM554, QSL9 CM850(CM2850), QSL9 G CM558, QSL9 M CM2250 L106, QSL9.3 CM2880 L113

3521832

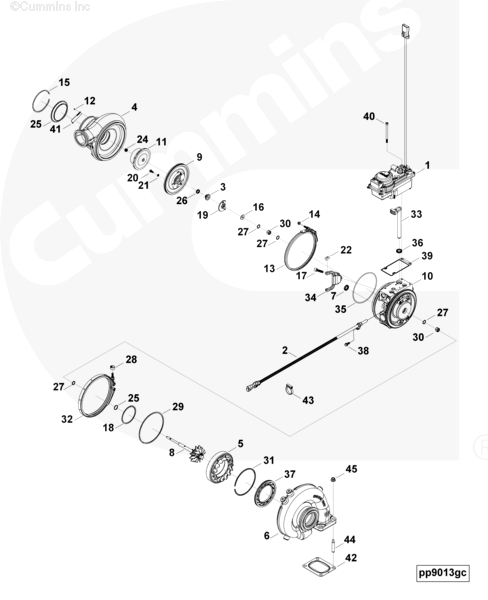

Ref No Part Number Part Description Required Remarks

PP99843 Turbocharger
MR - TURBOCHARGER...(More)

2842380 Turbocharger 1

2842376 Turbocharger 1
1 2837217 Turbocharger Electric Actuator 1
2 2839964 Turbocharger Speed Sensor 1 Serviced As 4032806.

2842375 Turbocharger 1
3 2834333 Oil Slinger 1
4 2836084 Compressor Housing 1
5 2838474 Turbocharger Nozzle Ring 1
6 2839930 Turbine Housing 1
7 2840104 Oil Seal 2
8 2840924 Shaft And Wheel 1
9 2841376 Turbocharger Diffuser 1
10 2841813 Turbocharger Bearing Housing 1
11 2843576 Turbocharger Compressor Impeller 1
12 3519163 Drive Screw 2
13 3521832 V Band Clamp 1 Serviced as 3803431
14 3529372 Regular Hexagon Nut 2 1/4 - 28 UNF
15 3531238 Retaining Ring 1
16 3532217 Thrust Collar 1
17 3590770 Socket Head Cap Screw 1
18 3592933 Split Ring Seal 1
19 3592966 Turbocharger Thrust Bearing 1
20 3593725 Hexagon Head Set Screw 3
21 3594297 Sealing Washer 3
22 3594740 Pivot Block 2
23 3595516 Turbocharger Noise Baffle 1
24 3596402 Lock Nut 1
25 3756754 Split Ring Seal 1
26 3758848 Split Ring Seal 2
27 3762259 Retaining Ring 4
28 4035077 Hose Clamp 1
29 4035334 Split Ring Seal 1
30 4035378 Turbocharger Bearing 2
31 4036240 Retaining Ring 1
32 4041107 V Band Clamp 1
33 4041453 Turbocharger Actuator Lever 1
34 4041795 Turbocharger Actuator Yoke 1
35 4044468 O-Ring Seal 1
36 4045491 Oil Seal 1
37 4046867 Turbocharger Nozzle Shroud 1
38 3527184 Hexagon Flange Head Cap Screw 1
39 4040252 Turbocharger Gasket 1 Sold In Higher Level Assy/Kit
40 4040267 Socket Head Cap Screw 4
41 3527619 Dataplate 1
42 3685535 Turbocharger Gasket 1
43 3969959 Wire Retaining Clip 1
45 4920497 Double End Plain Stud 2
46 5263462 Twelve Point Nut 4

4032806 Turbocharger Sensor Kit A/R

2839964 Turbocharger Speed Sensor 1 Serviced As 4032806.

3527184 Hexagon Flange Head Cap Screw 1

3965616 Wire Retaining Clip 2

3803431 Kits , V-Band Clamp A/R

3521832 V Band Clamp 1

3529372 Regular Hexagon Nut 1 1/4 - 28 UNF

4034182 Mounting Kit A/R

3782238 Turbocharger Actuator Service Tool 1

4031373 Grease 1

4031417 Wire Tie Clamp 4

4040252 Turbocharger Gasket 1 Sold In Higher Level Assy/Kit

4040267 Socket Head Cap Screw 4



SHIPMENT CHARACTERISTICS
Length * Width * Height 19cm*3cm*19cm
Weight 0.021KG
