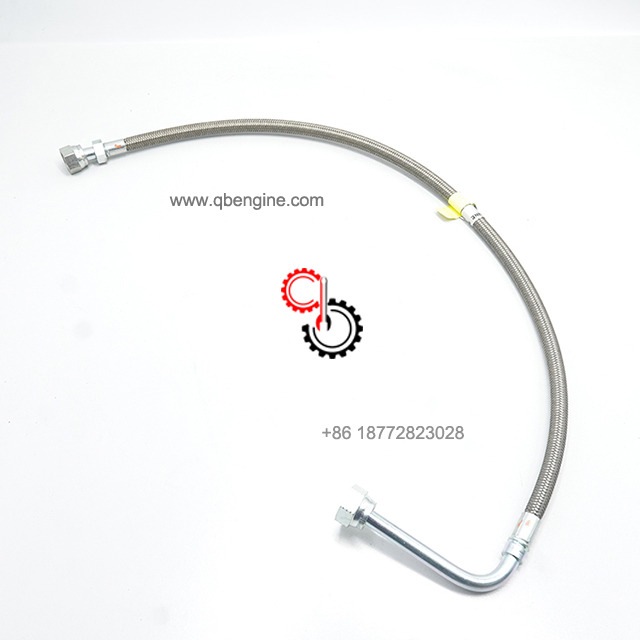

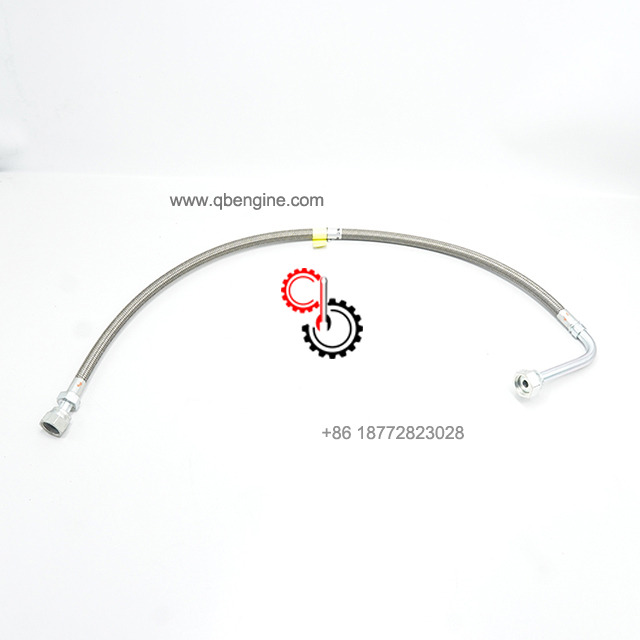

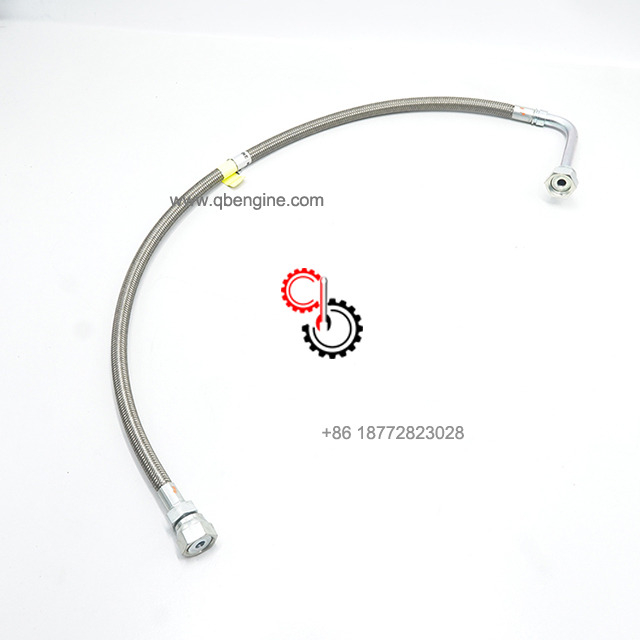

Cummins QSK60 Flexible Hose 3644492 5542635

  • QSK60

  • Cummins

  • 3644492 5542635

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins QSK60 Flexible Hose 3644492 5542635 In Stock

Electronic Parts Catalog - Option Detail
Cummins Engines QSK60 CM2150 MCRS, QSK60 CM2250 K112, QSK60 CM2350 K116, QSK60 CM2350 K117, QSK60 CM2350 K121, QSK60 CM2350 K133, QSK60 CM500, QSK60 CM850 MCRS, QSK60 G, QSK60 G CM2358 K110

3644492

Ref No Part Number Part Description Required Remarks

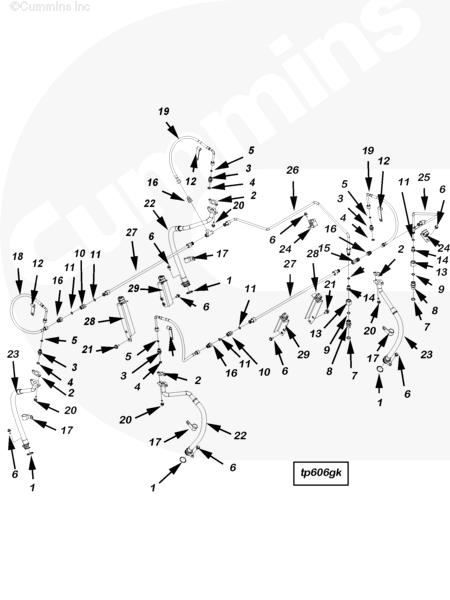

TP6829 Turbocharger Oil Plumbing
MR - PLUMBING, TURBO OIL...(More)
1 216187 O-Ring Seal 4
2 3089955 Connection Gasket 4

3090400 Male Union 4
3 3090419 Male Union 1
4 3679139 O-Ring Seal 1
5 3922794 O-Ring Seal 1
6 3093957 Hexagon Flange Head Cap Screw 10 M10 X 1.50 X 16

3171818 Male Union 2
7 3089240 O-Ring Seal 1 M22
8 3171819 Male Union 1
9 3630740 O-Ring Seal 1

3171830 Male Union 2
10 3171831 Male Union 1
11 3627695 O-Ring Seal 2
12 3178535 Clip 4
13 3331855 Tube Nut 2

3331881 Tube Fitting Reducer 2
14 3331882 Tube Fitting Reducer 1
15 3424071 Male Union Tee 2
16 3424074 Tube Fitting Reducer 4
17 3629454 Clip 4
18 3644491 Flexible Hose 2
19 3644492 Flexible Hose 2
20 3902460 Hexagon Flange Head Cap Screw 8 M10 X 1.50 X 25.
21 3913372 Hexagon Flange Head Cap Screw 4 M12 X 1.75 X 20.
22 4917836 Flexible Hose 2
23 4917837 Flexible Hose 2
24 4917840 Clip 2
25 4917967 Lubricating Oil Transfer Tube 1
26 4917969 Lubricating Oil Transfer Tube 1
27 4917971 Lubricating Oil Transfer Tube 2
28 4917973 Tube Brace 2
29 4951885 Tube Brace 2

SHIPMENT CHARACTERISTIC

Length * Width * Height

 48.6cm*22cm*3.1cm
Weight 0.205KG


Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
