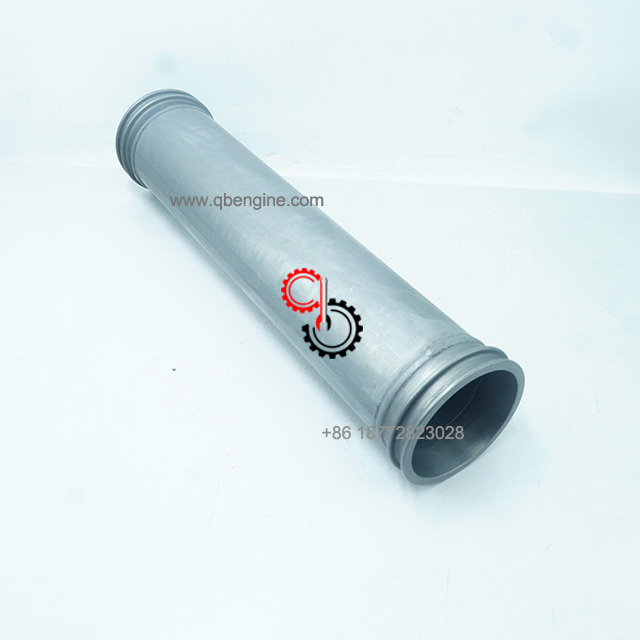

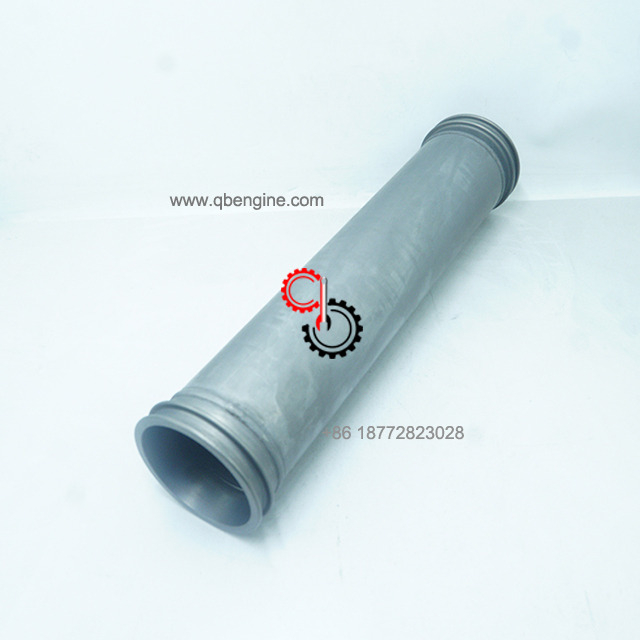

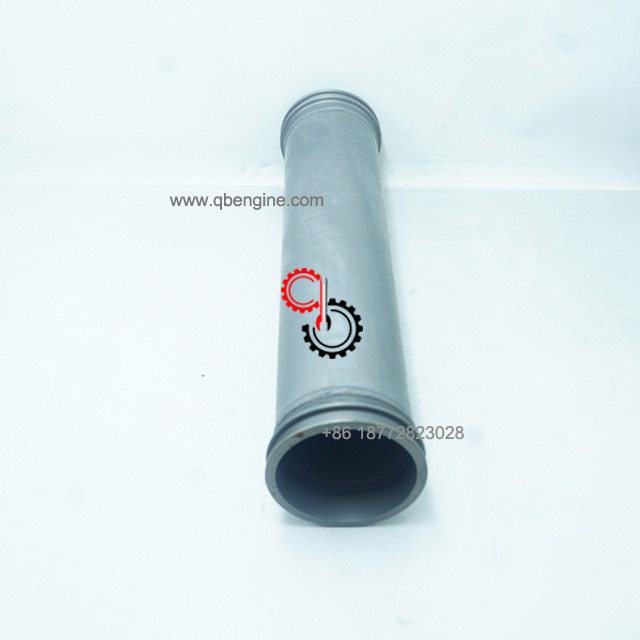

Cummins Water Transfer Tube 3866820 In Stock
| Electronic Parts Catalog - Option Detail |
| Cummins Engines | K19, KTA19 G CMEICS K123, KTA19GC, KTA19GC CM558, QSK19 CM2150 MCRS, QSK19 CM2350 K105, QSK19 CM500, QSK19 CM850 MCRS, QSK19G |
| Ref No | Part Number | Part Description | Required | Remarks |

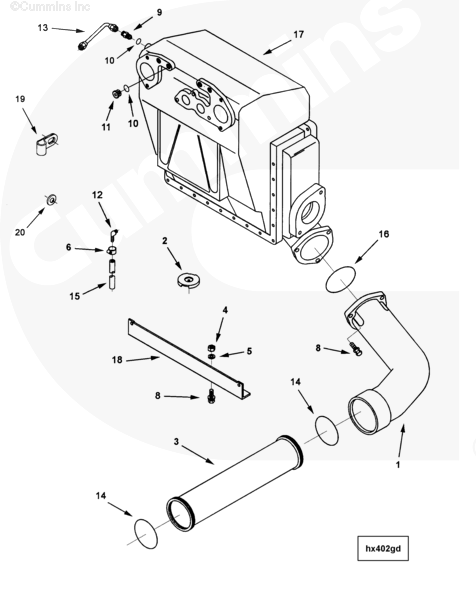

| HX4125-04 | Heat Exchanger |
| Heat exchanger assembly for...(More) |
| 1 | 3349419 | Water Transfer Connection | 1 |
|
| 2 | 3393978 | Filler Cap | 1 |
|
| 3 | 3866820 | Water Transfer Tube | 1 |
|
| 4 | S 223 | Heavy Hexagon Nut | 2 | 3/8 - 16 UNC |
| 5 | 108330 | Plain Washer | 2 | 3/8 in. |
| 6 | 179904 | Hose Clamp | 1 | 3/8 - 7/8 in. |
| 8 | 3011716 | Captive Washer Cap Screw | 7 | 3/8 - 16 x 1 3/8 in. |
| 3036865 | Male Union | 2 |
|
| 9 | 3100526 | Male Union | 1 |
|
| 10 | 3037236 | O-Ring Seal | 1 | Ref. SPT 97T10 |
| 3067424 | Threaded Plug | 3 | 1/2 - 20 UNF |
| 10 | 3037236 | O-Ring Seal | 1 | Ref. SPT 97T10 |
| 11 | 3067347 | Threaded Plug | 1 |
|
| 12 | 3084828 | Elbow Hose Coupling | 1 |
|
| 13 | 3349292 | Flexible Hose | 2 |
|
| 14 | 3393303 | O-Ring Seal | 2 |
|
| 15 | 3393305 | Plain Hose | 1 |
|
| 16 | 3558938 | O-Ring Seal | 1 |
|
| 4019774 | Heat Assembly Exchanger | 1 |
|
| 17 | 3349418 | Heat Exchanger | 1 |
|
| 18 | 3349527 | Heat Exchanger Bracket | 1 |
|
| 19 | 108722 | Clip | 2 |
|
| 20 | 3042329 | Plain Washer | 1 | 3/8 in. |
SHIPMENT CHARACTERISTICS |
|
| Length * Width * Height | 17cm*3.875cm*3.875cm |
| Weight | 3.63KG |
