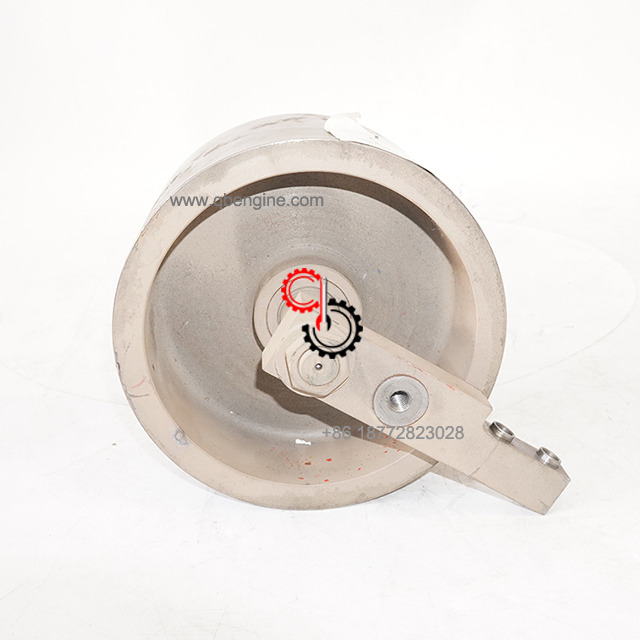

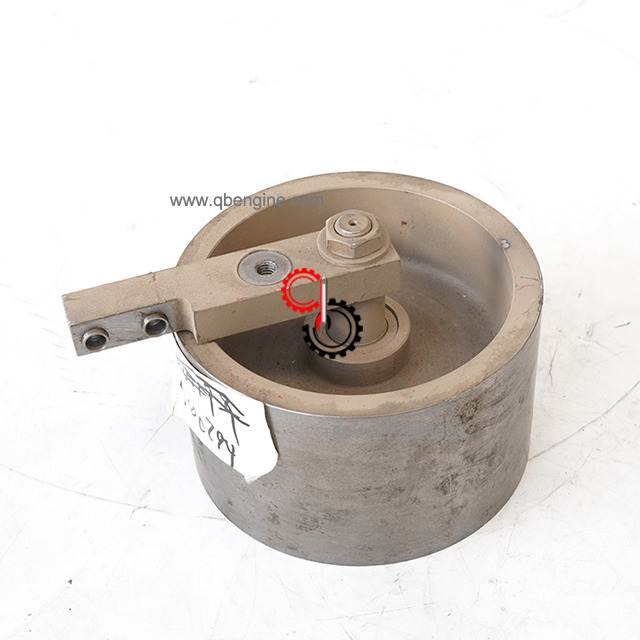

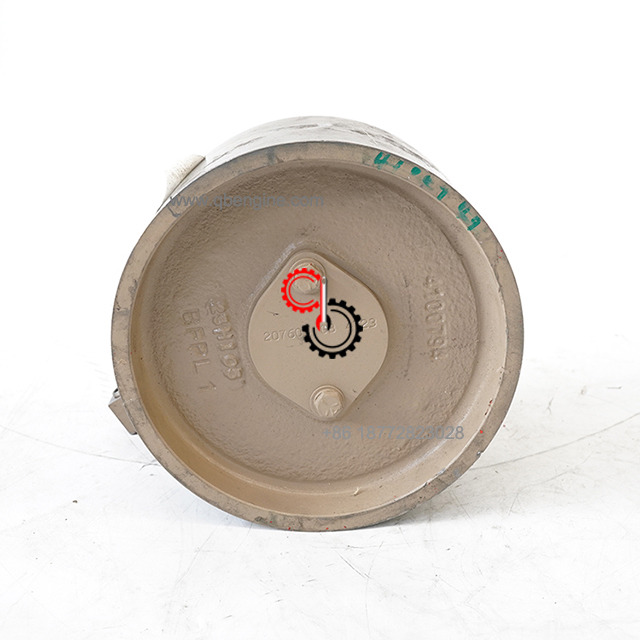

Cummins QSK60 Idler Pulley 3638478 4100794

  • QSK60

  • Cummins

  • 3638478 4100794

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins QSK60 Idler Pulley 3638478 4100794 In Stock

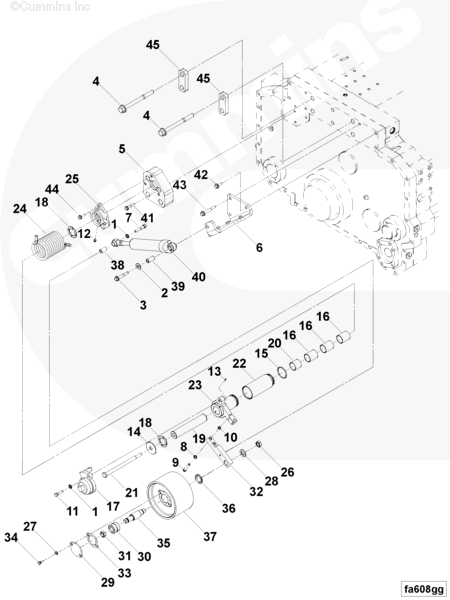

Electronic Parts Catalog - Option Detail
Cummins Engines QSK60 CM2150 MCRS, QSK60 CM2250 K112, QSK60 CM2350 K116, QSK60 CM2350 K117, QSK60 CM2350 K121, QSK60 CM2350 K133, QSK60 CM500, QSK60 CM850 MCRS, QSK60 G, QSK60 G CM2358 K110

4100794


Ref No Part Number Part Description Required Remarks

FA6220-05

Fan Drive
1 S  610 Lock Washer 1 7/16 in.
2 3176133 Plain Washer 1 3/8 in.
3 3278480 Hexagon Flange Head Cap Screw 1 M12 X 1.75 X 70.
4 3332174 Hexagon Flange Head Cap Screw 4
5 3638474 Mounting Spacer 1
6 3638475 Shock Absorber Bracket 1
7 3638580 Socket Head Cap Screw 1

3640842 Idler Assembly Fan 1
8 S 604 Lock Washer 2 3/8 in.
9 205375 Twelve Point Cap Screw 2 3/8 - 16 X 2 1/4 in.
10 3002993 Ring Dowel 2

3638478 Idler Lever 1
11 S 155 Hexagon Head Cap Screw 1 7/16 - 14 X 1 1/2 in.
12 S 2268 Grease Fitting 1
13 68171 Roll Pin 2
14 127454 Plain Washer 1 5/8 in.
15 145581 O-Ring Seal 1
16 3009477 Sleeve 3
17 3023499 Idler Lever Cap 1
18 3177129 Thrust Bearing 2
19 3638479 Pivot Shaft 1
20 3638480 Sleeve 1
21 3638482 Hexagon Head Cap Screw 1

3638483 Idler Lever 1
22 3638481 Wear Sleeve 1
23 4101094 Idler Lever 1
24 3638551 Torsion Spring 1
25 4068608 Pivot Shaft Support 1

4100798 Idler Pulley 1
26 S 249 Regular Hexagon Jam Nut 1 3/4 - 16 UNF
27 S 626 Plain Washer 2 5/16 in.
28 S 640 Plain Washer 1 3/4 in.
29 207603 Idler Pulley Cover 1
30 3003354 Roller Bearing 1
31 3004057 Lock Nut 1 3/4 - 16 UNF.
32 3009482 Idler Pulley Bracket 1
33 3014449 Flange Gasket 1
34 3021470 Captive Washer Cap Screw 2 5/16 - 18 X 3/4 in.
35 3028410 Idler Shaft 1

4100799 Idler Pulley 1
36 3065830 Oil Seal 1
37 4100794 Idler Pulley 1

3641240 Shock Absorber 1
38 3638552 Sleeve 1
39 3638553 Sleeve 1
40 3641239 Shock Absorber 1
41 3900634 Hexagon Flange Head Cap Screw 3 M10 X 1.50 X 50.
42 3910495 Hexagon Flange Head Cap Screw 2 M12 X 1.75 X 30.
43 3914177 Hexagon Flange Head Cap Screw 1 M12 X 1.75 X 80.
44 3925344 Hexagon Flange Head Cap Screw 3 M10 X 1.50 X 30.
45 4065608 Mounting Spacer 2


Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
