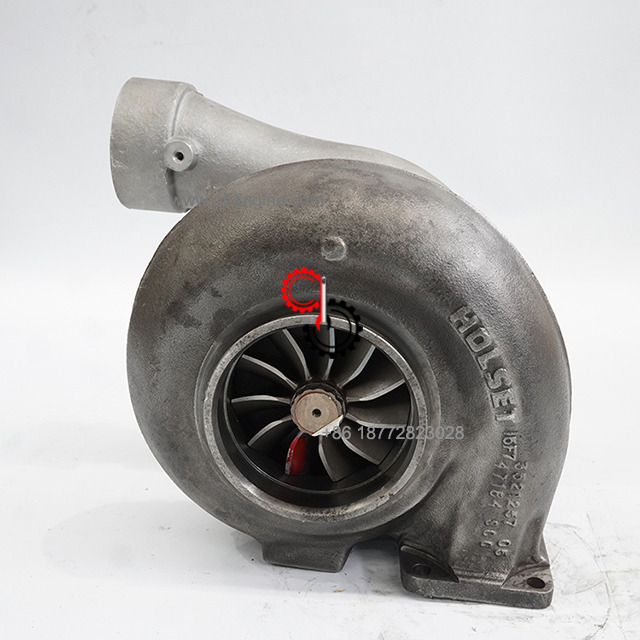

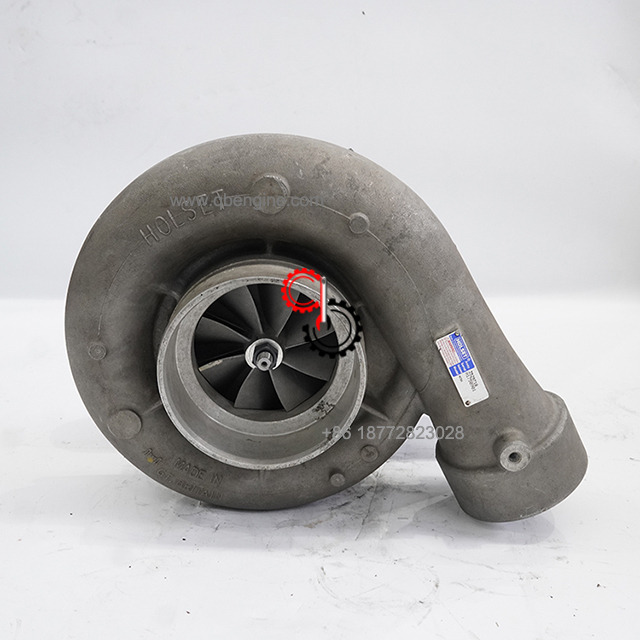

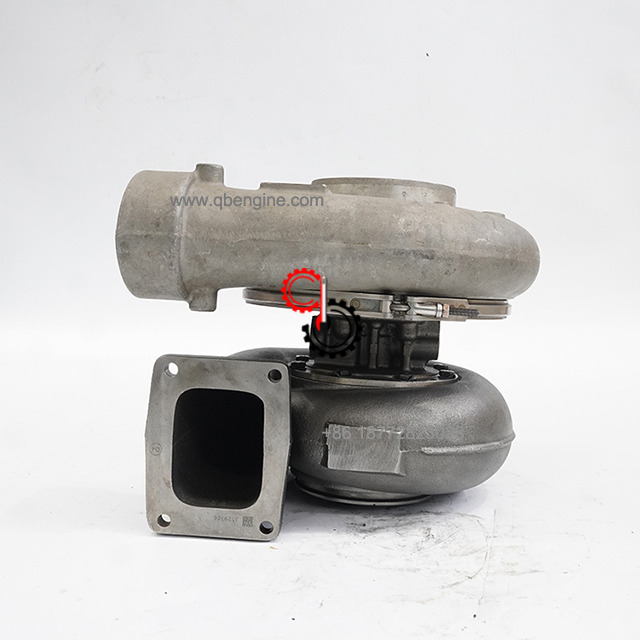

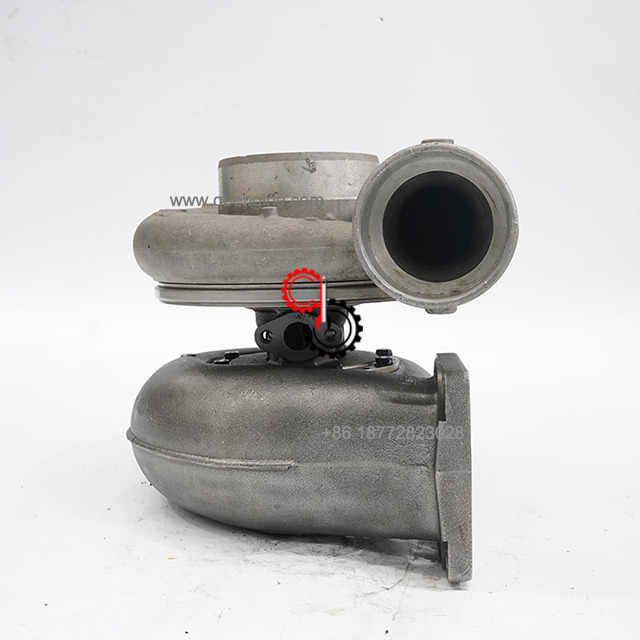

Industrial Cummins K19 K50 Turbocharger Kit 3803450 3529720 3529718 3594111
Industrial Cummins K19 K50 Turbocharger Kit 3803450 3529720 3529718 3594111 Industrial Cummins K19 K50 Turbocharger Kit 3803450 3529720 3529718 3594111
Industrial Cummins K19 K50 Turbocharger Kit 3803450 3529720 3529718 3594111 Industrial Cummins K19 K50 Turbocharger Kit 3803450 3529720 3529718 3594111
Industrial Cummins K19 K50 Turbocharger Kit 3803450 3529720 3529718 3594111 Industrial Cummins K19 K50 Turbocharger Kit 3803450 3529720 3529718 3594111
Industrial Cummins K19 K50 Turbocharger Kit 3803450 3529720 3529718 3594111 Industrial Cummins K19 K50 Turbocharger Kit 3803450 3529720 3529718 3594111

loading

Industrial Cummins K19 K50 Turbocharger Kit 3803450 3529720 3529718 3594111

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Cummins K19 K50 Turbocharger Kit 3803450 3529720 3529718 3594111

  • K19 K50

  • Cummins

  • 3803450 3529720 3529718 3594111

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins K19 K50 Turbocharger Kit 3803450 3529720 3529718 3594111 In Stock

Electronic   Parts Catalog - Option Detail
Cummins   EnginesG50, K50, K50-DPM, QSK50 CM2150 K107, QSK50 CM2150 MCRS, QSK50 CM2350 K108, QSK50 CM850 MCRS, QSK50 DF CM850/CM2150 MCRS


Part  NumberPart DescriptionRequiredRemarks
PP6111Turbocharger

3801698Turbocharger2
3524660Turbocharger2
3529718Turbocharger2
3803450Turbocharger Kit2
3803452Turbocharger Kit2Recon equivalent 3803452 RX
3502449Rectangular Ring Seal1
3503335Regular Hexagon Nut1
3529372Regular Hexagon Nut11/4 - 28 UNF
3504967Plain Washer4Holset Part Sold Only In Kits
3519163Drive Screw2
3519535Lock Nut1M11 x 1.00
3519623Thrust Collar1
3519627Turbocharger Bearing2
3519641Retaining Ring4
3519783Turbocharger Heat Shield1
3521034Shaft Wheel Rotor1
3521225Hexagon Head Set Screw8M8 X 1.25 X 16.
3521442Split Ring Seal1
3522904Lock Plate4
3522919Turbine Housing1
3529706Turbine Housing1
3523306Turbocharger Thrust Bearing1
3526985Turbocharger Thrust Bearing1
3523412Split Ring Seal1
3523429Turbocharger Bearing Housing1
3520933Turbocharger Bearing Housing1
3523429Turbocharger Bearing Housing1
3522597Roll Pin2
3523546Turbocharger Compressor Impeller1
3523556Compressor Housing1
3523980Oil Slinger1
3524418Shim1
3524419Oil Baffle1
3524421Turbocharger Diffuser1
3525073Hexagon Head Set Screw4M8 x 1.25 x 25
3527619Dataplate1
3525562Dataplate1
3528109V Band Clamp1
3803435Kits , V-Band Clamp1



Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
