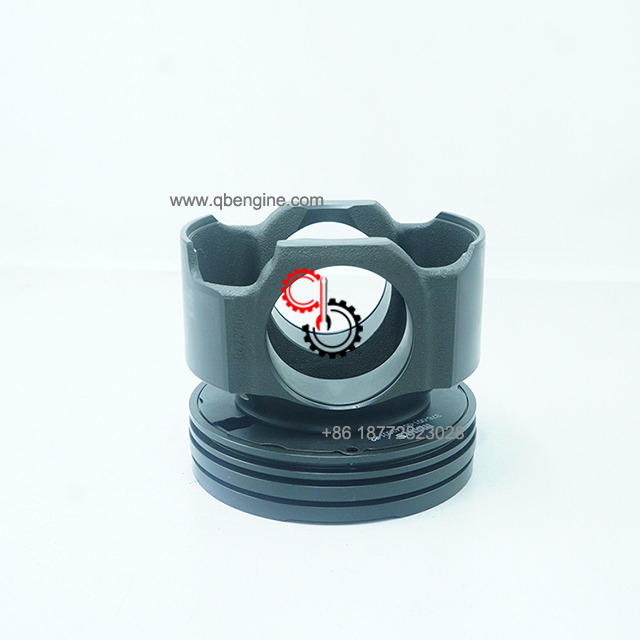

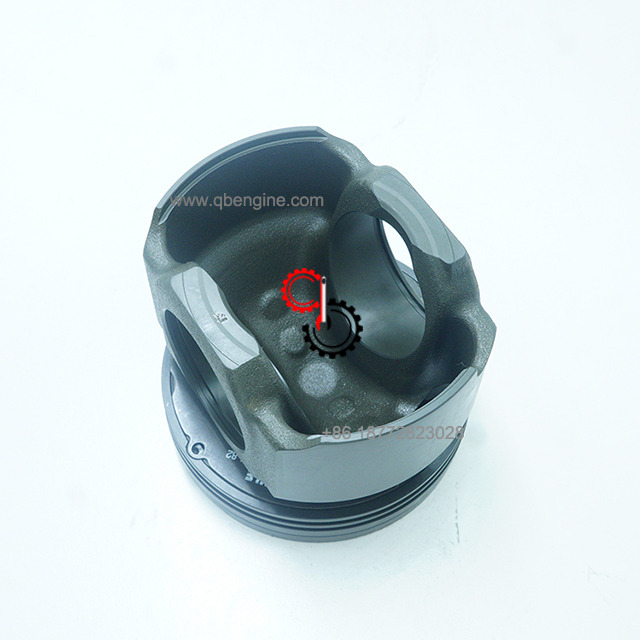

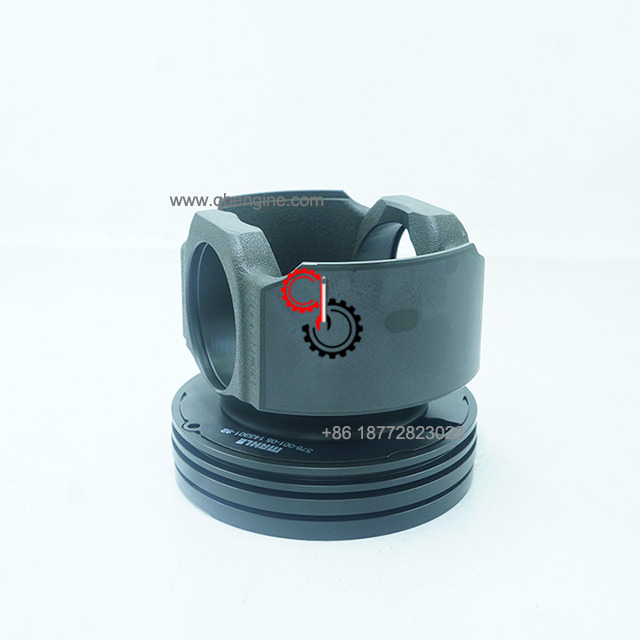

Cummins ISZ13 QSZ13 Piston 4366017

  • ISZ13 QSZ13

  • Cummins

  • 4366017

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins ISZ13 QSZ13 Piston 4366017 In Stock

4366017

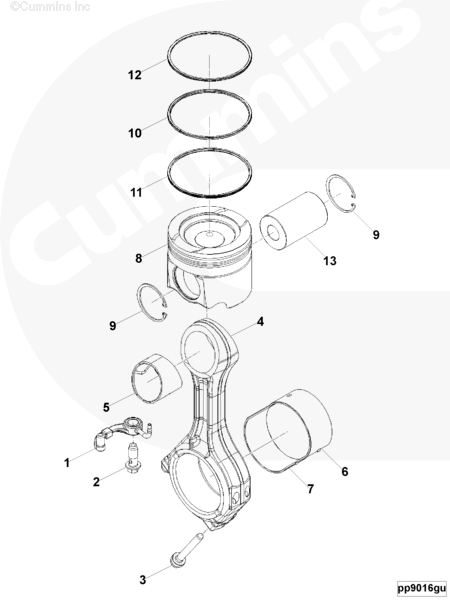

Ref No Part Number Part Description Required Remarks

PP44199-02 Connecting Rod And Piston
Connecting Rod And Piston...(More)
1 2869962 Piston Cooling Nozzle 6
2 3102136 Banjo Connector Screw 6

4327409 Engine Connecting Rod 6
3 2864899 Connecting Rod Cap Screw 4
4 4327410 Engine Connecting Rod 1
5 4327412 Bushing 1
6 4999948 Connecting Rod Bearing 6 Upper.
7 4999949 Connecting Rod Bearing 6 Lower.
8 4366017 Engine Piston 6
9 3820782 Retaining Ring 12
10 4959949 Compression Piston Ring 6
11 4316887 Oil Piston Ring 6
12 4974985 Compression Piston Ring 6
13 4975036 Piston Pin 6

SHIPMENT CHARACTERISTICS
Length * Width * Height 15cm*15cm*15cm
Weight 3.212KG


Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
