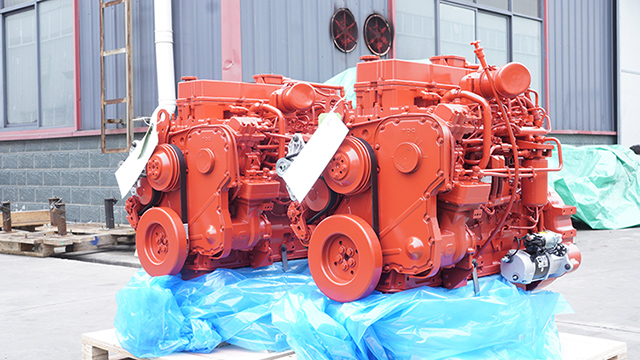

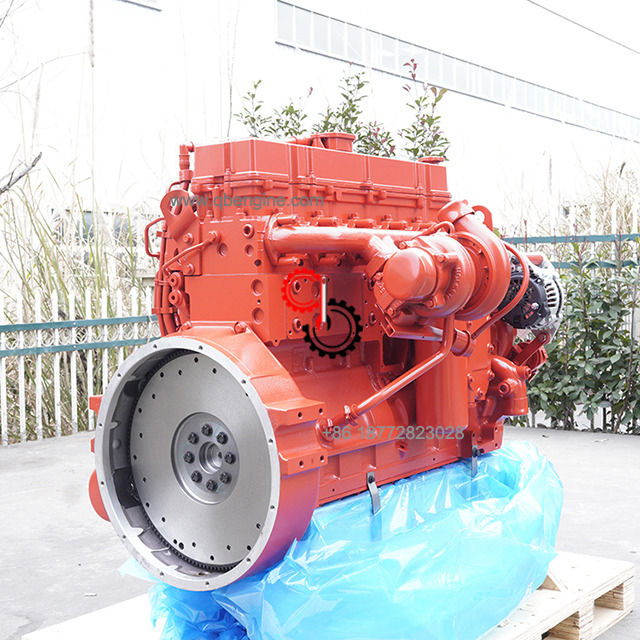

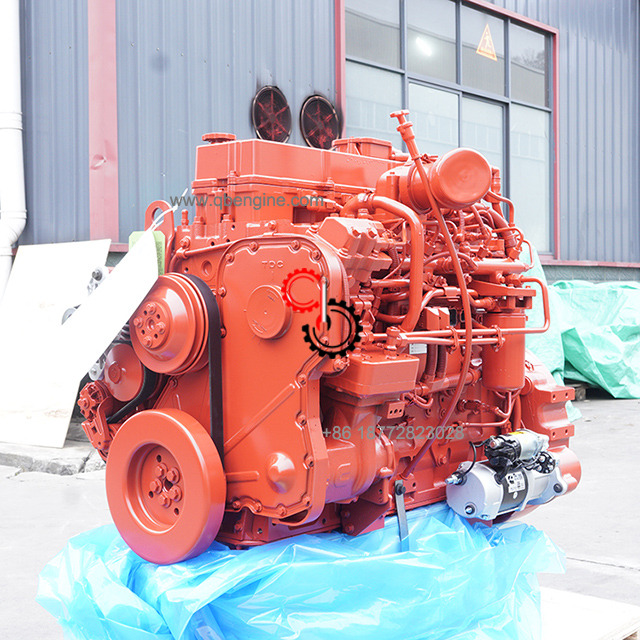

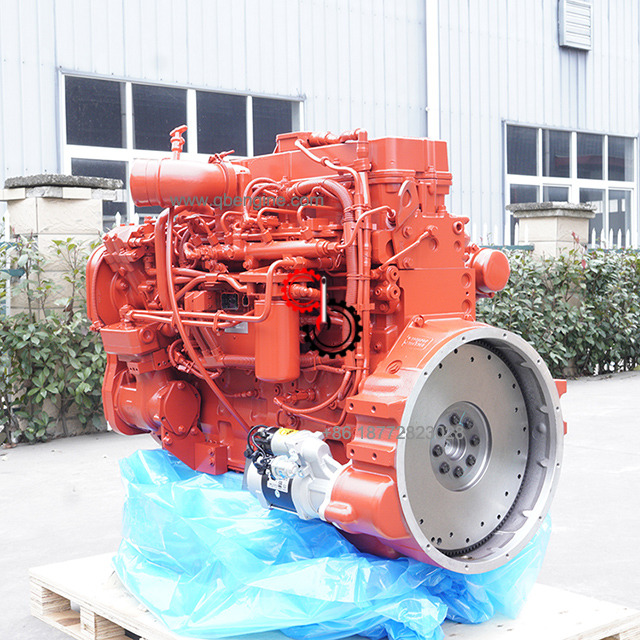

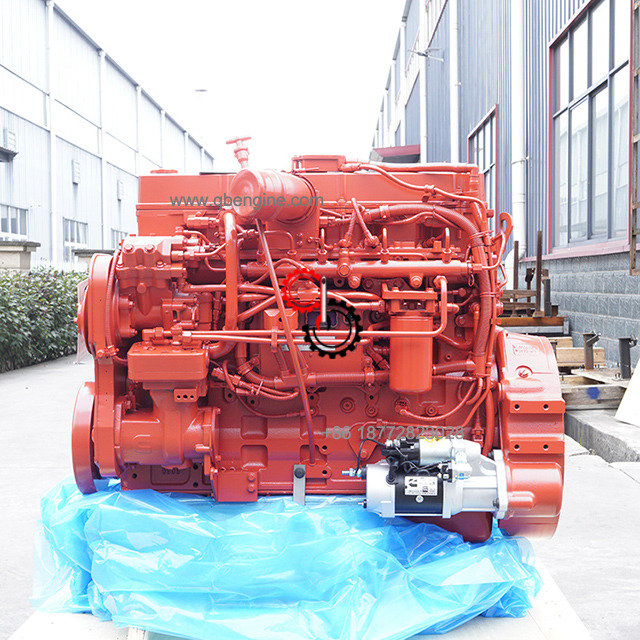

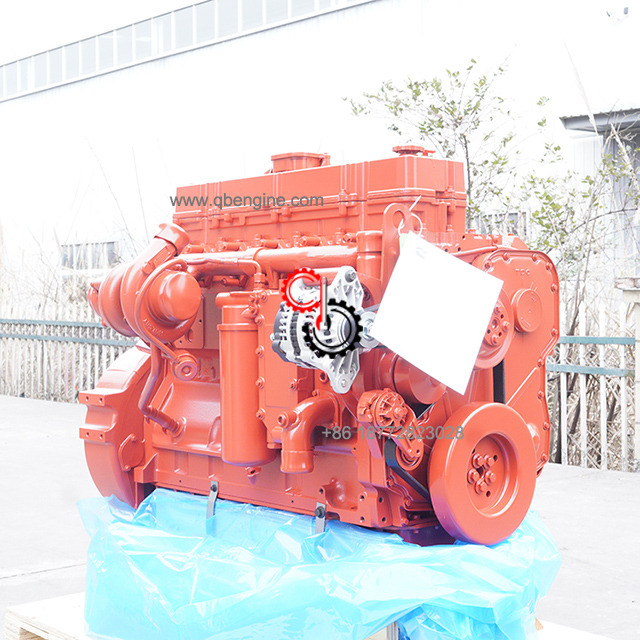

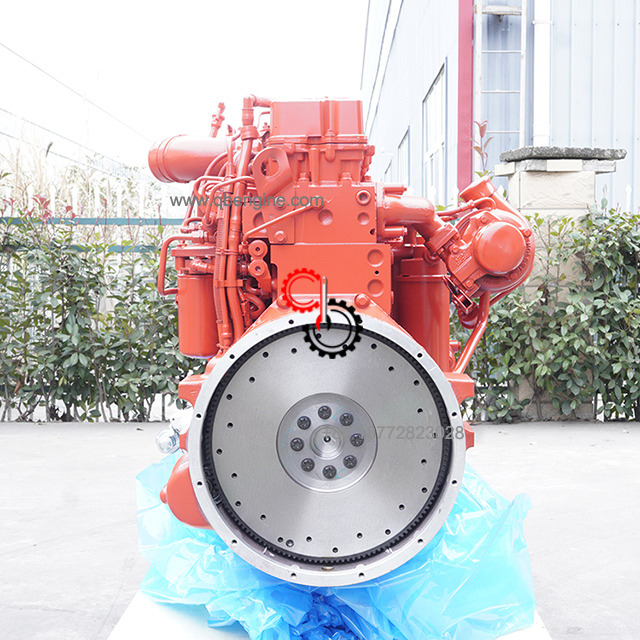

ISLE400 ISLE450 ISL
Cummins
1-7 days
Genuine Original package or Ne
1 years
| Availability: | |
|---|---|
| Quantity: | |
| PDF Export | |
Small Tips for Quick Service:
If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.
For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.

| No | Item | Data |
| 1 | Engine Model | ISLE400 ISLE450 |
| 2 | Displacement | 8.9L |
| 3 | Rated power | 355 Bhp @ 2100 Rpm |
| 4 | Cylinder | 6 cylinders |
| 5 | Engine Aspiration | Charge Air Cooled |
| 6 | Torque Peak | 1180 Ft Lb @ 1200 Rpm |
| 7 | Cert Level | Euro5 ,stg V |
| 8 | Governed Power | 355 Bhp @ 2100 Rpm |
| Configurations and Model Names | |
| EPA Model Name | EURO5 |
|---|---|
| Marketing Engine Configuration # | D563020BU29 |
| Marketing Model Name | ISL8.9E5-360 |
| Service Model Name | ISL9 CM2150 SN |
| Technical Engine Configuration # | D563020BX03 |
| Engine Build Details | |
| Build Date | 2023-09-25T00:00:00Z |
| Build Plant | DAR - DARLINGTON |
| CPL # | 4378 |
| Shop Order | SO31361 |
| Warranty Start Date | Not Available |
| Technical Specification Details | |
| ECM Code | CK90043 |
| Fuel Pump Part # | Not Available |
| Fuel Pump Calibration | SS36 |
ISL9 for 2013.
Better. Every Call.
Cummins ISL9 is built to last. This engine is built for endurance with features such as replaceable wet liners, roller followers, by-pass oil filtration and targeted piston cooling for longer service in demanding fire and emergency vehicle applications. It uses the XPI fuel system and shares the same Electronic Control Module (ECM) with all other Cummins on-highway engines for powerful, , clean and quiet operation. Every call.
Better. Where It Counts.
Cummins ISL9 is designed to deliver better performance, reliability, fuel economy and durability. The ISL9 is easily customizable, including many electronic engine features and adjustable parameters. Emergency vehicle ratings for the ISL9 range from 270-450 hp (201-336 kW) with a peak torque of 1250 lb-ft (1695 N•m). Maintenance is virtually unchanged from previous models. Plus, every ISL9 is backed by the largest and most capable customer support network in the business, with Cummins Care representatives available at 1-800-DIESELS™ to answer product questions and provide assistance during a repair or service event from Cummins Care.
Cummins ISL9 for 2013 will help every firefighting crew and EMT unit respond better in every emergency situation. Every time.
Better Coverage.
In addition to a comprehensive base warranty, Cummins ISL9 is available with a variety of extended coverage plans for up to 10 years/200,000 miles (321,869 km).
| Engine Model | Advertised Power | Peak Torque |
| ISLe290 40 | 213 kW @ 2100 RPM | 1050 N.m @ 1400 RPM |
| ISLe292 40 | 215 kW @ 2100 RPM | 1200 N.m @ 1400 RPM |
| ISLe315 40 | 232 kW @ 2100 RPM | 1200 N.m @ 1400 RPM |
| ISLe325 40 | 239 kW @ 2100 RPM | 1350 N.m @ 1400 RPM |
| ISLe340 40 | 250 kW @ 2100 RPM | 1425 N.m @ 1400 RPM |
| ISLe360 40 | 265 kW @ 2100 RPM | 1550 N.m @ 1400 RPM |
| ISLe375 40 | 275 kW @ 2100 RPM | 1550 N.m @ 1400 RPM |
| ISLe400 40 | 294 kW @ 2100 RPM | 1700 N.m @ 1400 RPM |
