Hot Selling Cummins QSK38 QSK50 Water Bypass Tube Diesel Industrial Engine Parts 3650264
Hot Selling Cummins QSK38 QSK50 Water Bypass Tube Diesel Industrial Engine Parts 3650264 Hot Selling Cummins QSK38 QSK50 Water Bypass Tube Diesel Industrial Engine Parts 3650264
Hot Selling Cummins QSK38 QSK50 Water Bypass Tube Diesel Industrial Engine Parts 3650264 Hot Selling Cummins QSK38 QSK50 Water Bypass Tube Diesel Industrial Engine Parts 3650264
Hot Selling Cummins QSK38 QSK50 Water Bypass Tube Diesel Industrial Engine Parts 3650264 Hot Selling Cummins QSK38 QSK50 Water Bypass Tube Diesel Industrial Engine Parts 3650264

loading

Hot Selling Cummins QSK38 QSK50 Water Bypass Tube Diesel Industrial Engine Parts 3650264

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

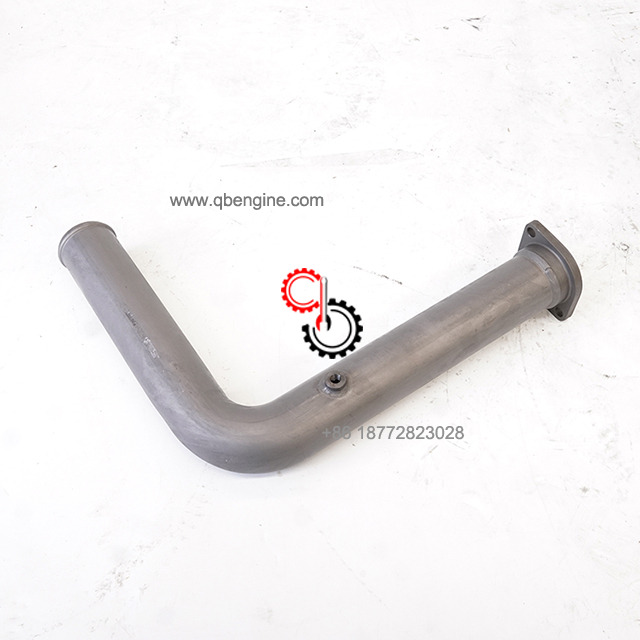

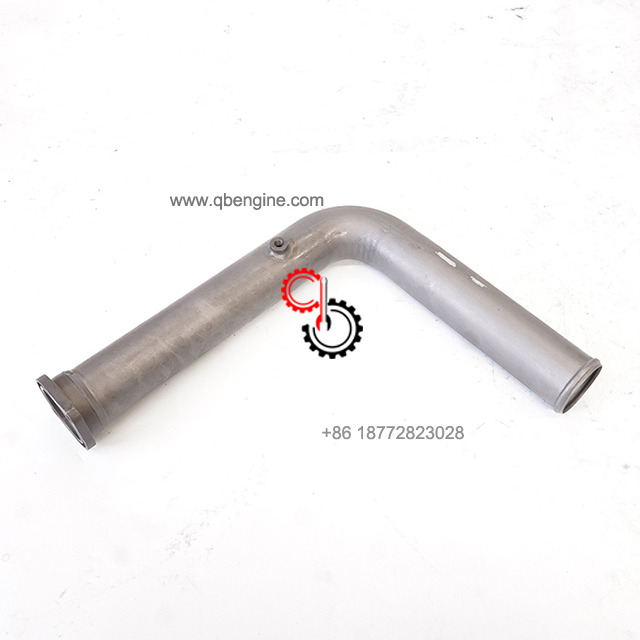

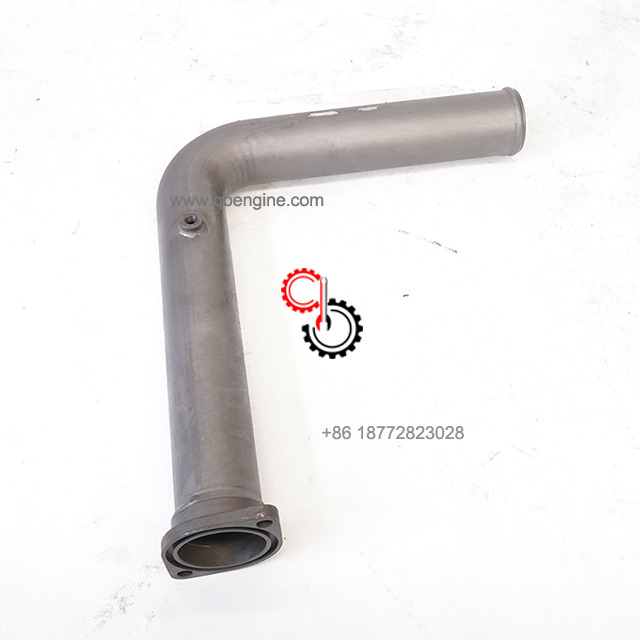

Cummins QSK38 QSK50 Water Bypass Tube 3650264

  • QSK38 QSK50

  • Cummins

  • 3650264

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins QSK38 QSK50 Water Bypass Tube 3650264 In Stock

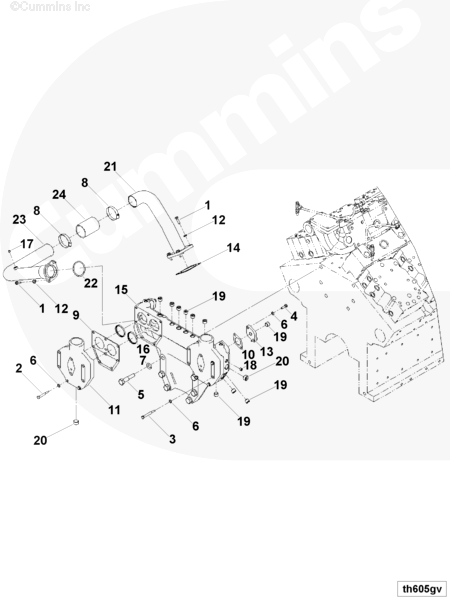

Electronic  Parts Catalog - Option Detail
Cummins  Engines Cummins Engine Parts  GTA38, K38, KTA38GC CM558, QSK38 CM2150 K106, QSK38  CM2150 MCRS, QSK38 CM850 MCRS

3650264

Cart Ref No Part Number Part Description Required Remarks


TH6769 Thermostat Housing
Thermostat Housing...(More)
1 S 103 D Hexagon Head Cap Screw 6

2 S 141 Hexagon Head Cap Screw 4

3 S 163 Hexagon Head Cap Screw 2

4 S 172 B Hexagon Head Cap Screw 4

5 S 195 B Hexagon Head Cap Screw 6

6 S 604 Lock Washer 10

7 S 611 Lock Washer 6

8 43828 D Hose Clamp 2

9 206443 Thermostat Housing Gasket 2

10 207535 Water Transfer Connection Gasket 2

11 3035844 Thermostat Housing 2

12 3036460 Spring Washer 6

13 3037871 Thermostat Housing Cover 2

14 3050944 Flange Gasket 1

15 3627808 Thermostat Housing Support 1

16 3627961 Thermostat Seal 4

17 3628604 Pipe Plug 2

18 3628605 Pipe Plug 2

19 3628606 Pipe Plug 11

20 3628607 Pipe Plug 4

21 3635513 Water Bypass Tube 1

22 3647993 O-Ring Seal 1

23 3650264 Water Transfer Tube 1

24 4007416 Plain Hose 1


SHIPMENT CHARACTERISTICS
Length * Width * Height 38cm*7cm*42cm
Weight 2.06kg


Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
