Cummins / Cummins Parts / Alternator, Starter Motor, Turbocharger / Hot Selling Cummins QSK19 Engine Parts Turbocharger Kit 4956104 2843378

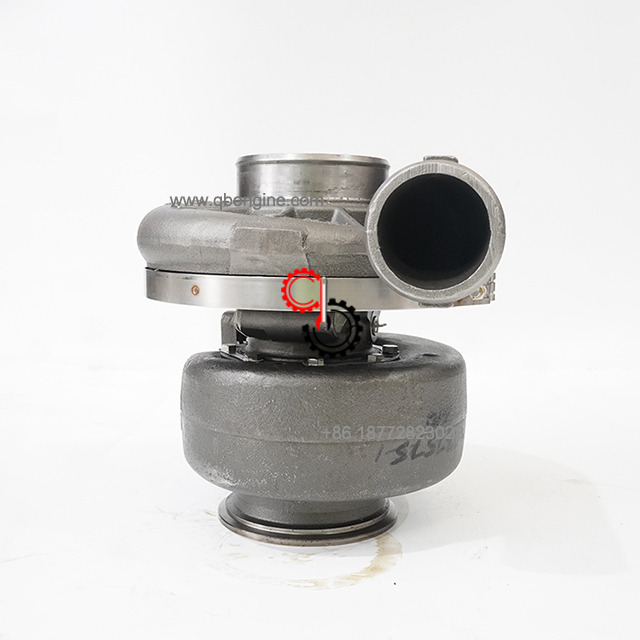

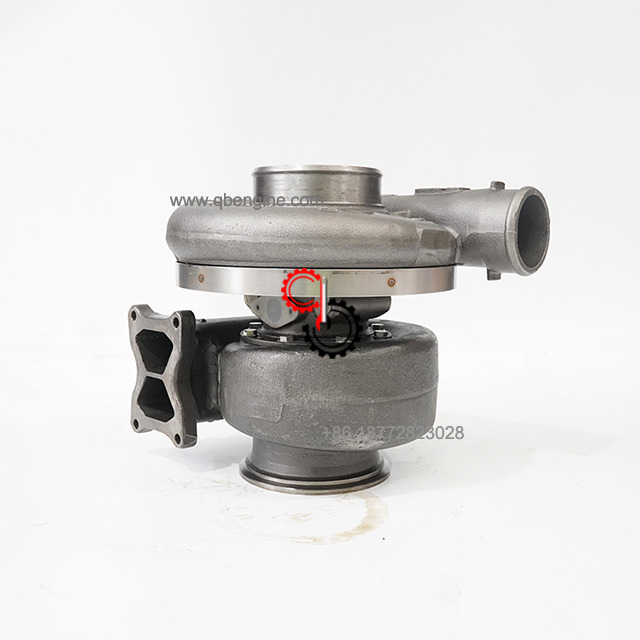

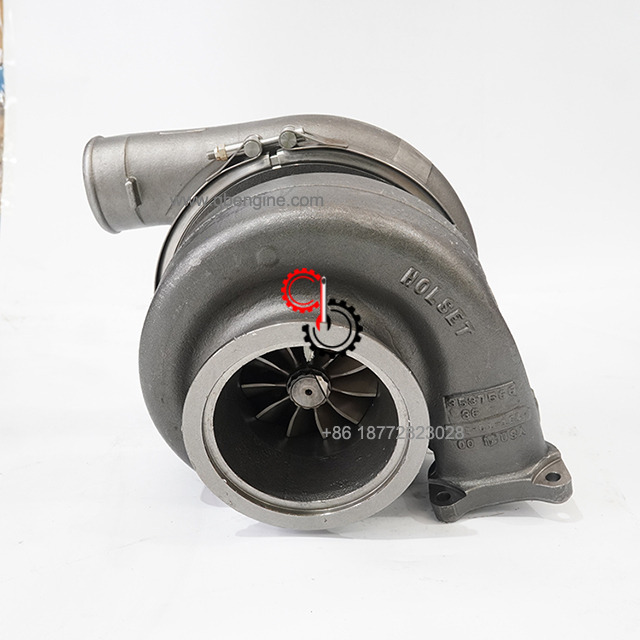

Hot Selling Cummins QSK19 Engine Parts Turbocharger Kit 4956104 2843378
Hot Selling Cummins QSK19 Engine Parts Turbocharger Kit 4956104 2843378 Hot Selling Cummins QSK19 Engine Parts Turbocharger Kit 4956104 2843378
Hot Selling Cummins QSK19 Engine Parts Turbocharger Kit 4956104 2843378 Hot Selling Cummins QSK19 Engine Parts Turbocharger Kit 4956104 2843378
Hot Selling Cummins QSK19 Engine Parts Turbocharger Kit 4956104 2843378 Hot Selling Cummins QSK19 Engine Parts Turbocharger Kit 4956104 2843378
Hot Selling Cummins QSK19 Engine Parts Turbocharger Kit 4956104 2843378 Hot Selling Cummins QSK19 Engine Parts Turbocharger Kit 4956104 2843378

loading

Hot Selling Cummins QSK19 Engine Parts Turbocharger Kit 4956104 2843378

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Cummins QSK19 Turbocharger Kit  4956104 2843378

  • QSK19

  • Cummins

  • 4956104 2843378

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins QSK19 Turbocharger Kit  4956104 2843378 In Stock

Electronic   Parts Catalog - Option Detail
Cummins   Engines K19, KTA19 G CMEICS K123, KTA19GC, KTA19GC CM558, QSK19 CM2150 MCRS, QSK19 CM2350 K105, QSK19 CM500, QSK19 CM850 MCRS, QSK19G

4956104

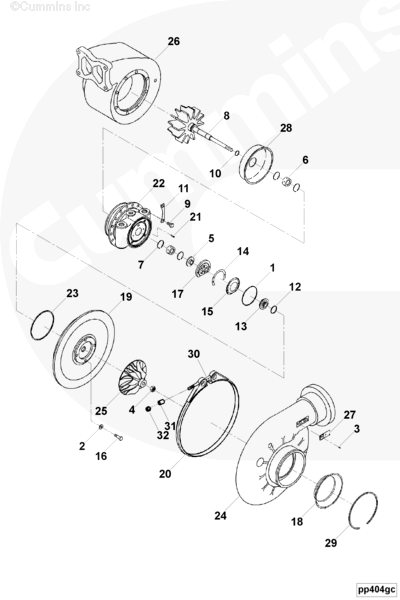

Ref No Part Number Part Description Required Remarks

PP4765-02 Turbocharger
Turbocharger

4956104 Turbocharger Kit 1 Recon Equivalent 4956104 NX

2843378 Turbocharger 1 Serviced as 4956104
1 3502449 Rectangular Ring Seal 1
2 3504967 Plain Washer 4 Holset Part Sold Only In Kits
3 3519163 Drive Screw 2
4 3519535 Lock Nut 1 M11 x 1.00
5 3591522 Thrust Collar 1
6 3598528 Turbocharger Bearing 2
7 3519641 Retaining Ring 4
8 3536155 Shaft Wheel Rotor 1
9 3598923 Hexagon Head Set Screw 8
10 3521442 Split Ring Seal 1
11 3522904 Lock Plate 4
12 3523412 Split Ring Seal 1
13 3523980 Oil Slinger 1
14 3524418 Shim 1
15 3524419 Oil Baffle 1
16 3590377 Socket Head Cap Screw 4
17 3591532 Turbocharger Thrust Bearing 1
18 3537916 Turbocharger Noise Baffle 1
19 2839161 Turbocharger Diffuser 1
20 3590386 V Band Clamp 1
21 3522597 Roll Pin 2
22 3536589 Turbocharger Bearing Housing 1
23 3534405 Rectangular Ring Seal 1
24 3590545 Compressor Housing 1
25 2836604 Turbocharger Compressor Impeller 1
26 3537575 Turbine Housing 1
27 3527619 Dataplate 1
28 3536588 Turbocharger Heat Shield 1
29 3537301 Retaining Ring 1
30 3590435 Socket Head Cap Screw 1
31 3590445 Mounting Spacer 1
32 3590444 Lock Nut 1


SHIPMENT CHARACTERISTICS
Length * Width * Height 42cm*41cm*40cm
Weight 60KG


Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
