Cummins / Cummins Parts / Electronic Control Module (ECM), Sensor, Wiring Harness / Hot Selling Cummins Engine Spare Parts Pressure Sensor QSK 3408549 5594386
Hot Selling Cummins Engine Spare Parts Pressure Sensor QSK 3408549 5594386
Hot Selling Cummins Engine Spare Parts Pressure Sensor QSK 3408549 5594386 Hot Selling Cummins Engine Spare Parts Pressure Sensor QSK 3408549 5594386
Hot Selling Cummins Engine Spare Parts Pressure Sensor QSK 3408549 5594386 Hot Selling Cummins Engine Spare Parts Pressure Sensor QSK 3408549 5594386
Hot Selling Cummins Engine Spare Parts Pressure Sensor QSK 3408549 5594386 Hot Selling Cummins Engine Spare Parts Pressure Sensor QSK 3408549 5594386

loading

Hot Selling Cummins Engine Spare Parts Pressure Sensor QSK 3408549 5594386

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

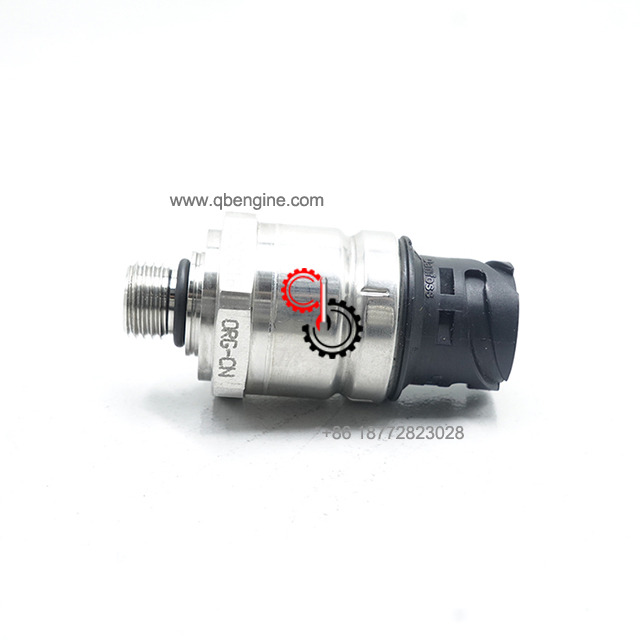

Cummins QSK Pressure Sensor 3408549 5594386

  • QSK

  • Cummins

  • 3408549 5594386

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins QSK Pressure Sensor 3408549 5594386 In Stock

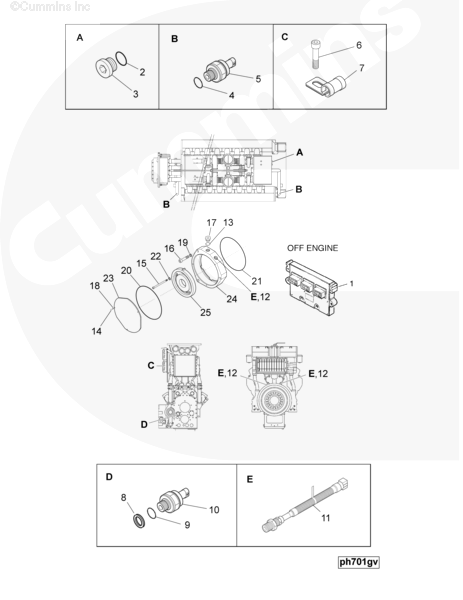

Electronic  Parts Catalog - Option Detail
Cummins Engines QSV91G

3408549

Ref No Part Number Part Description Required Remarks

PH7716-04 Engine Control Module
Module, Engine Control...(More)
1 4094942 Electronic Control Module 1

3089567 Threaded Plug 1
2 3679139 O-Ring Seal 1
3 3089568 Threaded Plug 1 M16 X 1.50 X 13

3408549 Pressure Sensor 2 Fuel
4 3330202 O-Ring Seal 1
5 3408550 Pressure Sensor 1
6 4011424 Clip 2
7 3336458 Socket Head Cap Screw 2
8 3337633 Sealing Washer 1

3408587 Pressure Sensor 1 Oil.
9 3330202 O-Ring Seal 1
10 3408588 Pressure Sensor 1
11 3408471 Speed Sensor 3 Flywheel
12 3408526 Wiring Harness 3

3429330 Assembly Housing Camshaft Sensor 1
13 3336407 Sealing Washer 1
14 3336452 Socket Head Cap Screw 3
15 3336457 Socket Head Cap Screw 3
16 3336504 Socket Head Cap Screw 3
17 3336635 Threaded Plug 1
18 3420854 Spring Washer 3
19 3420898 Spring Washer 3
20 3421055 O-Ring Seal 1
21 3422552 O-Ring Seal 1
22 3422553 Spring Washer 3
23 3424824 Position Sensor Cover 1
24 3424825 Sensor Housing 1
25 3429299 Actuator Disc 1

3104795 Electrical Connector Adapter 2 For use only when replacing




3330157 with 3408549 See note

3104791 Sensor Adapter 2 For use only when replacing

SHIPMENT CHARACTERISTICS
Length * Width * Height 8cm*4cm*4cm
Weight 0.13KG


Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
