Cummins / Cummins Parts / Piston, Cylinder Liner, Connecting Rod, Bearing, Bushing / High Strength Cummins M11 Heat Resistant Piston 4004758 4059900 Engine Piston
High Strength Cummins M11 Heat Resistant Piston 4004758 4059900 Engine Piston
High Strength Cummins M11 Heat Resistant Piston 4004758 4059900 Engine Piston High Strength Cummins M11 Heat Resistant Piston 4004758 4059900 Engine Piston
High Strength Cummins M11 Heat Resistant Piston 4004758 4059900 Engine Piston High Strength Cummins M11 Heat Resistant Piston 4004758 4059900 Engine Piston
High Strength Cummins M11 Heat Resistant Piston 4004758 4059900 Engine Piston High Strength Cummins M11 Heat Resistant Piston 4004758 4059900 Engine Piston

loading

High Strength Cummins M11 Heat Resistant Piston 4004758 4059900 Engine Piston

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Cummins M11 Piston 4004758 4059900

  • M11

  • Cummins

  • 4004758 4059900

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins M11 Piston 4004758 4059900 In Stock

Electronic Parts Catalog - Option Detail
Cummins Engines ISM CM570, ISM CM570/870, ISM CM875, ISM CM876, ISM CM876 E, ISM11 CM876 M103, ISM11 CM876 SN, M11 CELECT, M11 CELECT PLUS, M11 MECHANICAL, QSM11 CM570, QSM11 CM876

4004758

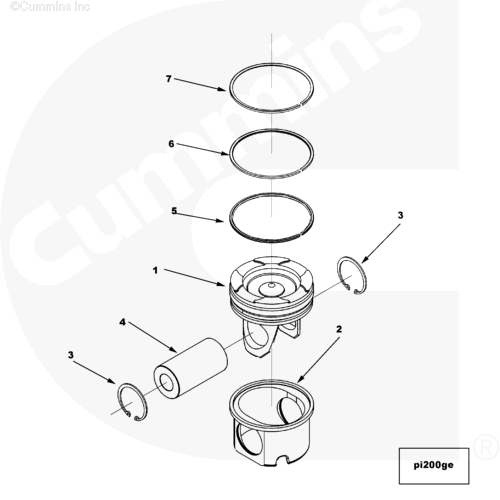

Ref No Part Number Part Description Required Remarks

PP2503-06 Engine Piston Kit


4089481 Engine Piston Kit 6

4004758 Piston , Engine Top Level Assembly 1
1 4004757 Piston Top 1
2 4070653 Piston Skirt 1
3 3016652 Retaining Ring 2
4 4083244 Piston Pin 1

3803977 Piston Ring Set 6
5 3102367 Oil Piston Ring 1 Oil Ring
6 3899413 Compression Piston Ring 1 2nd Ring
7 3893752 Compression Piston Ring 1 Top Ring

4025162 Cylinder Kit 6

3080760 Cylinder Liner 1

3047188 Rectangular Ring Seal 1

4059902 Piston Top 1

4070653 Piston Skirt 1

4083244 Piston Pin 1

3016652 Retaining Ring 2

3893752 Compression Piston Ring 1 Top Ring

3899413 Compression Piston Ring 1 2nd Ring

3102367 Oil Piston Ring 1 Oil Ring

SHIPMENT CHARACTERISTICS
Length * Width * Height 19cm*15cm*14cm
Weight 3.2KG


Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
