Cummins / Cummins Parts / Alternator, Starter Motor, Turbocharger / High Quality Diesel Cummins QSL9 Engine Parts VGT Turbocharger 4352232 3789609 3789643
High Quality Diesel Cummins QSL9 Engine Parts VGT Turbocharger 4352232 3789609 3789643
High Quality Diesel Cummins QSL9 Engine Parts VGT Turbocharger 4352232 3789609 3789643 High Quality Diesel Cummins QSL9 Engine Parts VGT Turbocharger 4352232 3789609 3789643
High Quality Diesel Cummins QSL9 Engine Parts VGT Turbocharger 4352232 3789609 3789643 High Quality Diesel Cummins QSL9 Engine Parts VGT Turbocharger 4352232 3789609 3789643
High Quality Diesel Cummins QSL9 Engine Parts VGT Turbocharger 4352232 3789609 3789643 High Quality Diesel Cummins QSL9 Engine Parts VGT Turbocharger 4352232 3789609 3789643
High Quality Diesel Cummins QSL9 Engine Parts VGT Turbocharger 4352232 3789609 3789643 High Quality Diesel Cummins QSL9 Engine Parts VGT Turbocharger 4352232 3789609 3789643

loading

High Quality Diesel Cummins QSL9 Engine Parts VGT Turbocharger 4352232 3789609 3789643

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

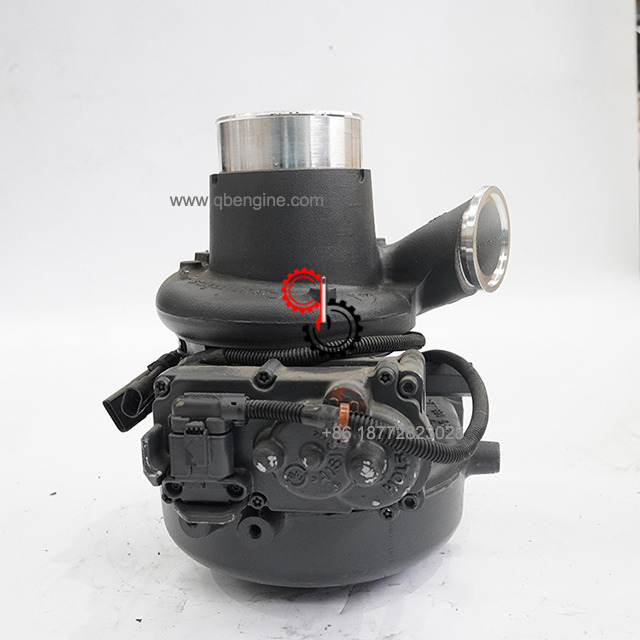

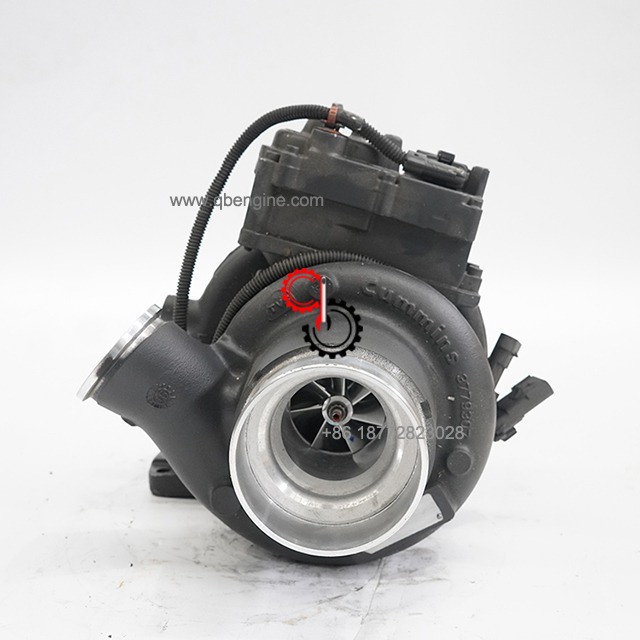

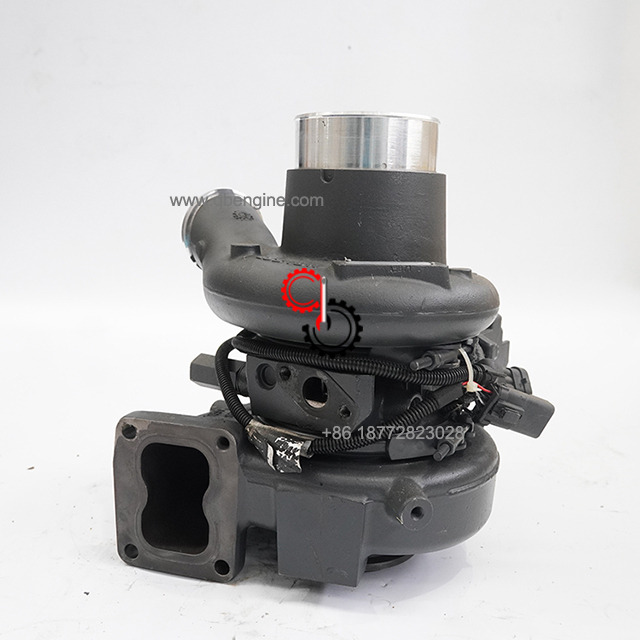

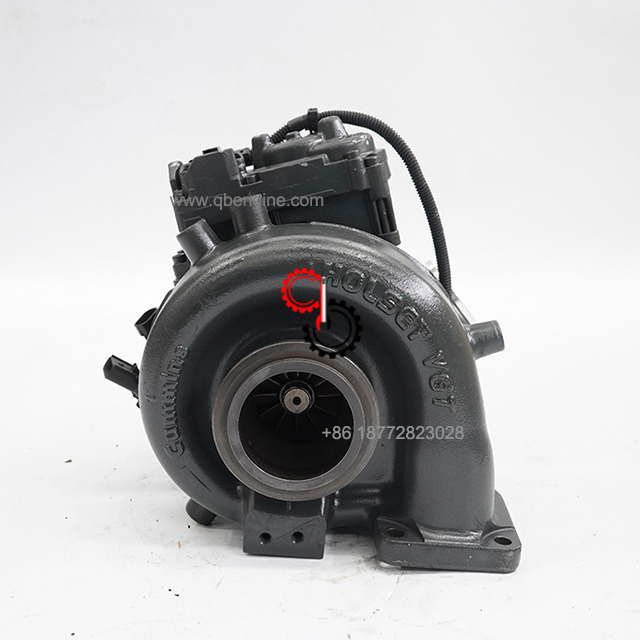

Cummins QSL9 VGT Turbocharger 4352232 3789609 3789643

  • QSL9

  • Cummins

  • 4352232 3789609 3789643

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins  QSL9 VGT Turbocharger 4352232 3789609 3789643 In Stock

Electronic   Parts Catalog - Option Detail
Cummins   Engines 6C8.3, C GAS PLUS CM556, G8.3, G8.3 CM558, GTA8.3 CM558, ISC CM2150, ISC CM554, ISC CM850, ISC8.3 CM2250, ISC8.3 G CM2180 C101, ISL CM2150, ISL CM554, ISL CM850, ISL G CM2180, ISL8.9 CM2150 L110, ISL8.9 CM2880 L112, ISL9 CM2150 SN, ISL9 CM2250, ISL9 CM2350 L101, ISL9 CM2350 L111, ISLE4 CM850, L GAS PLUS CM556, L8.9, L8.9 L121, L8.9G CMOH2.0 L125B, L9 CM2350 L116B, L9 CM2350 L119B, L9 CM2350 L120C, L9 CM2350 L123B, L9 CM2670 L128B, L9.3 L105, L9.5 L117, L9N CM2380 L124B, QSC8.3 CM2250, QSC8.3 CM2880 C102, QSC8.3 CM554, QSC8.3 CM850(CM2850), QSL9 CM2250, QSL9 CM2250 L115, QSL9 CM2350 L102, QSL9 CM2350 L107, QSL9 CM2350 L118, QSL9 CM2350 L122, QSL9 CM554, QSL9 CM850(CM2850), QSL9 G CM558, QSL9 M CM2250 L106, QSL9.3 CM2880 L113

4352232

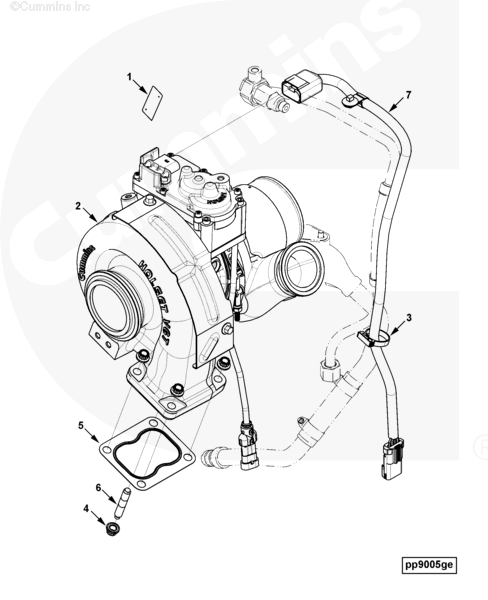

Ref No Part Number Part Description Required Remarks

PP90263-02 Turbocharger
Turbocharger






3789643 Turbocharger 1
1 3527619 Dataplate 1
2 3789609 Turbocharger 1
3 3969959 Wire Retaining Clip 1
4 5263462 Twelve Point Nut 4
5 5263924 Turbocharger Gasket 1
6 5286984 Double End Collar Stud 1
7 5341385 Wiring Harness 1

4352232 Turbocharger Kit A/R

3678603 O-Ring Seal 1

3678912 O-Ring Seal 1 M14

3789643 Turbocharger 1

3789609 Turbocharger 1

3883284 O-Ring Seal 1

4931365 Oil Drain Gasket 1

5263924 Turbocharger Gasket 1

4032806 Turbocharger Sensor Kit A/R

2839964 Turbocharger Speed Sensor 1 Serviced As 4032806.

3527184 Hexagon Flange Head Cap Screw 1

3965616 Wire Retaining Clip 2

4034175 Turbocharger Electric Actuator Kit A/R

3784300 Turbocharger Electric Actuator 1

4034136 Turbocharger Actuator Kit 1

3089392 O-Ring Seal 1

3678912 O-Ring Seal 2 M14

3684284 Sealing Washer 3

4030901 Timing Pin 1

4031373 Grease 1

4031417 Wire Tie Clamp 4

4041397 Socket Head Cap Screw 2

4041398 Socket Head Cap Screw 2

4042648 Guide Pin 2

4045389 Turbocharger Gasket 1

4045390 Turbocharger Gasket 1


SHIPMENT CHARACTERISTICS
Length * Width * Height 15.25cm*15.5cm*16.75cm
Weight 52KG


Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
