Cummins / Cummins Parts / Alternator, Starter Motor, Turbocharger / High Quality Cummins Turbocharger 3801613 3522865 Diesel Engine Spare Parts

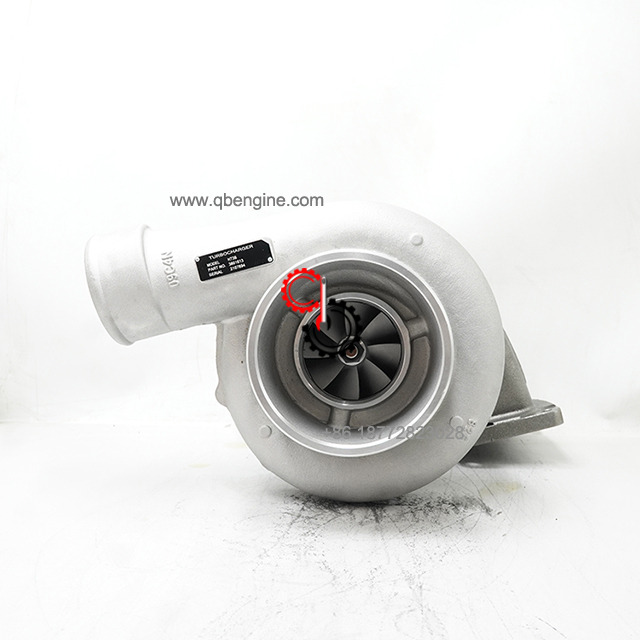

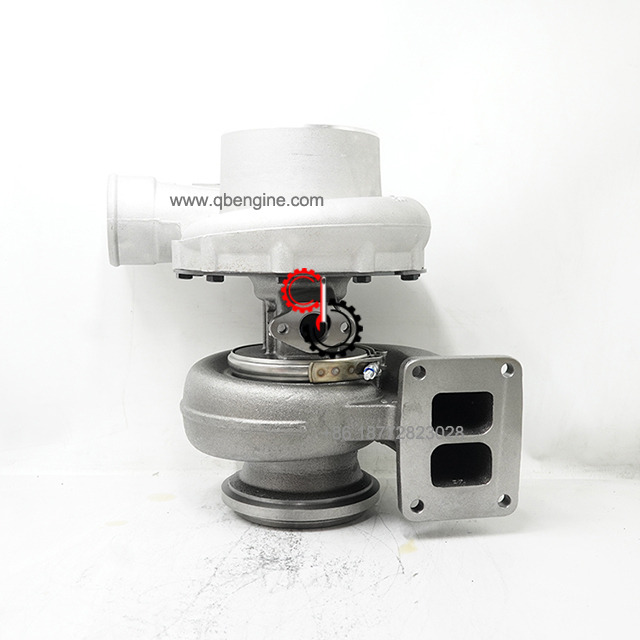

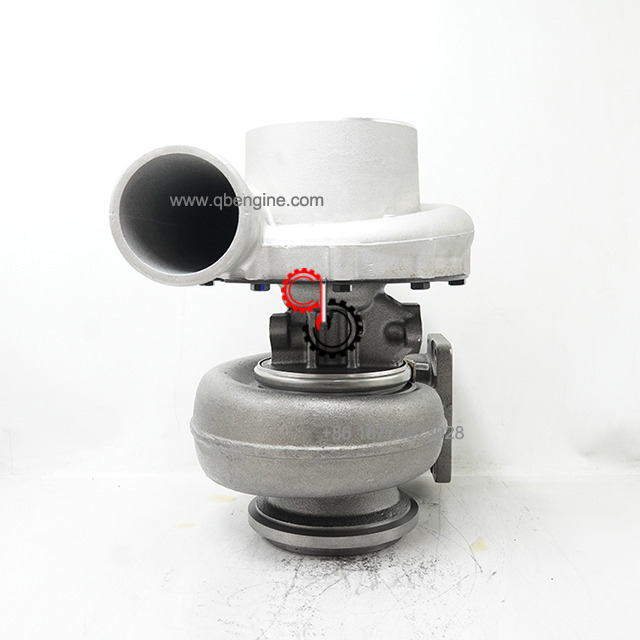

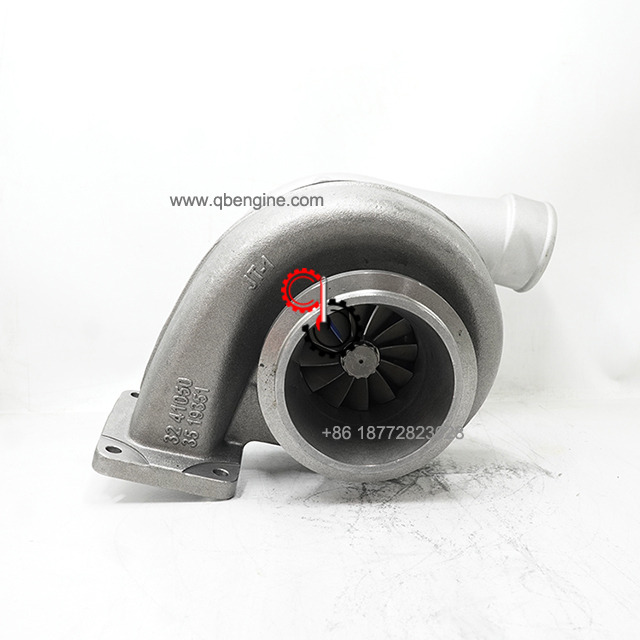

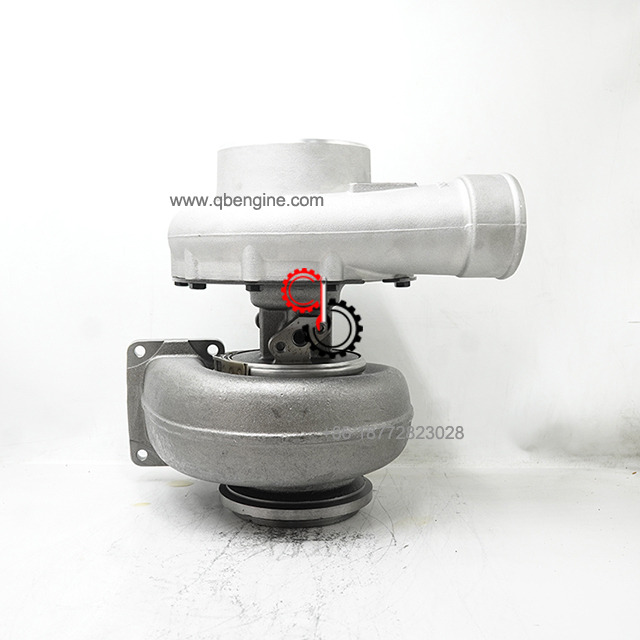

High Quality Cummins Turbocharger 3801613 3522865 Diesel Engine Spare Parts
High Quality Cummins Turbocharger 3801613 3522865 Diesel Engine Spare Parts High Quality Cummins Turbocharger 3801613 3522865 Diesel Engine Spare Parts
High Quality Cummins Turbocharger 3801613 3522865 Diesel Engine Spare Parts High Quality Cummins Turbocharger 3801613 3522865 Diesel Engine Spare Parts
High Quality Cummins Turbocharger 3801613 3522865 Diesel Engine Spare Parts High Quality Cummins Turbocharger 3801613 3522865 Diesel Engine Spare Parts
High Quality Cummins Turbocharger 3801613 3522865 Diesel Engine Spare Parts High Quality Cummins Turbocharger 3801613 3522865 Diesel Engine Spare Parts
High Quality Cummins Turbocharger 3801613 3522865 Diesel Engine Spare Parts High Quality Cummins Turbocharger 3801613 3522865 Diesel Engine Spare Parts

loading

High Quality Cummins Turbocharger 3801613 3522865 Diesel Engine Spare Parts

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Cummins Turbocharger 3801613 3522865

  • Original

  • Cummins

  • 3801613 3522865

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins Turbocharger 3801613 3522865 In Stock

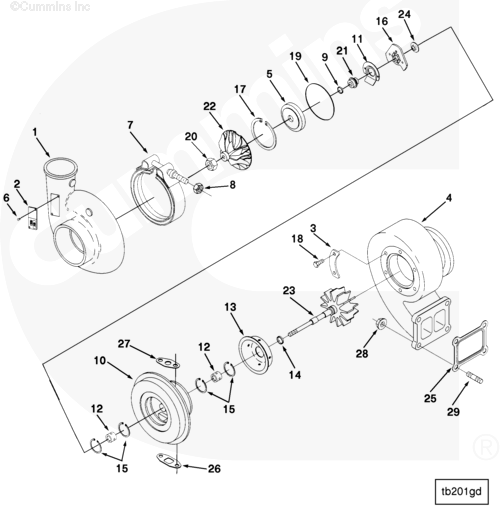

Electronic  Parts Catalog - Option Detail
Cummins  Engines Cummins Engine Parts  NH/NT 855, NT495, NT743, NTA855 N106

3803710 3533557

Ref No Part Number Part Description Required Remarks

PP1409 Turbocharger
For NTA-855-C engines....(More)

3801613 Turbocharger Kit 1 Recon equivalent 3801613 RX
1 201048 Connection Gasket 1
2 190849 Exhaust Collector Gasket 1
3 3037537 O-Ring Seal 1

3522865 Turbocharger 1
4 3519155 Turbocharger Heat Shield 1
5 3522416 Turbocharger Bearing Housing 1
6 3756135 Roll Pin 2
7 3519351 Turbine Housing 1
8 3520981 Clamping Plate 2
9 3529372 Regular Hexagon Nut 1 1/4 - 28 UNF
10 3519471 Lock Nut 1 7/16 - 20 UNF
11 3519489 Turbocharger Compressor Impeller 1
12 3521441 Split Ring Seal 2
13 3522075 Shaft And Wheel 1
14 3521080 Compressor Housing 1
15 3609510
4
16 3521442 Split Ring Seal 1
18 3718373 Retaining Ring 1
19 3521440 Thrust Collar 1
20 3803430 Kits , V-Band Clamp 1
21 3722366 Turbocharger Bearing 2
22 3723863 Retaining Ring 1
23 3519401 Oil Baffle 1
24 3526653 Captive Washer Cap Screw 10 5/16 - 18 x 5/8 in.
25 3759618 Oil Seal Plate 1
26 3525562 Dataplate 1
27 3751948 O-Ring Seal 1
28 3519290 Turbocharger Thrust Bearing 1
29 3757753 Oil Control Sleeve 1
30 3521439 Oil Slinger 1
31 201049 Connection Gasket 1

SHIPMENT CHARACTERISTICS
Length * Width * Height 34cm*29cm*33cm
Weight 24.085KG


Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
