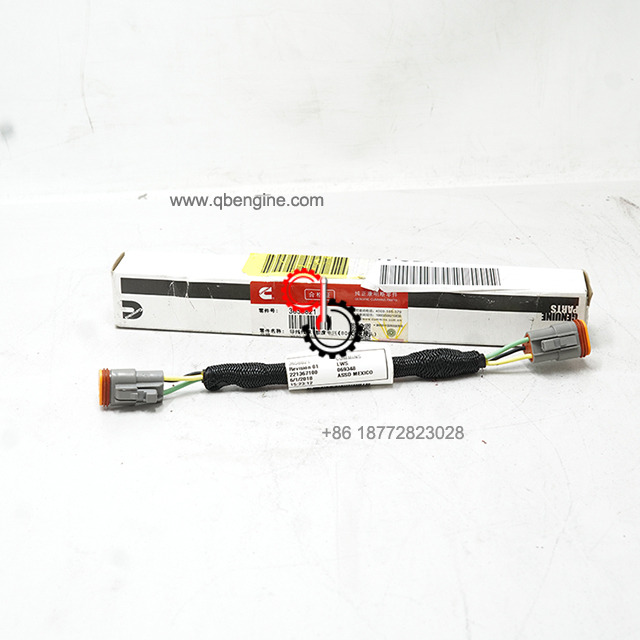

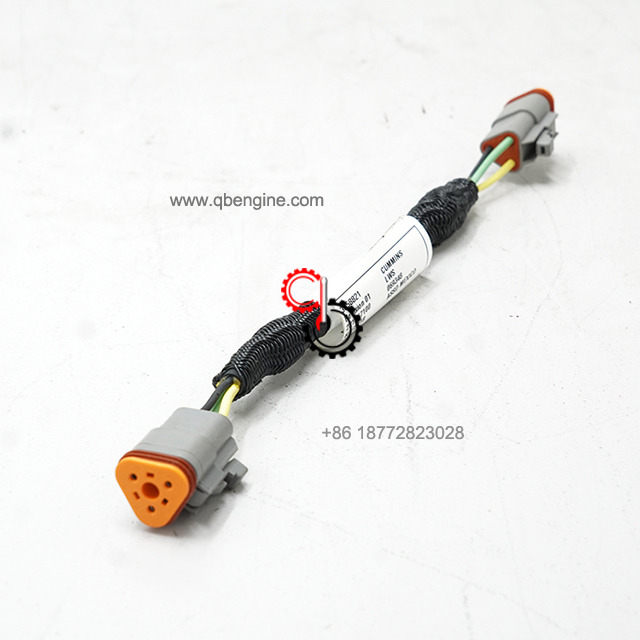

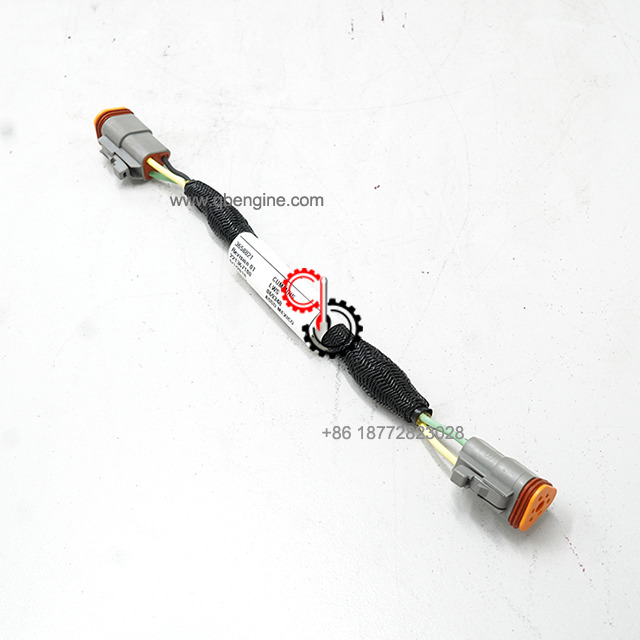

Cummins QSK19 Electronic Control Module Wiring Harness 3658821

  • QSK19

  • Cummins

  • 3658821

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins QSK19 Electronic Control Module Wiring Harness 3658821 In Stock

Electronic  Parts Catalog - Option Detail
Cummins  Engines Cummins Engine Parts  K19, KTA19 G CMEICS K123, KTA19GC, KTA19GC CM558, QSK19  CM2150 MCRS, QSK19 CM2350 K105, QSK19 CM500, QSK19 CM850  MCRS, QSK19G

3658821

Cart Ref No Part Number Part Description Required Remarks

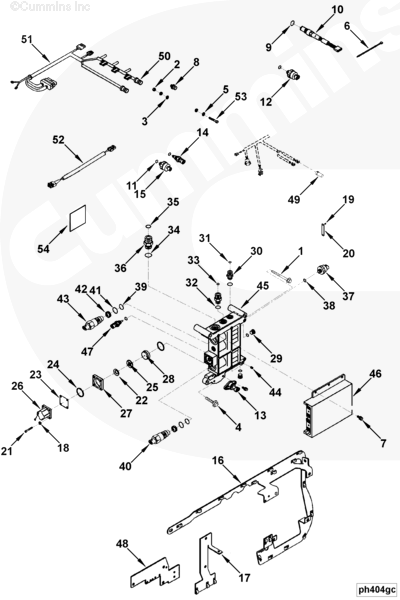

PH4709-34 Engine Control Module
Engine Control Module
1 3042890 Captive Washer Cap Screw 2 3/8 - 16 x 4 in.
2 S 224 Heavy Hexagon Nut 2 1/4 - 20 UNC.
3 S 600 Lock Washer 4 1/4 in.
4 3035624 Captive Washer Cap Screw 2 3/8 - 16 X 1 1/2 in.
5 127018 Plain Washer 6 1/4 in.
6 3018920 Wire Tie Clamp 26

7 3066310 Captive Washer Cap Screw 6 1/4 - 20 X 3/4"
8 3071225 Captive Washer Cap Screw 1 3/8 - 16 x 3/4 in.
9 3046201 O-Ring Seal 1

10 2872362 Position Sensor 1 Cam or Crank

3408517 Pressure Sensor 1 Oil
11 3330159 O-Ring Seal 1

12 3408518 Pressure Sensor 1

13 4902720 Pressure Sensor 1 Ambient Air

3085185 Temperature Sensor 1 Intake Manifold
14 3085198 Temperature Sensor 1 Intake Manifold
38 3037537 O-Ring Seal 1


3408515 Pressure Sensor 1 Intake Manifold
11 3330159 O-Ring Seal 1

15 3408516 Pressure Sensor 1

16 4009596 Wiring Retainer Bracket 1

17 4009598 Wiring Retainer Bracket 1


3417079 Electronic Control Pressure Valve 1

18 S 607 Lock Washer 4 #10
19 S 2286 Drive Screw 2 3/16 in.
20 105375 Nameplate 1

21 118226 Socket Head Cap Screw 4 #10 - 24 x 1 1/4 in.
22 129768 Valve Spring 1

23 129839 Shut-Off Valve Shield 1

24 129888 Rectangular Ring Seal 2

25 196057 Valve Disc 1

26 3021420 Solenoid 1

27 4088863 Actuator Housing 1

28 4088274 Actuator Disc 1


3037536 Threaded Plug 3 9/16 - 18 UNF
29 3040813 Threaded Plug 1 9/16 - 18 UNF
38 3037537 O-Ring Seal 1


3081952 Male Union 1

30 3085825 Male Union 1

31 3922794 O-Ring Seal 1


3081953 Male Union 1

31 3922794 O-Ring Seal 1

32 3040817 O-Ring Seal 1

33 3085826 Male Union 1


3081956 Male Union 1

34 3046943 O-Ring Seal 1

35 3076102 O-Ring Seal 1

36 3085829 Male Union 1


3408519 Pressure Sensor 2 Fuel
37 3408520 Pressure Sensor 1

11 3330159 O-Ring Seal 1


3330600 Electronic Fuel Control Actuator 1

39 3042542 O-Ring Seal 1

40 3331029 Electronic Fuel Control Actuator 1

41 3865398 O-Ring Seal 1

42 3867393 Filter Screen 1


3330601 Electronic Fuel Control Actuator 1

39 3042542 O-Ring Seal 1

41 3865398 O-Ring Seal 1

42 3867393 Filter Screen 1

43 3331030 Electronic Fuel Control Actuator 1


3867715 Control Valve Body 1

44 113759 Threaded Insert 6

45 3867714 Control Valve Body 1

46 4921411 Electronic Control Module 1


3865312 Temperature Sensor 1 Coolant Or Oil *.
38 3037537 O-Ring Seal 1

47 3865323 Temperature Sensor 1 Coolant Or Oil *.
48 3331760 Wiring Retainer Bracket 1


3331774 Electronic Control Module Wiring  Harness 1

49 3613537 Protective Cover 2


3331775 Electronic Control Module Wiring  Harness 1

50 3654215 Protective Cover 2

51 3658928 Electronic Control Module Wiring  Harness 1

52 3658821 Electronic Control Module Wiring  Harness 1

53 S 114 Hexagon Head Cap Screw 4 1/4 - 20 X 3/4 in.
54 3609867 Dataplate 1


SHIPMENT CHARACTERISTICS
Length * Width * Height 3cm*3cm*25cm
Weight 0.045kg
