Cummins KTA50 VGT Turbocharger 4955507 3594161 4044424

  • KTA50

  • Cummins

  • 4955507 3594161 4044424

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins KTA50 VGT Turbocharger 4955507 3594161 4044424 In Stock

Electronic   Parts Catalog - Option Detail
Cummins   Engines G50, K50, K50-DPM, QSK50 CM2150 K107, QSK50 CM2150 MCRS, QSK50 CM2350 K108, QSK50 CM850 MCRS, QSK50 DF CM850/CM2150 MCRS

4955507

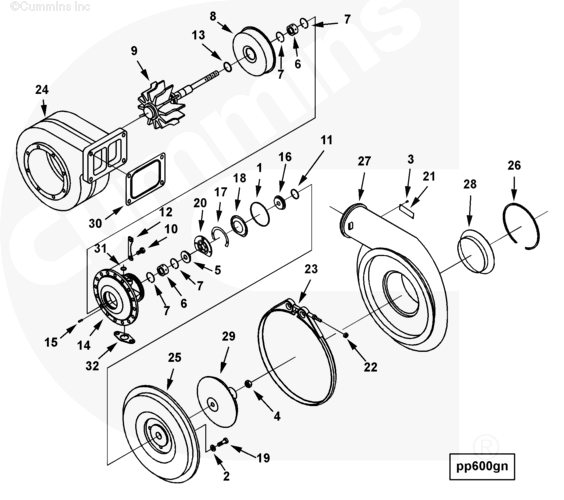

Ref  No+B5:F40 Part Number Part Description Required Remarks

PP2321-03 Turbocharger


4955507 Turbocharger Kit 2

4044424 Turbocharger 1
1 3502449 Rectangular Ring Seal 1
2 3504967 Plain Washer 4 Holset Part Sold Only In Kits
3 3519163 Drive Screw 2
4 3519535 Lock Nut 1 M11 x 1.00
5 3591522 Thrust Collar 1
6 3519627 Turbocharger Bearing 2
7 3519641 Retaining Ring 4
8 3536588 Turbocharger Heat Shield 1
9 3527840 Shaft Wheel Rotor 1
10 3521225 Hexagon Head Set Screw 8 M8 X 1.25 X 16.
11 3521442 Split Ring Seal 1
12 3522904 Lock Plate 4
13 3523412 Split Ring Seal 1
14 3594555 Turbocharger Bearing Housing 1
15 3522597 Roll Pin 2
16 3523980 Oil Slinger 1
17 3524418 Shim 1
18 3524419 Oil Baffle 1
19 3525073 Hexagon Head Set Screw 4 M8 X 1.25 X 25.
20 3536914 Turbocharger Thrust Bearing 1
21 3527619 Dataplate 1
22 3529372 Regular Hexagon Nut 1 1/4 - 28 UNF
23 3528109 V Band Clamp 1
24 4043605 Turbine Housing 1
25 3527104 Turbocharger Diffuser 1
26 3537301 Retaining Ring 1
27 3539268 Compressor Housing 1
28 3539756 Turbocharger Noise Baffle 1
29 3527949 Turbocharger Compressor Impeller 1
30 3630452 Turbocharger Gasket 1
31 3037537 O-Ring Seal 1
32 3519763 Turbocharger Gasket 1


SHIPMENT CHARACTERISTICS
Length * Width * Height 50cm*50cm*54cm
Weight 37KG


Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
