Cummins K50 K38 Oil Pan 3087561 3088852

  • K38 K50

  • Cummins

  • 3087561 3088852

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins K50 K38 Oil Pan 3087561 3088852 In Stock


Electronic  Parts Catalog - Option Detail
Cummins  Engines Cummins Engine Parts  GTA38, K38, KTA38GC CM558, QSK38 CM2150 K106, QSK38  CM2150 MCRS, QSK38 CM850 MCRS

3088852


Ref No

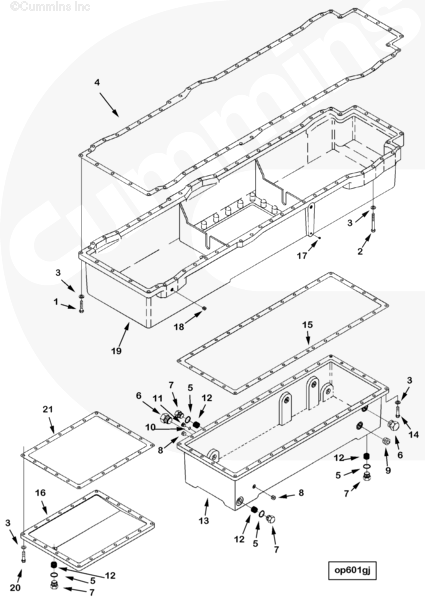

 Part Number Part Description Required Remarks

OP6038-04 Oil Pan
High capacity double deep...(More)
1 106069 Hexagon Head Cap Screw 31 7/16 - 14 X 2 in.
2 108767 Hexagon Head Cap Screw 29 7/16 - 14 X 3 1/2 in.
3 3000082 Plain Washer 118 15/32 in.
4 3043212 Oil Pan Gasket 1
5 67946 Plain Washer 4 1 1/32 in.
6 3032629 Threaded Plug 2 1 5/16 - 12 UNF.
7 3055069 Threaded Plug 4 1 - 18 UNS.
8 3628606 Pipe Plug 2 1/2 - 14.
9 3628608 Pipe Plug 2

3037536 Threaded Plug 1 9/16 - 18 UNF
10 3037537 O-Ring Seal 1
11 3040813 Threaded Plug 1 9/16 - 18 UNF

3088852 Oil Pan 1
12 200845 Threaded Insert 4
13 3631719 Oil Pan 1
14 102020 Hexagon Head Cap Screw 36 7/16 - 14 X 2 1/4 in.
15 3043214 Oil Pan Gasket 1

3028696 Oil Pan Cover 1
16 206099 Oil Pan Cover 1
12 200845 Threaded Insert 1
17 3628604 Pipe Plug 2 1/8 - 27 X 0.3 in.

3630545 Oil Pan Adapter 1
18 3628609 Pipe Plug 1 3/8-18.
19 3630262 Oil Pan Adapter 1
20 S 140 Hexagon Head Cap Screw 22 7/16 - 14 x 1 3/4 in.
21 3043211 Oil Pan Gasket 1



SHIPMENT CHARACTERISTICS
Length * Width * Height 124cm*50cm*45cm
Weight 50KG

Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
