Cummins / Cummins Parts / Piston, Cylinder Liner, Connecting Rod, Bearing, Bushing / High-Quality Cummins K19 K38 K50 Engine Piston Kit 5473168 3631245 3096681

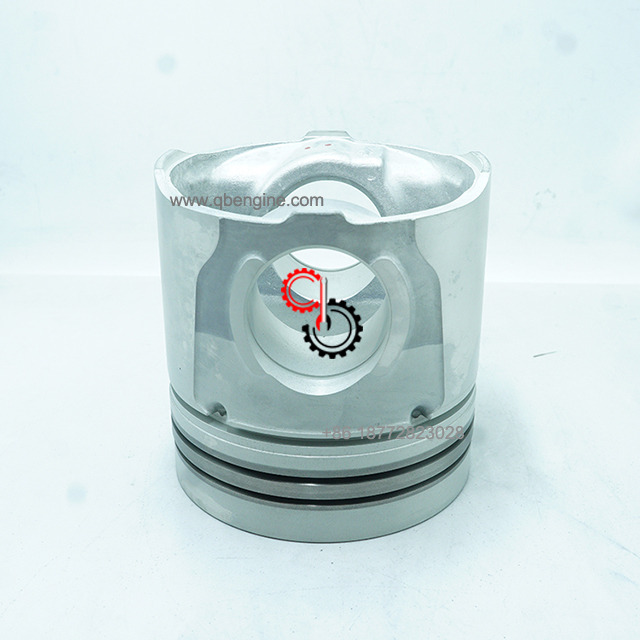

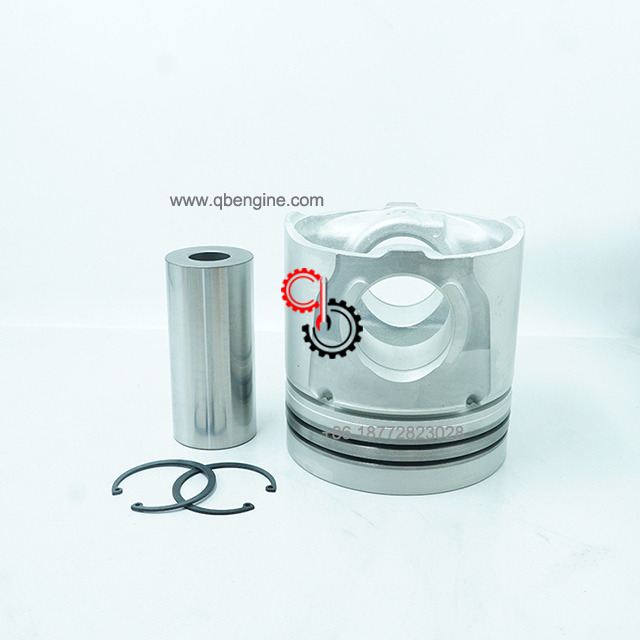

High-Quality Cummins K19 K38 K50 Engine Piston Kit 5473168 3631245 3096681
High-Quality Cummins K19 K38 K50 Engine Piston Kit 5473168 3631245 3096681 High-Quality Cummins K19 K38 K50 Engine Piston Kit 5473168 3631245 3096681
High-Quality Cummins K19 K38 K50 Engine Piston Kit 5473168 3631245 3096681 High-Quality Cummins K19 K38 K50 Engine Piston Kit 5473168 3631245 3096681
High-Quality Cummins K19 K38 K50 Engine Piston Kit 5473168 3631245 3096681 High-Quality Cummins K19 K38 K50 Engine Piston Kit 5473168 3631245 3096681

loading

High-Quality Cummins K19 K38 K50 Engine Piston Kit 5473168 3631245 3096681

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Cummins K19 K38 K50 Engine Piston Kit 5473168 3631245 3096681

  • K19 K38 K50

  • Cummins

  • 5473168 3631245 3096681

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins K19 K38 K50 Engine Piston Kit 5473168 3631245 3096681 In Stock

Electronic  Parts Catalog - Option Detail
Cummins  Engines K19, KTA19 G CMEICS K123, KTA19GC, KTA19GC CM558, QSK19 CM2150 MCRS, QSK19 CM2350 K105, QSK19 CM500, QSK19 CM850 MCRS, QSK19G

3631245

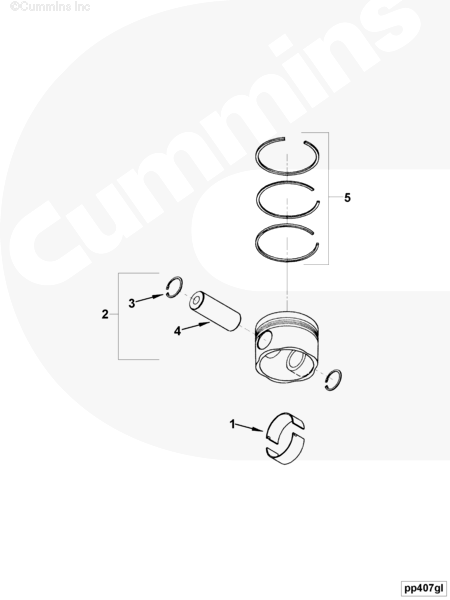

Ref No Part Number Part Description Required Remarks

PP4127-06 Connecting Rod And Piston
Connecting Rod and Piston

4927301 Piston Assembly 6
1 205840 Connecting Rod Bearing 2 Standard
2 3631245 Piston Engine Kit 1

3096681 Engine Piston 1 Serviced as 3631245
3 205269 Retaining Ring 2

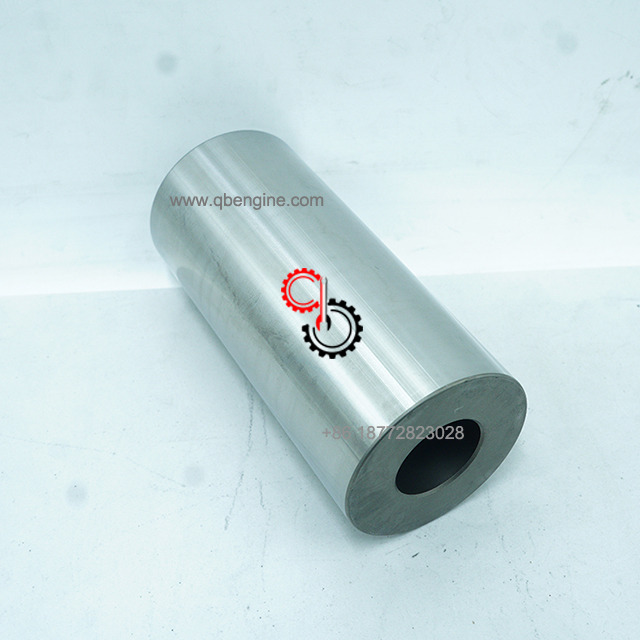

4 4095009 Piston Pin 1
5 4955975 Piston Ring Set 1

3090460 Compression Piston Ring 1

4924584 Compression Piston Ring 1 Sold In Higher Level Assy/Kit

3090450 Oil Piston Ring 1
1 205841 Connecting Rod Bearing A/R 0.25 mm Oversize
1 205842 Connecting Rod Bearing A/R 0.50 mm Oversize
1 205843 Connecting Rod Bearing A/R 0.75 mm Oversize

Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.



Previous:
Next:
5473168 3631245 3096681 piston qsk19 piston kit engine piston cummins engine piston K38 engine piston
