Cummins / Cummins Parts / Fuel Pump, Injector, Manifold, Injection Pump, Pressure Sensor / High Quality Cummins Engine Parts Fuel Pump Solenoid 3021420
High Quality Cummins Engine Parts Fuel Pump Solenoid 3021420
High Quality Cummins Engine Parts Fuel Pump Solenoid 3021420 High Quality Cummins Engine Parts Fuel Pump Solenoid 3021420
High Quality Cummins Engine Parts Fuel Pump Solenoid 3021420 High Quality Cummins Engine Parts Fuel Pump Solenoid 3021420
High Quality Cummins Engine Parts Fuel Pump Solenoid 3021420 High Quality Cummins Engine Parts Fuel Pump Solenoid 3021420

loading

High Quality Cummins Engine Parts Fuel Pump Solenoid 3021420

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

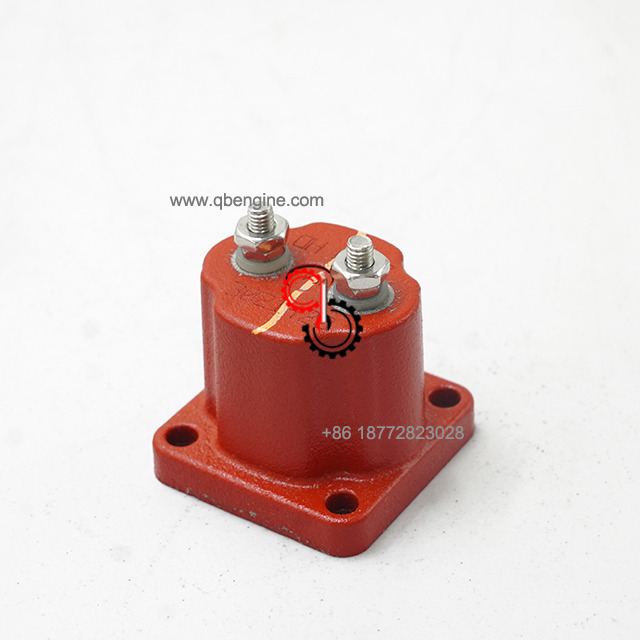

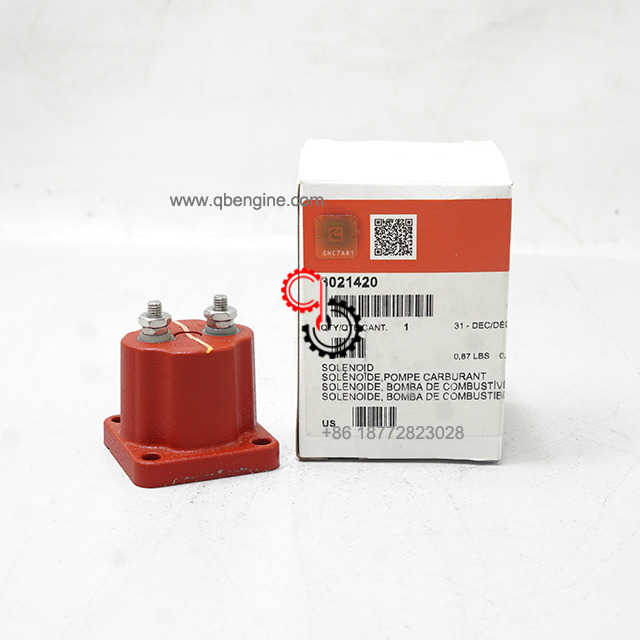

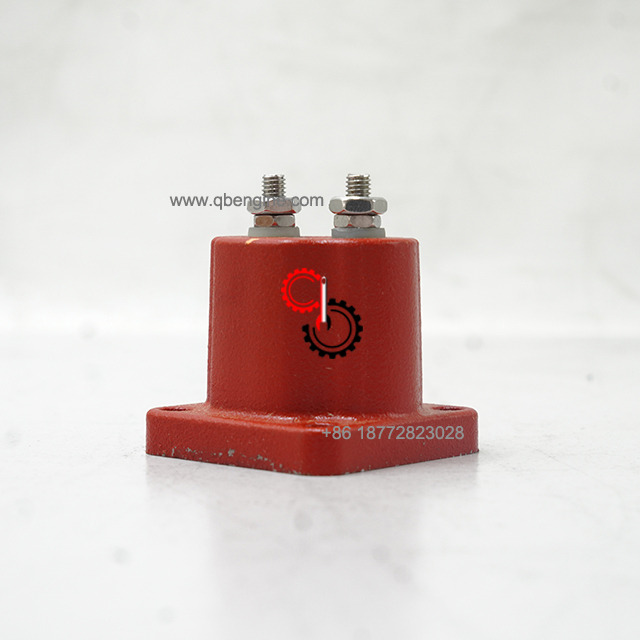

Cummins Fuel Pump Solenoid 3021420

  • Original

  • Cummins

  • 3021420

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins Fuel Pump Solenoid 3021420 In Stock

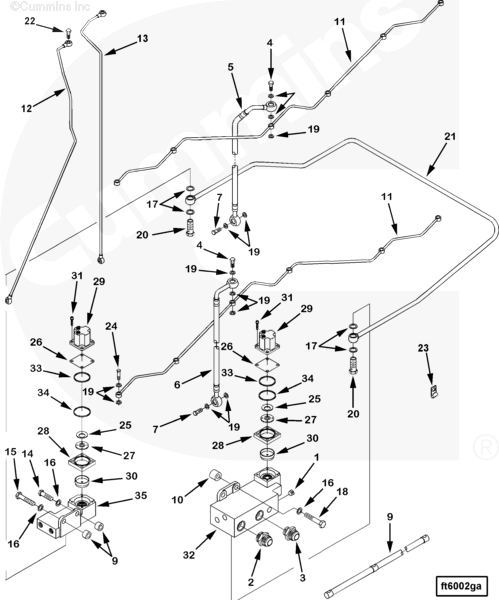

Electronic  Parts Catalog - Option Detail
Cummins  Engines QST30 CM2350  T101, QST30 CM552, QST30 CM850

3021420

Ref No

 Part Number Part Description Required Remarks

FT5713-05 Fuel Plumbing

1 3008466 Pipe Plug 1 1/4 NPT.
2 3059278 Male Union 1

3046943 O-Ring Seal 1

3100531 Male Union 1
3 3080295 Male Union 1

3046943 O-Ring Seal 1

3100545 Male Union 1
4 3092032 Check Valve 2
5 3092094 Flexible Hose 1
6 3092089 Flexible Hose 1
7 3092103 Banjo Connector Screw 3 M8 x 1.25 x 27
8 3092118 Flexible Hose 1
9 3092334 Mounting Spacer 2
10 3092339 Mounting Spacer 2
11 3093039 Fuel Drain Tube 2
12 3094821 Fuel Drain Tube 1
13 3094822 Fuel Drain Tube 1
14 3093744 Hexagon Head Cap Screw 1 M10 x 1.50 x 35
15 3093746 Hexagon Head Cap Screw 1 M10 x 1.50 x 50
16 3093799 Plain Washer 4 11mm
17 3918192 Sealing Washer 12 M14
18 3093889 Hexagon Head Cap Screw 2 M10 x 1.50 x 55
19 3918188 Sealing Washer 36
20 3094020 Banjo Connector Screw 1 27mm
21 3094146 Fuel Drain Tube 1
22 3092545 Banjo Connector Screw 2 M8 x 1.25 x 27
23 3600861 Clip 2
24 3094188 Banjo Connector Screw 13 M8 x 1.25 x 18

3094676 Manifold , Fuel ( Top Level  Assembly ) 1
25 129768 Valve Spring 1
26 129839 Shut-Off Valve Shield 1
27 196057 Valve Disc 1
28 3034451 Actuator Housing 1
29 3021420 Solenoid 1
30 3056009 Actuator Disc 1
31 3065944 Captive Washer Cap Screw 4 #10 - 24 X 1 Inch.
32 3094153 Fuel Manifold 1
33 3094572 Rectangular Ring Seal 1
34 3094667 Rectangular Ring Seal 1

3094678 Manifold , Fuel ( Top Level  Assembly ) 1
35 3094154 Fuel Manifold 1


SHIPMENT CHARACTERISTICS
Length * Width * Height 6cm*6cm*7cm
Weight 0.302KG


Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
